Ergotron StyleView 97-702 Assembly Instructions

For service og garanti, besøg: www.ergotron.com/warranty

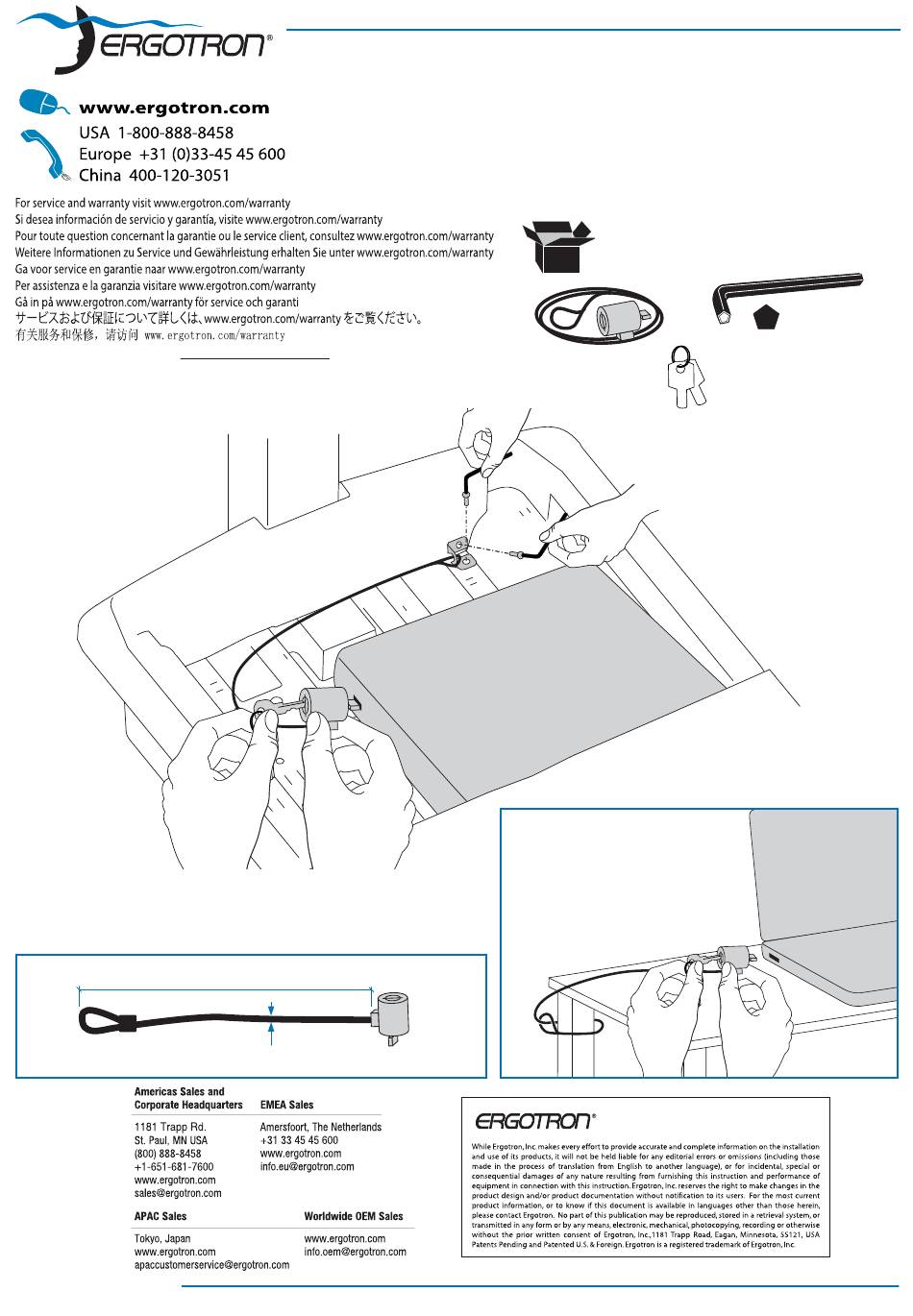

Installation for StyleView Carts with Lock Attach Bracket installed.
a. Remove bracket.
b. Attach cable loop.
c. Reattach bracket.
d. Attach lock to computer.
23" (585 mm)
888-97-260-W-01 rev. D • 11/12
0.25" (6 mm)

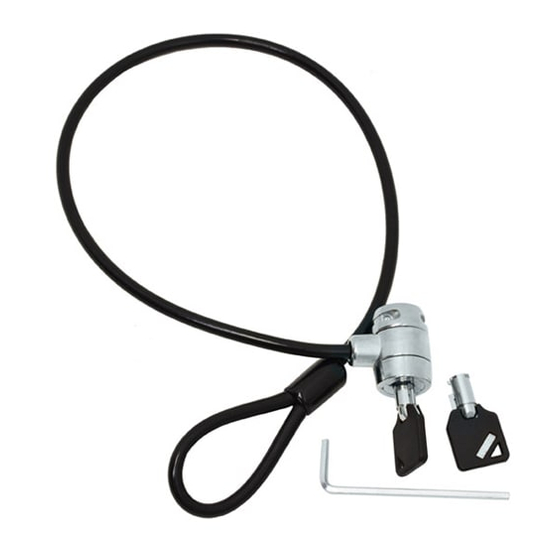

StyleView® CPU Lock
1x
1x
Generic installation for
other confi gurations.
a. Wrap cable around secure location.
b. Thread Lock through loop.
c. Attach lock to computer.
© 2015 Ergotron, Inc. All rights reserved.
ASSEMBLY INSTRUCTIONS
Instrucciones de instalación
Notice d'assemblage
Montageanleitungen
Installatie instructies
Manuali d'Istruzione
取扱い説明書
安装说明
설치 안내
MONTERINGSVEJLEDNING
1x
4mm
5-sided Security Wrench 5-sided Security Wrench
Llave de seguridad pentagonal Llave de seguridad pentagonal
Clef Allen Clef Allen
Fünfkant-Inbusschlüssel Fünfkant-Inbusschlüssel
5-kantige veiligheidssleutel 5-kantige veiligheidssleutel
Chiave pentagonale di sicurezza Chiave pentagonale di sicurezza
5角固定用レンチ 5角固定用レンチ
5角安全扳手 5角安全扳手
5면 Security Wrench(안전 렌치) 5면 Security Wrench(안전 렌치)
5-sidet sikkerhedsskruenøgle
1/2
