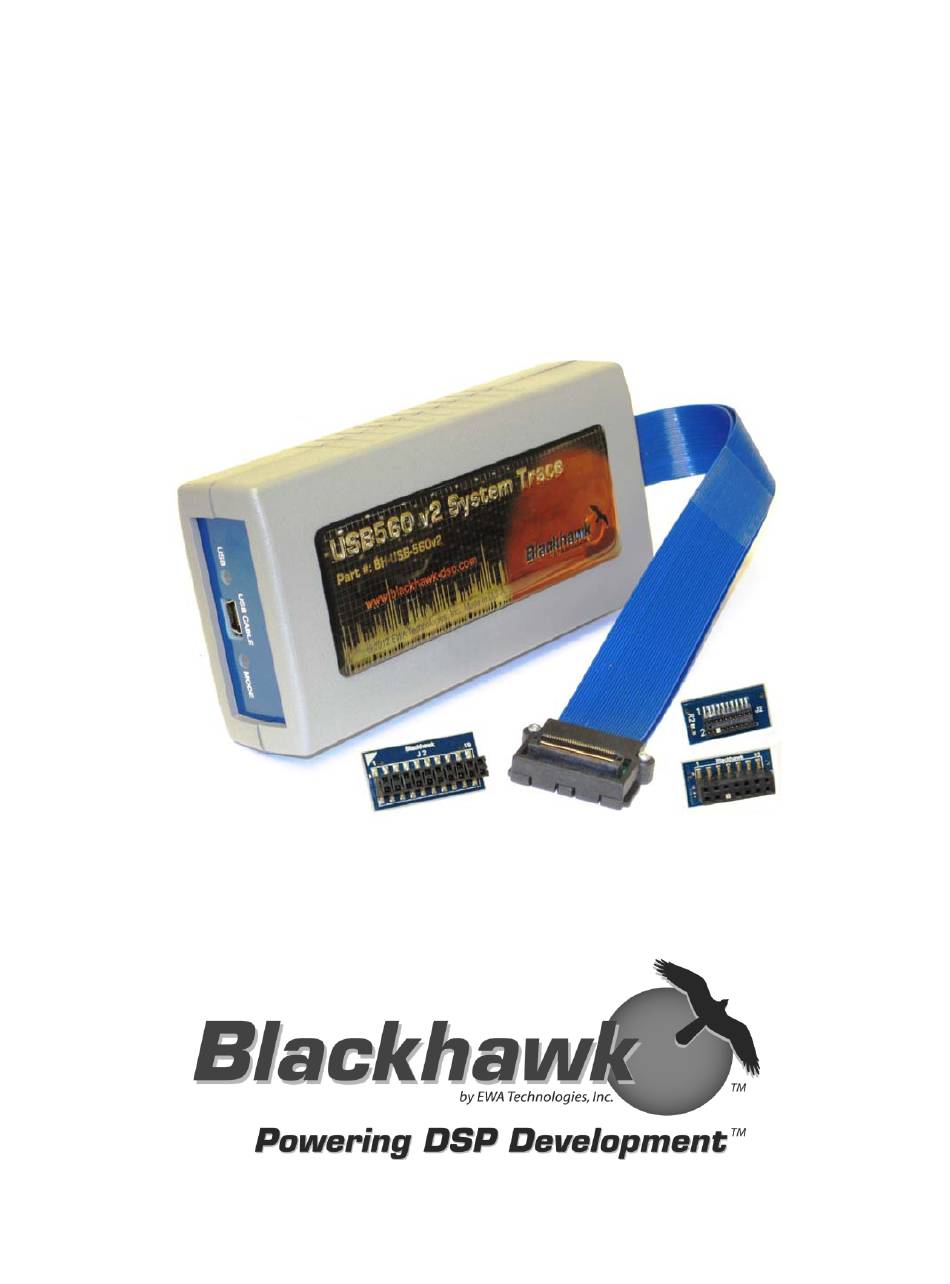

- Page 1 Blackhawk USB560v2 Operating Mode Details and Instructions...
-
Page 2: Table Of Contents
Blackhawk USB560v2 Operating Mode Details and Instructions Table of Contents Table of Figures ............................2 Blackhawk USB560v2 Operating Mode Details and Instructions ..............3 Operating Modes ............................3 Normal Mode ............................3 Safe Mode ..............................4 Unknown Mode ............................4 Updating the Blackhawk USB560v2 Firmware.................... -
Page 3: Blackhawk Usb560V2 Operating Mode Details And Instructions
Normal Mode The typical mode of operation (or Normal Mode) of the USB560v2 is the default boot mode. This will allow the USB560v2 to enumerate with Microsoft Windows or be detected on Linux systems. In this mode all JTAG functions are enabled. -
Page 4: Safe Mode
Figure 2 - Safe Mode LED States Unknown Mode While the USB560v2 has two modes, it is possible for the device to enter an unknown mode. Should this happen, it is recommended that you contact Blackhawk technical support or try to take the steps to place the unit into safe mode and update the unit’s firmware. -
Page 5: Updating The Blackhawk Usb560V2 Firmware
It is important that you select the proper firmware file or the device may be rendered useless. The proper file will contain USB560v2 in the name. Do not use the xds560 or mezzanine firmware files. Once the correct file is selected the update process will take over and update the USB560v2. -
Page 6: Figure 4- Bh560V2Config Utility Icon
Blackhawk USB560v2 Operating Mode Details and Instructions Figure 4- Bh560v2Config Utility Icon Figure 5- Bh560v2 Config Utility, Update Button January 2014 EWA Technologies, Inc. Page 6 of 9... -
Page 7: Placing The Usb560V2 Into Normal Mode
(see Figure 3). The USB560v2 will be identified by the id 0b1e:0009. 2. Start the Bh560v2 Configuration utility. The icon (Figure 4) should be located on the desktop. Once started the utility should identify the USB560v2. Highlight the entry in the devices section at the top (refer to Figure 6). -
Page 8: Placing The Usb560V2 Into Safe Mode
1. To enter safe mode, the USB560v2 will need to be power cycled at least 10 times. To do this, you should first connect the USB cable to the USB560v2. -
Page 9: Figure 7 - Blackhawk Control Panel And Shortcut Icon, Windows
Blackhawk USB560v2 Operating Mode Details and Instructions Figure 7 - Blackhawk Control Panel and Shortcut Icon, Windows January 2014 EWA Technologies, Inc. Page 9 of 9...
