Lewmar 68001027 Instruction

SX Deck Switch Instruction
To be retained in the Owners manual
Switches should be fitted in accordance with these instructions
AND Lewmar instruction manual for the equipment being operated
This deck switch is for use with Lewmar 12V & 24V DC product control systems
Applicable to Deck Switch Models:
Black

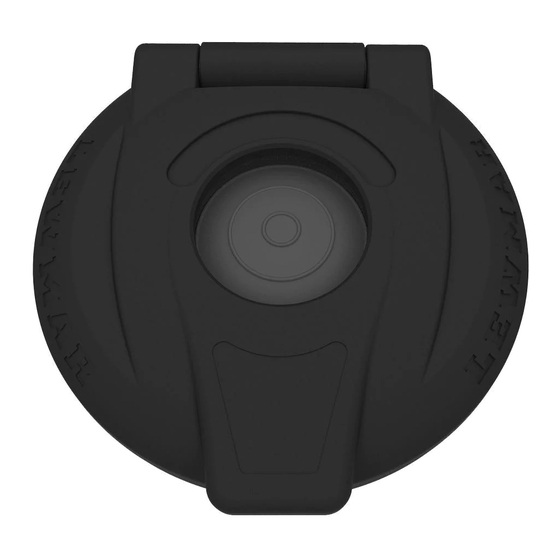

68001027 SX Deck Switch Open
68001031 SX Deck Switch Closed

Specification

Operating Voltage Range:
Max switching current:
Switch Type:
Wire Size:
Switch contact life
Ingress Protection
Wiring diagram
9v to 28v DC Only.
5 Amps resistive, 2.75 A Inductive (L/R 0.026)
Normally-Open Momentary contact
1mm²
100,000 operations
IP67 above deck (subject to installation)
IP65 below deck (subject to installation)
White
Switch
White
Switch
Stainless
68001026 SX Deck Switch Open
68001030 SX Deck Switch Closed
Switch contact
momentary
normally - open
5A Max
