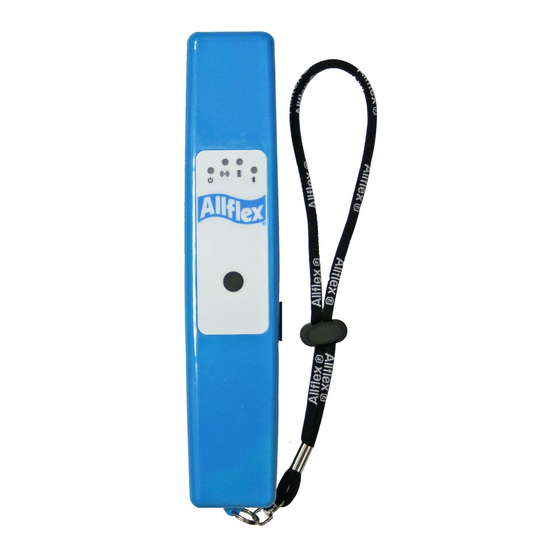

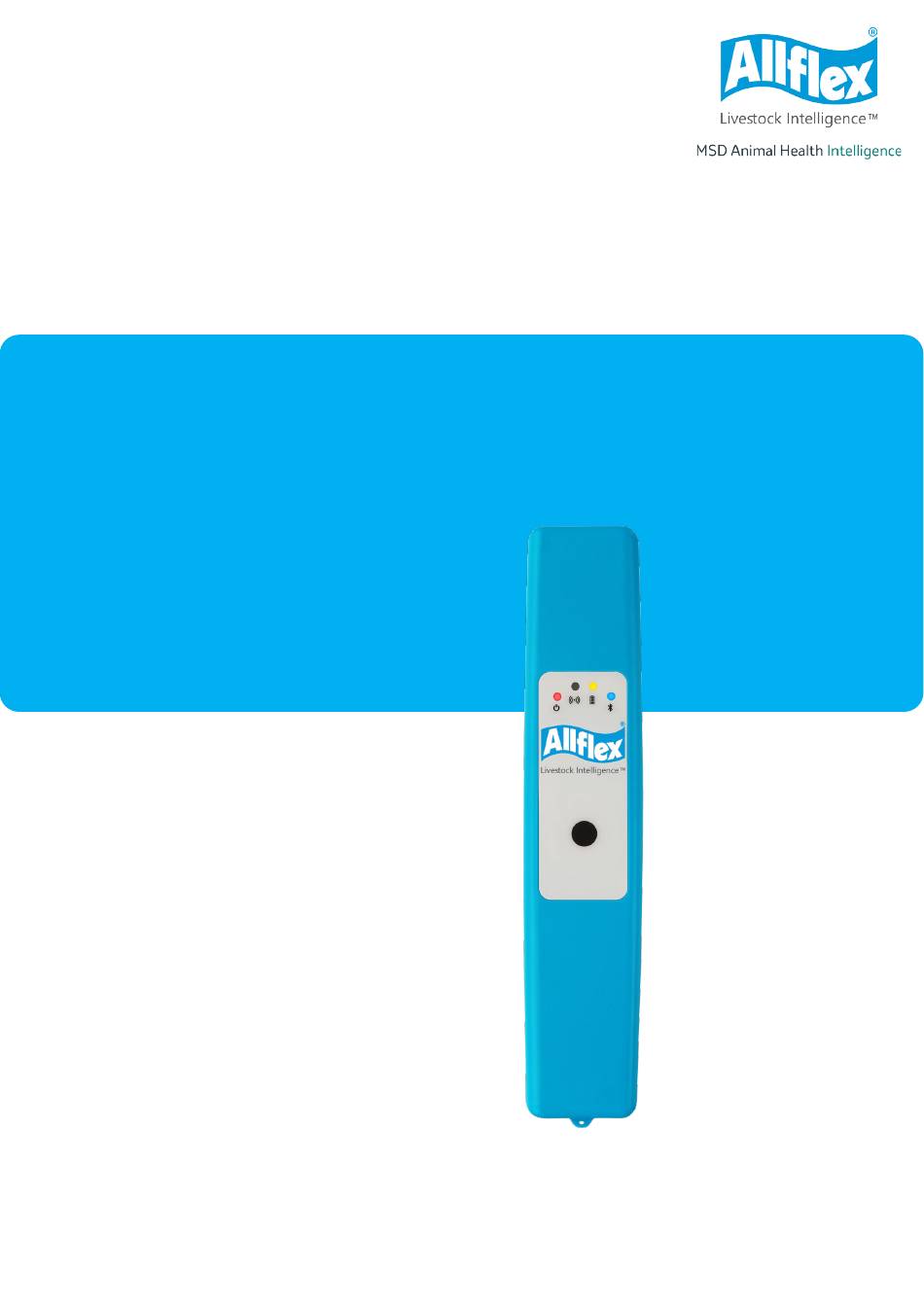

- Page 1 Allflex LPR Reader User Guide Firmware v1.11 and higher...
- Page 2 ©Copyright SCR by Allflex Europe SAS 2020 This manual is copyrighted. All rights are reserved, and no part of this publication may be reproduced or transmitted in any form or by any means without prior written consent. Disclaimer The information in this manual was accurate and reliable at the time of its release.
-
Page 3: Table Of Contents
Allflex LPR User Guide Overview ........................1 Operating the Reader ....................1 Getting Started ......................1 Switch On/Off Instructions ................... 1 Reading a Transponder....................1 Using Bluetooth Interface ..................2 Connection to iPhone/iPad Devices ................3 Connection to Android Devices ..................3 Connection in Master Mode .................. -
Page 4: Overview
Allflex LPR User Guide 1 Overview 2 Operating the Reader 2.1 Getting Started Before using the reader, it is necessary to first fully charge the battery pack as described in battery management section. 2.2 Switch On/Off Instructions Press and release the “SCAN” button once to turn the reader on. At start-up, the Red light •... -
Page 5: Using Bluetooth Interface
(blinking blue led, audible warning). • The default passkey of the built-in Bluetooth ® is 1234. • To pair your smartphone to your LPR reader, go into Bluetooth settings of your smartphone and turn on Bluetooth if currently disabled. -
Page 6: Connection To Iphone/Ipad Devices
Allflex LPR User Guide 3.1 Connection to iPhone/iPad Devices Make sure your reader is on and tap on LPR Type 1234 Paired 3.2 Connection to Android Devices Make sure your reader is on and tap on LPR Type 1234 Paired 3.3 Connection in Master Mode... -
Page 7: Using Usb Interface
The USB port allows the device to transmit and receive data via a USB connection to your personal computer 1. Before plugging your reader to your computer, first install the LPR PC Software available on your local Allflex website. This will pre-install the LPR USB driver on your computer necessary to connect your reader through USB. -
Page 8: Battery Handling Instructions
For best battery performance, charge unit at least every three months, if reader is unused 6 PC Software The LPR PC Software is available on your local Allflex website. Once downloaded, execute the setup package to install the PC software on your computer. - Page 9 Download reader memory (when feature enabled) • • Set-up an advanced Bluetooth connection (master mode with remote devices discovery) • Change the reader configuration (enable memory, change reader name…) Refer to LPR PC Software user manual for more information (available on your local Allflex website.
-
Page 10: Appendix A: Specifications
Allflex LPR User Guide Appendix A: Specifications All specifications are subject to change without notice. General Operating frequency 134.2 kHz Norms ISO 11784 / 11785 Special feature: Temperature scanning with TS and BT implants between 33°C and 43°C (between 91.4°F and 109.4°F) -
Page 11: Appendix B: Legal Information
Allflex LPR User Guide Appendix B: Legal Information Reader physical integrity The device has been built from rugged and durable materials to withstand use in harsh environments for long periods of time. However, the reader contains electronic components that can be damaged. This damage can adversely affect or stop the reader's operation. The user must avoid striking other surfaces and objects with the device. -
Page 12: Trademarks
Allflex LPR User Guide Please note that the use of this accessory with iPhone or iPad may affect wireless performance. Trademarks Bluetooth ® is a registered trademark of Bluetooth SIG, Inc. Windows is a trademark or registered trademark of Microsoft Corporation in the United States and/or other countries. -
Page 13: Regulatory Compliance
11785: Radio frequency identification of animals -- Technical Concept. Declaration of Conformity ALLFLEX EUROPE S.A.S. hereby declares that the radio equipment type LPR complies with the directive 2014/53/EU. To obtain a copy, contact Allflex and request the ‘AWR250 Declaration of Conformity’...
