Summary of Contents for Synergy Global Technology DL-1002 Series

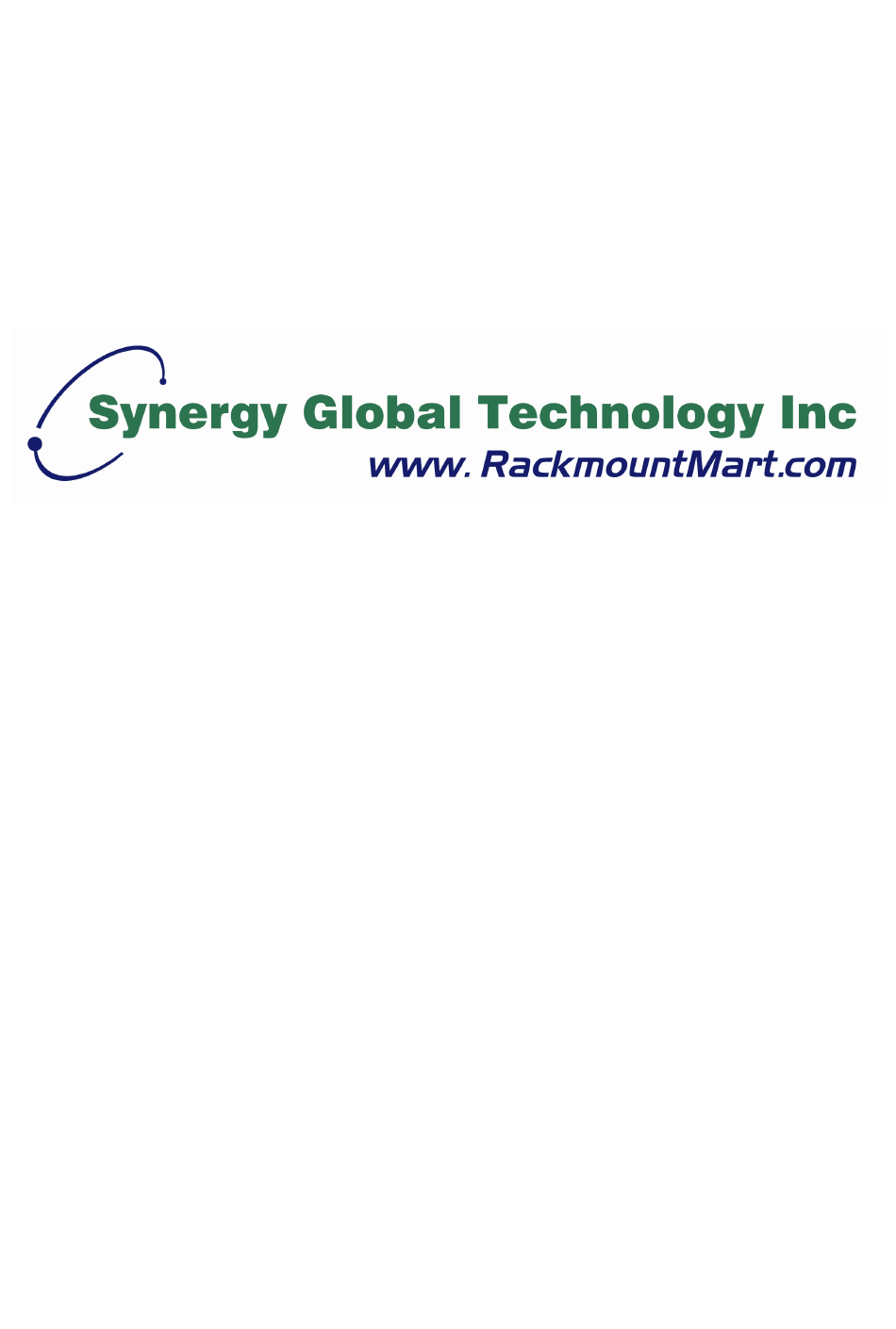

  • Page 1 Toll Free: 1-888-865-6888 Tel: 510-226-8368 Fax: 510-226-8968 Email: sales@RackmountMart.com...
  • Page 2 User Manual Utilities Software DL-1002 Intelligent Cabinet Door Lock Handle...
  • Page 3 Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.

  • Page 4: Table Of Contents

    Content Part I. Hardware < 1.1 > Package Contents < 1.2 > Overall Installation Diagram < 1.3 > DL-1002 Handle Installation ( Single Point / 2-Point Lock ) < 1.4 > Door Sensor Installation ( Inductive Sensor / Mechanical Sensor ) Part II.

  • Page 5: Part I. Hardware

    Part I. Hardware < 1.1 > Package Contents Unpacking The equipment comes with the standard parts shown on the package contents. Check and make sure they are included and in good condition. If anything is missing, or damage, contact the supplier immediately. DL-1002 Package Content - DL-1002 Intelligent handle, pair ( MiFARE / Proximity ) - Y-Power cable x 1...

  • Page 6: Overall Installation Diagram

    < 1.2 > Overall Installation Diagram Rear Door Front Door DL-1002P Proximity DL-1002M MiFARE Intelligent handle Optional door sensor with cable : 2pcs for front & rear door ( 2m ) Power cable ( door section ) : 2pcs for front & rear door ( 2m ) Data input connector ( for handle activation / data input / confi...

  • Page 7: Dl-1002 Handle Installation ( Single Point / 2-Point Lock )

    Part I. Hardware < 1.3 > DL-1002 Handle Installation Installation To achieve the highest level of interoperability offered in the cabinet industry, the DL-1002 handle applies the universal mounting cut-out. It avoids costly and complicated door customization for the Intelligent handle integration. Universal Mounting Cut-out : Unit : mm Cut-out...
  • Page 8 < 1.3 > DL-1002 Handle Installation Installation for Single Point Lock Cabinet door Mount the Intelligent handle to the universal mounting position. 2. Place the handle mounting bracket with M4 x 9mm screw x 2 to secure the handle. 3. Attach the Cam with square hole washer(s) to adjust and to fi...
  • Page 9 Part I. Hardware < 1.3 > DL-1002 Handle Installation Installation for 2-point Lock ( light-duty rod-latch ) Rod latch Cabinet door Mount the Intelligent handle to the universal mounting position. 2. Place the handle mounting bracket with M4 x 9mm screw x 2 to secure the handle. 3.
  • Page 10 < 1.3 > DL-1002 Handle Installation Installation for 2-point lock ( rod control system ) Rod control system >>>>> Orignal handle screws Cabinet door 1. Mount the Intelligent handle to the universal mounting position. 2. Attach the Rod control system to the handle and insert the M5 x 10mm screw x 1 with circle hole washer to secure the position.

  • Page 11: Door Sensor Installation ( Inductive Sensor / Mechanical Sensor )

    Part I. Hardware < 1.4 > Door Sensor Installation Inductive Sensor Optional door sensor is an essential accessories as users can be alerted by visual and audio alarm for unauthorized access. Inductive Door Sensor, pair ( DLS-102 ) Features light weight / adhesive mini size ( 32.5 x 12.2 x 9.2 mm ) no custom cutting required on door Front View...
  • Page 12 < 1.4 > Door Sensor Installation Inductive Sensor Suggested Installation steps sensor position - connect to the handle - guide & fi x the cable with cable clips ( bundle with handle package ) - place the sensor at the top of the door, close to the opening side - adjust the sensor with adhesive tape to ensure the sensing distance between door to frame within 3mm while door in close status Sensor Operation...
  • Page 13 Part I. Hardware < 1.4 > Door Sensor Installation Mechanical Sensor Mechanical Door Sensor ( DLS-101 ) Features low cost / precise cost effi cient integration to new cabinet unit : Front View Top View Side View 9.25 52.0 Steel mounting plate with 2 screw holes Cable connector Press button ( total travel distance : 9.25 mm ( min.
  • Page 14 < 1.4 > Door Sensor Installation Mechanical Sensor Installation steps Suggested - connect to the handle sensor position - place the sensor at the top middle of the door - install the sensor in the custom hole - secure it with bundled mounting screws 6#32x4.5mm x 2 Sensor Operation DOOR CLOSE DOOR OPEN...

  • Page 15: Part Ii. Handle Usage & Operation

    Part II. Handle Usage & Operation < 2.1 > Two Important Notes Handle Sensor Area & KeyCard Mode Sensor area Present the keycard and touch the handle sensor area for 1 to 2 seconds Keycard mode For keycard operation, keep key cylinder always to 12 o’clock direction.
  • Page 16 < 2.1 > Two Important Notes Lock / Unlock the handle by mechanical key Unless the Intelligent handle is defective, lock / unlock the handle by key is NOT recommended Please insert & turn the key with push force Key lock mode Key cylinder to 9 o’clock direction.

  • Page 17: Handle Operation With Door Sensor

    Part II. Handle Usage & Operation < 2.2 > Handle Operation with Door Sensor How to unlock the handle & open the door properly Locked status in Unlocked status in blue green silver white Flashing Flashing Within 10 seconds after >>>...
  • Page 18 < 2.2 > Handle Operation with Door Sensor How to close the door properly Unlocked status in Locked status in silver white blue green Users should : - lift up the handle - close the door - return the handle to park To close the door position properly - the handle will...

  • Page 19: Handle Operation Without Door Sensor

    Part II. Handle Usage & Operation < 2.3 > Handle Operation without Door Sensor How to unlock the handle & open the door properly Locked status in Unlocked status in Locked status in blue green silver white blue green Flashing Flashing Within 4 seconds after >>>...
  • Page 20 < 2.3 > Handle Operation without Door Sensor How to close the door properly Locked status in Unlocked status in Locked status in blue green silver white blue green Flashing Flashing >>> Stop To close the door ( over 4 seconds ) After keycard detection, users should : 1 ) lift up the handle 2 ) close the door...

  • Page 21: Part Iii. Hardware Specifi Cations

    Part III. Hardware Specifi cations Power 100~240VAC, 50 / 60Hz 0.5A via AC / DC cord Item Regulation Approval FCC, CE Operation 0˚ to 50˚C Degree Storage -5˚ to 60 ˚C Degree Relative Humidity 90%, non-condensing Environmental Shock 50G peak acceleration (11 ms, half-sine wave) Vibration 58~100Hz / 0.98G (11ms / cycle) Gross Weight...

  • Page 22: Part Iv. Software Download

    Part IV. Software Download < 4.1 > Software Features & Hardware Requirements Software Features Utilities Max. 500 pairs of handle Max. 50 user card authentication per handle Dual or single card mode authentication** Enable or disable door sensor detection** Detailed user card information Reporting on confi...

  • Page 23: Supported Os Platform & Language

    Part IV. Software Download < 4.2 > Supported OS Platform & Language Supported OS platform & language list : - MS Windows XP Professional with SP3 (32bit, English edition only) - MS Windows 7 Professional with SP1 (32bit & 64bit, English edition only) - MS Windows 8 Professional (32bit &...
  • Page 24 < 4.3 > Utilities software Download & Installation After the handle installation, please take the following steps to install the utilities : 1. Prepare a notebook computer to download the handle setup utilities from the link : ISU-01.msi http://www.rackmountmart.com/downloads.html 2. Double click the ISU-01.msi and follow the instruction to complete the installation.

  • Page 25: Driver Installation For Data Input Cable

    Part IV. Software Download < 4.4 > Driver Installation for Data Input Cable Before initial confi guration for handles, user MUST install the driver for the data input cable ONCE. Please follow 13 steps below to complete the installation. Step 1. Connect the handle to the notebook computer via the handle data input cable ( DLS-201 ).
  • Page 26 < 4.4 > Driver Installation for Data Input Cable Step 3. Right Click the improper installed USB UART driver & Select “ Update Driver Software… “. Step 4. A window pops up & please Select “ Browse my computer for driver software “. Step 5.
  • Page 27 Part IV. Software Download < 4.4 > Driver Installation for Data Input Cable Step 6. Select C:\ > Program Files > InfraSolution S – Setup Utilities > Driver & Click “ OK “ Step 7. Click “ Next “ to install the driver. Step 8.
  • Page 28 < 4.4 > Driver Installation for Data Input Cable Step 10. Right Click “ USB Serial Port “ under “ Other devices “ & Select “ Update Driver Software… ”. Step 11. Select “ Browse my computer for driver software “. Step 12.

  • Page 29: Part V. Software Usage

    Part V. Software Usage < 5.1 > Initial Handle Confi guration After hardware & software installation, please take the following steps to confi gure the handle. ( 1 ) Prepare the notebook computer installed with utilities software ( 2 ) Connect to the handle via the handle data input cable ( DLS-201 ) ( 3 ) Make sure the handle in power ON status ( 4 ) Confi...
  • Page 30 < 5.1 > Initial Handle Confi guration Handle Information In < >, shows the handle ID #, model, card type & the time of last confi guration. Handle Information Page 26 www.RackmountMart.com...
  • Page 31 Part V. Software Usage < 5.1 > Initial Handle Confi guration Handle Location In < >, record the Zone, Rack and Handle position of the handle. Handle Location Door Sensor ( Option ) In < >, enable or disable the door sensor. Default is “ Disable “. Door Sensor Ensure you have ordered door sensors and fi...

  • Page 32: Card Assignment

    < 5.2 > Card Assignment In < >, assign, edit or delete user card. Card Assignment Card Assignment by two methods ( 1 ) Click Card Edit, then direct input the last 8 digits of the card number to the fi eld ( 2 ) Click Card Edit, then present the smartcard to the handle and the last 8 digits of the card number will be input to the fi...

  • Page 33: Export & Import Handle Confi Guration

    Part V. Software Usage < 5.3 > Export & Import Handle Confi guration In < > and < >, provide a quick way to confi gure other handles with same or similar confi guration Export Import on < Card Assignment >, < Door Sensor >, < Card Access Mode >. Steps for Export ( 1 ) Click “...
  • Page 34 < 5.3 > Export & Import Handle Confi guration Steps for Import ( 1 ) Select the handle which you want to import handle confi guration fi le ( 2 ) Connect the handle to the notebook computer via the handle data input cable ( DLS-201 ) ( 3 ) Click “...

  • Page 35: Faq

    Part VI. Utilities – ISU-01 1. What is Utilities – ISU-01 ? - ISU-01 is a Windows based utility to provide a simple & user friendly way for initial handle setup 2. Which OS platform does ISU-01 support ? - MS Windows XP Professional with SP3 (32bit, English edition only) - MS Windows 7 Professional with SP1 (32bit &...

  • Page 36: Troubleshooting

    Part VII. Troubleshooting 1. Handle ID no. not shown in UI Step 1 - Handle is OFF ? ensure the handle is in power ON status Step 2 - Check the driver of the data input cable installed properly ? ensure the driver is installed properly.

  • Page 37: Part Viii. Optional Acccessories

    The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2013 Synergy Global Technology Inc. All rights reserved. Page 33 www.RackmountMart.com...
