Summary of Contents for TimeTec Hubot XV

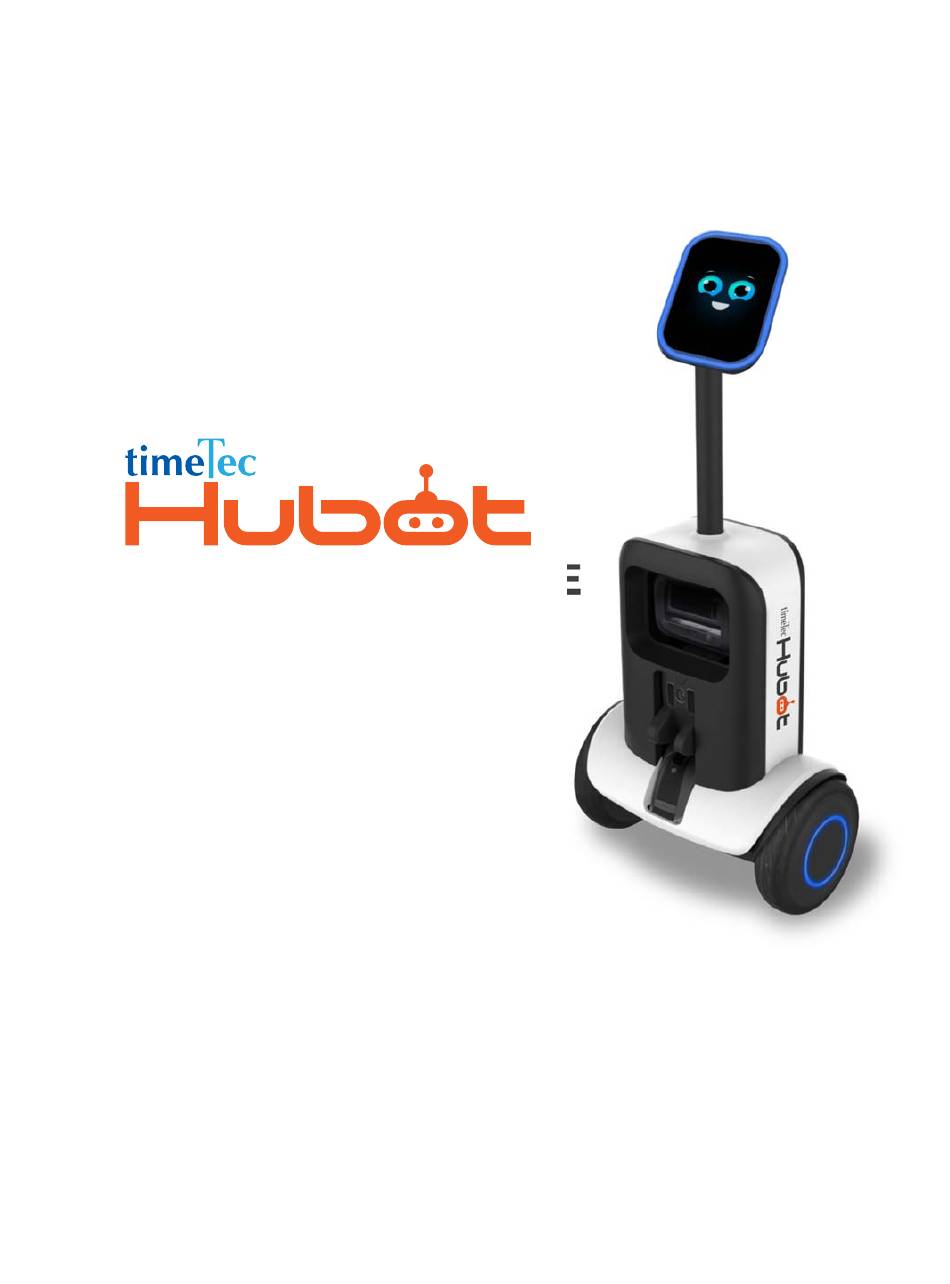

- Page 1 QUICK START GUIDE Revision HUB2019B , Last Modified 2019/09/20 1.0.0.1 © 2019 Timetec Computing Sdn Bhd...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. READ ME FIRST 2. PRODUCT OVERVIEW 3. PRODUCT SPECIFICATIONS 3.1 Hardware Specifications 3.2 Dimensions 4. QUICK SETUP AND OPERATION GUIDE 5. GENERAL MAINTENANCE GUIDE 6. SUPPORT AND WARRANTY... -
Page 3: Read Me First
1. READ ME FIRST Congratulations on your purchase of the ‘Hubot’! Please check this Part List carefully to ensure you have received all the parts. This hubot package includes the following items: ITEM QUANTITY DESCRIPTIONS Loomo Unit Self-Balancing Robot Tablet Unit Huawei Mediapad M5 ‘Hubot’... -
Page 4: Product Overview
Additionally, it has open architecture that suitable to be used as a development platform. There are 2 models available: (i) Hubot XV and (ii) Hubot DV are designed with various features to cater to all aspects of your requirements. The detail features of each model of Hubot are explained... -
Page 5: Product Specifications
3. PRODUCT SPECIFICATIONS 3.1 Hardware Specifications SPECIFICATIONS DESCRIPTIONS Traversable along pave road and sidewalks, packed dirt, slopes, Movement obstacles (1cm), gaps (3cm) Driving Wheels and Two differential driving wheels, nominal power 400W x 2 with high Encoders precision hall and magnetic encoders Camera Front Facing Camera: 720p, HD Input... -
Page 6: Dimensions
Dimensions... -
Page 7: Quick Setup And Operation Guide
4. QUICK SETUP AND OPERATION GUIDE Turn on the power switch to Boot up ‘Hubot’. Make sure the USB Type-C cable of the Tablet unit is connected to the ‘Loomo’ unit. When the ‘Use USB for’ screen appeared in Tablet, select ‘Transfer files’... - Page 8 Open the ‘Iteratec Loomo’ app that has been installed into Tablet. Switch on the the ‘Hubot’ ‘transform’ button. Open the ‘LoomoUsb’ app on the ‘Loomo’ unit. Then, wait for the USB connection icon to appear on the ‘Loomo’ unit LCD screen.
- Page 9 Then, wait for the USB connection icon to appear on the ‘Loomo’ unit LCD screen. A message box prompt will appear at the ‘Loomo’ unit LCD screen to request for access grant for ‘LoomoUsb’, click ‘OK’. Next, ‘Iteratec Loomo remote’ message prompt will appear at Tablet unit screen.
- Page 10 User should be able to see an interactive eyes UI at Tablet unit’s screen and Live captured images appear at the ‘Loomo’ unit’s screen.
-
Page 11: General Maintenance Guide
5. GENERAL MAINTENANCE GUIDE To charge up the Hubot, users are advised to carefully follow below steps: Lie down the Hubot on the ground carefully. Turn off the Hubot’s power button. Plug the charger onto the Hubot’s charger port. Connect the 3-pins AC power cord onto the wall plug socket. Turn On the wall plug’s switch to start charging ‘Hubot’. - Page 12 Connect the Tablet Unit’s USB Type-C cable to the Loomo unit. Turn on the Hubot’s power button, and it should charge the Tablet Unit automatically.
-
Page 13: Support And Warranty
1. Damage caused by modifications, alterations, tampering, disassembly, or improper maintenance or repairs; 2. Damage due to use, handling, storage, installation, or testing not in accordance with the TimeTec's published guidelines including but not limited to information contained in technical specifications, user manuals and service communications;... - Page 14 During warranty service it is possible that the contents of the product’s storage media will be lost, replaced or reformatted. In such an event TimeTec and its agents are not responsible for any loss of software programs, data or other information contained in the storage media or any other part of the product serviced.
- Page 15 If your claim is determined by TimeTec to be covered by this Warranty, TimeTec shall bear the shipping costs associated with return of the original Product and shipment of the replacement or repaired Product to you.
