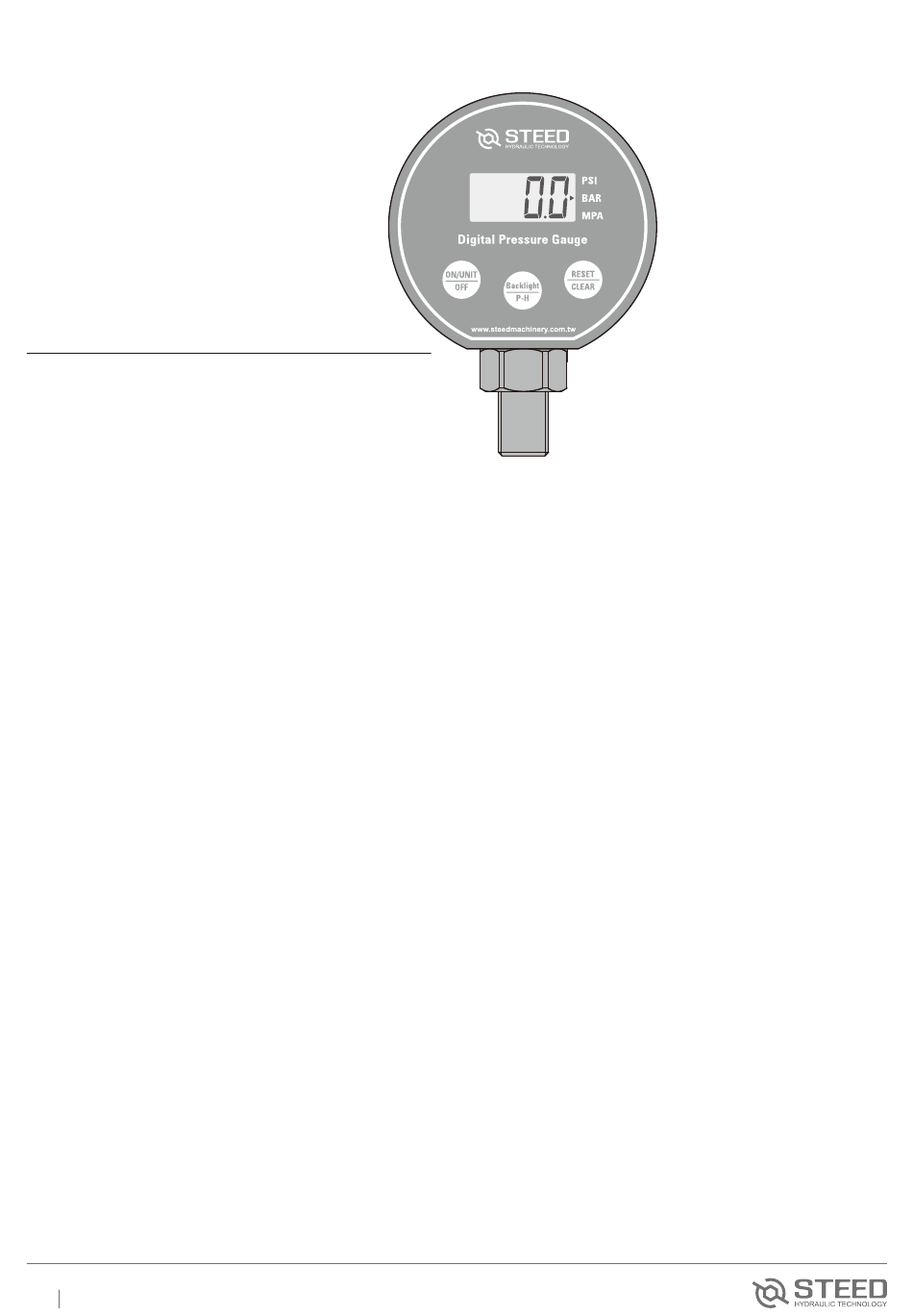

DIGITAL PRESSURE GAUGE DPG OPERATION INSTRUCTION
Model Name : DPG series

THE ON/UNIT/OFF BUTTON :

The ON/UNIT/OFF button is used to display the pressure reading; switch between pressure units (PSI, Bar, and
MPA) and to power down the unit.

TO POWER ON THE UNIT :

Press the ON/UNIT/OFF button. DPG series has a battery saver mode and will automatically shot off the display
after 5 minutes.

TO DISPLAY THE PRESSURE READING IN A DIFFERENT PRESSURE UNIT :

Continue to depress the ON/UNIT/OFF button until the arrow in the LCD points to the pressure units desired.

TO MANUALLY POWER DOWN THE UNIT :

Press the ON/UNIT/OFF button and hold down for 3 seconds until OFF is displayed and then release the button.

THE BACKLIGHT/P-H BUTTON :

The BACKLIGHT/P-H button is used to turn the LCD backlight on/off and to display the maximum peak pressure
the unit has measured.

TO TURN THE LCD BACKLIGHT ON :

Press the Backlight/P-H button once. To return the LCD backlight off: press the button again.

TO SEE THE MAXIMUM PEAK PRESSURE THE UNIT HAS MEASURED :

Press and hold down the Backlight/P-H button for 3 seconds. The maximum pressure reading will be blinking. If the
maximum pressure read was over the unit's maximum pressure range, o.L will be blinking on the display.

TO RETURN TO THE CURRENT PRESSURE READING :

Press the Backlight/P-H button and hold down for 3 seconds.
