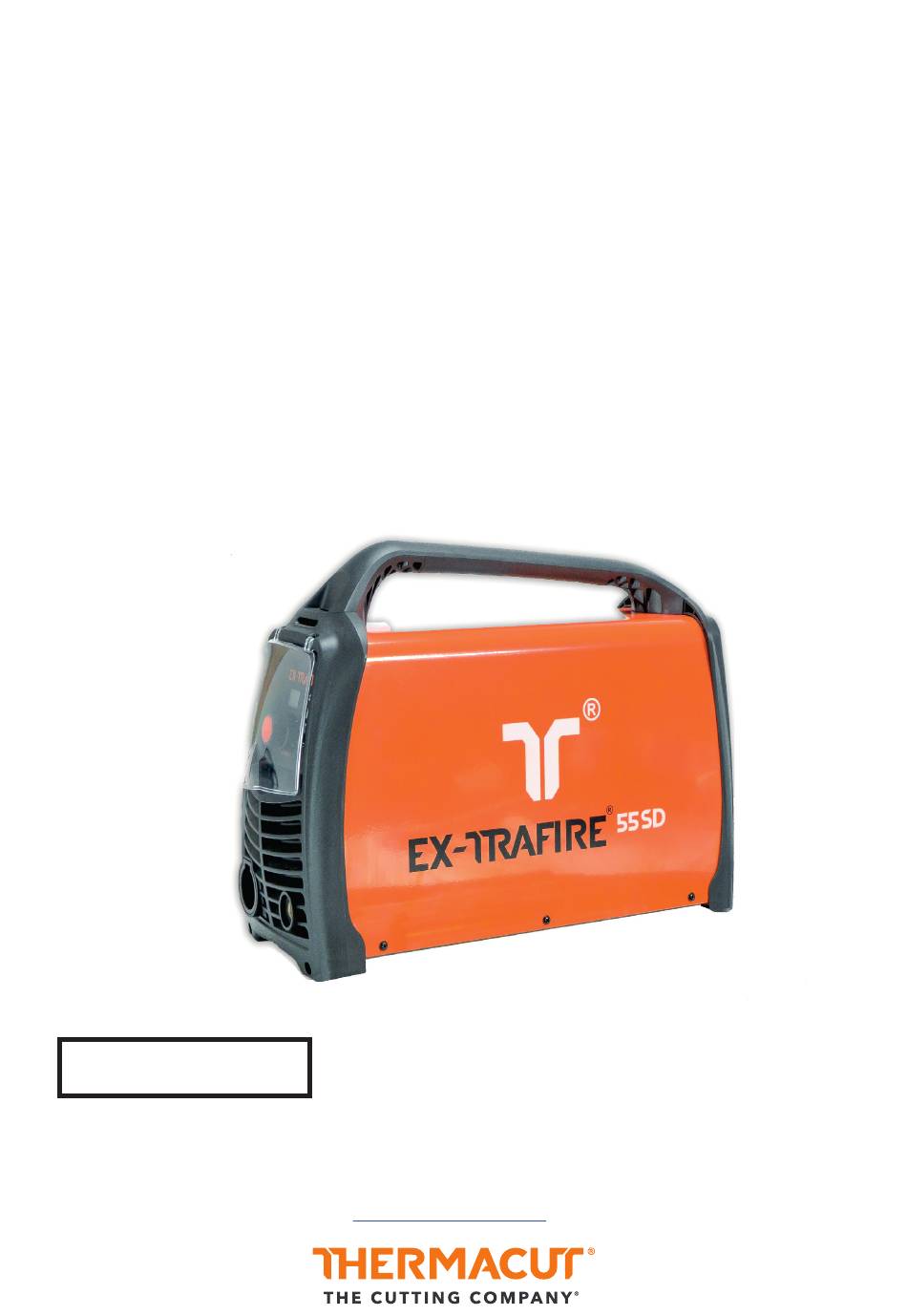

THERMACUT ® EX-TRAFIRE ® 55SD PLASMA CUTTING POWER SUPPLY Operator Manual Revision: T-3 English 2020 BEFORE SWITCHING ON OR OPERATING THE SYSTEM, !IMPORTANT! READ THIS MANUAL, BECOME FAMILIAR WITH THE CONTENT. KEEP THE MANUAL LOCAL TO THE JOB SITE WITH EASY ACCESS TO ALL PERSONNEL. THE SYSTEM IS TO BE USED FOR METAL CUTTING ONLY.
EX-TRAFIRE 55SD ® INDEX SECTION 1: SAFETY �������������������������������������������������������������������������������������� 5 !Caution! ��������������������������������������������������������������������������������������������������������������������������������������6 Plasma arc rays can burn eyes and skin �����������������������������������������������������������������������������������6 Noise can damage hearing ������������������������������������������������������������������������������������������������������6 Flying sparks (arc spray) can cause injury, fire or explosion ��������������������������������������������������6 Caution! Read operator’s manual ���������������������������������������������������������������������������������������������6 Cutting can cause fire or explosion �����������������������������������������������������������������������������������������7 Electric shock can kill������������������������������������������������������������������������������������������������������������������7 Plasma arc can injure ������������������������������������������������������������������������������������������������������������������7 Flying sparks (arc spray) can cause injury, fire or explosion ��������������������������������������������������7...
Page 3
EX-TRAFIRE 55SD ® Plasma gas supply ���������������������������������������������������������������������������������������������������������������� 3-25 Additional gas filtration �������������������������������������������������������������������������������������������������������� 3-25 Gas supply installation ��������������������������������������������������������������������������������������������������������� 3-26 System CNC interface connection �������������������������������������������������������������������������������������� 3-27 Basic settings is 50:1� ��������������������������� 3-27 Set the DIP switches to one of the following settings� Activating an external DC coil with an external power supply ���������������������������������������...
Page 4
EX-TRAFIRE 55SD ® SECTION 10: DISPOSAL OF PRODUCT ������������������������������������������������� 10-50 Use and disposal of waste �������������������������������������������������������������������������������������������������10-50 End of lifetime product disposal���������������������������������������������������������������������������������������10-50 SECTION 11: WARRANTY ��������������������������������������������������������������������� 11-51 Notes: �����������������������������������������������������������������������������������������������������������������������������������11-52 Notes: �����������������������������������������������������������������������������������������������������������������������������������11-53 Revision history: ������������������������������������������������������������������������������������������������������������������11-54 Operator Manual, Revision T-3...
EX-TRAFIRE 55SD ® SECTION 1� SAFETY: SECTION 1: SAFETY �������������������������������������������������������������������������������������� 5 !Caution! ��������������������������������������������������������������������������������������������������������������������������������������6 Plasma arc rays can burn eyes and skin �����������������������������������������������������������������������������������6 Noise can damage hearing ������������������������������������������������������������������������������������������������������6 Flying sparks (arc spray) can cause injury, fire or explosion ��������������������������������������������������6 Caution! Read operator’s manual ���������������������������������������������������������������������������������������������6 Cutting can cause fire or explosion �����������������������������������������������������������������������������������������7 Electric shock can kill������������������������������������������������������������������������������������������������������������������7 Plasma arc can injure ������������������������������������������������������������������������������������������������������������������7...
EX-TRAFIRE 55SD ® SAFETY !CAUTION! CAUTION! READ OPERATOR’S MANUAL The symbol shown in this section means: !Caution! !Beware! Follow the safety instructions to avoid danger� ¡There are possible hazards with this procedure! Only qualified persons should install, operate, maintain and When you find this symbol in the manual or on the system, repair the system�...
EX-TRAFIRE 55SD ® CUTTING CAN CAUSE FIRE FLYING SPARKS (ARC SPRAY) CAN OR EXPLOSION CAUSE INJURY, FIRE OR EXPLOSION FIRE PREVENTION Flying sparks are created during the metal cutting/gouging • Keep flammable items away from the work area� processes; the area should be kept free from flammables� •...
EX-TRAFIRE 55SD ® SMOKE AND GASES CAN BE HAZARDOUS Induction heating of certain materials, adhesives, and fluxes may cause fumes or smoke� • Work in a confined space only if it is well ventilated, Breathing the fumes and smoke can be hazardous to your or while wearing an air-supplied respirator�...
EX-TRAFIRE 55SD ® Safety Sticker Torch consumables installation Safety instructions WARNING! Plasma arc is generated immediately when the torch trigger is depressed. Plasma arc is generated immediately when the torch trigger is depressed. The plasma arc will cut quickly through gloves and skin.
Page 10
EX-TRAFIRE 55SD ® SECTION 2� SPECIFICATIONS: Dimensions and weight of the plasma arc power supply ����������������������������������������������� 2-11 Specifications: plasma arc power supply 3 x 220 V ���������������������������������������������������������� 2-12 Specifications: plasma arc power supply 3 x 400 V ���������������������������������������������������������� 2-13 Hand torch setup ������������������������������������������������������������������������������������������������������������������ 2-15 Machine torch setup �������������������������������������������������������������������������������������������������������������...
EX-TRAFIRE 55SD ® SPECIFICATIONS EX-TRAFIRE 55SD ® • I s a portable plasma arc cutting system� • Has been designed for handheld cutting� • U ses compressed air or nitrogen for cutting electrically conductive metals (mild steel, stainless steel and aluminium)� Dimensions and weight of the plasma arc power supply 11�8 kg* * Weight of plasma arc power supply without torch�...
EX-TRAFIRE 55SD ® Specifications: plasma arc power supply 3 x 220 V Open circuit voltage (U0) 400 VDC Output characteristic* Drooping * Curve is defined as the output voltage versus output current Input voltage (U1) 3 x 220 VAC ± 15% Rated output current (I2) 30 - 55 A 140 VDC...
Page 13
EX-TRAFIRE 55SD ® Specifications: plasma arc power supply 3 x 400 V Open circuit voltage (U0) 400 VDC Output characteristic* Drooping * Curve is defined as the output voltage versus output current Input voltage (U1) 3 x 400 VAC ± 15% Rated output current (I2) 30 - 55 A 170 V...
Page 14
EX-TRAFIRE 55SD ® PARAMETERS EX-TRAFIRE 55SD ® Supply voltage (VAC) 3 x 400±15% (3 x 220±15%) Frequency (Hz) 50/60 Maximum input current 20�9 (28�9) 80%-100% (A) Maximum input power (kVA) 13�7 (11) Open circuit voltage (VDC) Rated output voltage (VDC) Cutting current at 50%-100% duty cycle (A) 55 - 41 Recommended cutting capacity (mm)
EX-TRAFIRE 55SD ® Hand torch setup Gas hose (min� Ø8 mm) Work piece Torch lead min� 270 LPM min� 6 bar max� 10 bar Ground Work table Work lead Power lead Gas supply view P Torch lead Work lead Operator Manual, Revision T-3 2-15...
EX-TRAFIRE 55SD ® Machine torch setup Machine Torch lead Gas hose (min� Ø8 mm) interface cable min� 270 LPM Work piece min� 6 bar max� 10 bar Ground Work table Work lead Power lead Gas supply view P Torch lead Work lead 2-16 Operator Manual, Revision T-3...
EX-TRAFIRE 55SD ® Symbols and marking For compliance with the European Norm, it is NOT permissible to use unshielded consumables in Hand-Held applications� mark indicates that the power supply and torch are suitable for S Mark; use in environments with danger of electrocution� The hand torches must have shielded consumable parts fitted to mantain mark compliance�...
Page 18
EX-TRAFIRE 55SD ® SECTION 3� INSTALLATION: Upon receipt of goods ��������������������������������������������������������������������������������������������������������� 3-19 Claims ������������������������������������������������������������������������������������������������������������������������������������� 3-19 Box contents �������������������������������������������������������������������������������������������������������������������������� 3-19 Power supply location ���������������������������������������������������������������������������������������������������������� 3-20 Mains power connection ����������������������������������������������������������������������������������������������������� 3-20 Connecting to an engine drive power generator ������������������������������������������������������������� 3-20 Grounding ����������������������������������������������������������������������������������������������������������������������������� 3-20 Mains power lead �����������������������������������������������������������������������������������������������������������������...
EX-TRAFIRE 55SD ® INSTALLATION Upon receipt of goods 1� Verify that all ordered items have been received, for short shipment or damage to equipment, contact the Authorized Supplier� 2� If there is evidence of damage, see Claims, below� 3� All communication relating to this plasma arc system should include the model and serial number located on the bottom of the plasma arc power supply�...
5� For optimum performance, do not share the engine drive with other equipment such as welding plant, lighting systems or angle grinders� Three-phases, 50/60 Hz, 400 VAC ±15% Engine drive rating Current output EX-TRAFIRE 55SD Performance 19 kW 55 A Full arc stretch 17 kW...
EX-TRAFIRE 55SD ® Mains power lead EX-TRAFIRE®55SD - 3 x 400V - is supplied with a 3 meter length of 4 core 1�5 mm flexo cable without plug� EX-TRAFIRE®55SD - 3 x 220V - is supplied with a 3 meter length of 4 core 2�5 mm flexo cable without plug�...
EX-TRAFIRE 55SD ® The mains power lead connection A certified electrician or electrotechnically competent person should connect the mains power lead to a plug or hard wire to a suitable supply according to national standards� Torch installation step by step 1�...
Page 23
EX-TRAFIRE 55SD ® 3� Torch connection – Torch TCS plug Latch with key position� TCS latch with key Torch TCS plug Latch with key position 4� Torch connection – 1st step – place the TCS latch with key into the TCS power supply socket� The TCS latch with key must be locked in the TCS socket properly with the latch nose�...
Page 24
EX-TRAFIRE 55SD ® 5� Torch connection – 2nd step – put TCS plug into the TCS socket� The torch TCS plug must be locked in the TCS socket properly with the key nose� TCS key nose 6� Torch connection – proper position of the TCS plug in the TCS socket� 3-24 Operator Manual, Revision T-3...
55SD is equipped with a built-in filtration system� ® Additional gas filtration The Thermacut filtration system should be used when oil, moisture or other contaminants are found in the air supply� In more severe cases the 3-stage filtration system should be used� Water /...
EX-TRAFIRE 55SD ® Gas supply installation Connect the air-line hose as follows: 1� Air-line hose connection� Female G1/4” thread adapter� • 2� Air-line hose� Use an inert gas hose with a minimum • internal diameter of 8 mm, make a direct attachment or use a quick disconnect fitting�...
EX-TRAFIRE 55SD ® System CNC interface connection Each type of signal is available through the system CNC interface connector located on the rear control panel� Use the chart with details of each signal type below when connecting the system interface lead to the plasma arc power supply� START Arc transfer Signal:...
EX-TRAFIRE 55SD ® Activating an external DC coil with an external power supply Use a diode 1N4007 if the voltage is 24 VDC 24 VDC Activating an external AC coil with an external power supply 24 VAC 230 VAC 3-28 Operator Manual, Revision T-3...
EX-TRAFIRE 55SD ® Activating an industrial isolated module with an external power supply Notes: 1� Isolated input module, provided by the user� 2� 24 VDC power supply to be provided by the user� ISOLATED INPUT MODULE� Installation of the machine interface cable must be performed by a certified electrician or competent person�...
Page 30
EX-TRAFIRE 55SD ® SECTION 4� OPERATION: Front view ������������������������������������������������������������������������������������������������������������������������������� 4-31 Front control panel ��������������������������������������������������������������������������������������������������������������� 4-31 Rear view �������������������������������������������������������������������������������������������������������������������������������� 4-32 Rear control panel detail ������������������������������������������������������������������������������������������������������ 4-32 Turn ON ���������������������������������������������������������������������������������������������������������������������������������� 4-33 Check the LED indicators����������������������������������������������������������������������������������������������������� 4-33 Operating the hand torch ���������������������������������������������������������������������������������������������������� 4-34 Operating the torch safety trigger ��������������������������������������������������������������������������������������...
EX-TRAFIRE 55SD ® OPERATION Front view Front control panel Torch connector Work clamp connector Front control panel 1� Cutting current regulator knob� 2� Display - Cutting current display - when fault occures, error code will display� 3� Over-Current (OC), Over-Temperature (OT) alarm indicator�...
EX-TRAFIRE 55SD ® Rear view Rear control panel Rear control panel detail EX-TRAFIRE 55SD - 3 x 220 V EX-TRAFIRE 55SD - 3 x 400 V ® ® 1� Power supply switch 2� Mains power lead 3� CNC interface connector 4�...
EX-TRAFIRE 55SD ® Turn ON Switch ON Note: The cooling fan will only run when needed� Check the LED indicators Check that LED1 is illuminated and LED2, LED3 and LED4 are not illuminated before cutting� Operator Manual, Revision T-3 4-33...
EX-TRAFIRE 55SD ® Operating the hand torch WARNING Plasma arc is generated immediately when the torch trigger is depressed Plasma arc is generated immediately when the torch trigger is depressed� The plasma arc will cut quickly through gloves and skin� Make sure the power supply is switched off before changing consumables�...
EX-TRAFIRE 55SD ® WARNING SPARKS AND HOT METAL CAN BURN THE SKIN AND EYES When angling the torch for cutting or piercing, molten metal (Arc Spray) will occur in the direction that the torch is aimed� Aim the torch away from yourself and others� Fit the work clamp Secure the work clamp to the work piece, ensure good contact, and remove surface contaminants�...
EX-TRAFIRE 55SD ® Hand torch cutting technique Avoid unnecessary firing of the torch, each firing of the torch reduces the lifetime of the electrode and nozzle� When cutting, ensure the arc spray exits the underside of the work piece� Direction of cut Incomplete severance is indicated by an upward arc spray�...
EX-TRAFIRE 55SD ® Piercing WARNING SPARKS AND HOT METAL CAN BURN THE SKIN AND EYES When angling the torch for cutting or piercing, molten metal (Arc Spray) will occur in the direction that the torch is aimed� Aim the torch away from yourself and others�...
EX-TRAFIRE 55SD ® Operating the machine torch WARNING Plasma arc is generated immediately when the torch trigger is depressed Plasma arc is generated immediately when the torch trigger is depressed� The plasma arc will cut quickly through gloves and skin� Make sure the power supply is switched off before changing consumables�...
Page 40
EX-TRAFIRE 55SD ® MAINTENANCE Routine maintenance WARNING ELECTRIC SHOCK CAN KILL Disconnect mains power lead before servicing; Qualified technicians only should perform any work that requires removal of the system cover� Allow a period (minimum 5 min�) for electrical discharge before handling internal parts� Check the gas pressure�...
Page 41
EX-TRAFIRE 55SD ® Purging/draining the built-in filter This power supply is equipped with built-in float type auto drain filter� Do not cover outflow drain hole located on the bottom of the power supply (see the picture below)� Position of the outflow drain hole Operator Manual, Revision T-3 5-41...
Page 42
EX-TRAFIRE 55SD ® SECTION 6� ADDITIONAL ORDERING INFORMATION EX-TRAFIRE 55SD Power Supplies ® Part No� DESCRIPTION EX-3-001-001 EX-TRAFIRE 55SD/CE/3x400V power Supply Unit (fully-equipped) ® EX-3-001-005 EX-TRAFIRE 55SD/CE/3x220V power Supply Unit (fully-equipped) ® 6-42 Operator Manual, Revision T-3...
Page 43
EX-TRAFIRE 55SD ® SECTION 7� TROUBLESHOOTING Fault This may mean Cause Solution Main switch • No / low voltage • Insufficient mains • Check the mains input is ON and the of mains power power source� voltage 3 x 400 VAC ± 15% AC power source�...
Page 44
EX-TRAFIRE 55SD ® Fault This may mean Cause Solution The LED3 • Consumables • Consumables are • Install the consumables and blinks no arc fault� loose, improperly fit the retaining cap� output when installed or missing� the trigger • The retaining cap •...
Page 45
EX-TRAFIRE 55SD ® Fault This may mean Cause Solution No transfer • Clean the surface of the • Work clamp • Fluctuating between connection fault� connection clamp and material� pilot arc and between the clamp workpiece� and work piece� • No connection to •...
Page 46
EX-TRAFIRE 55SD ® Fault This may mean Cause Solution Cut quality • Incorrect current • Low current or high • Adjust the current to suit the issues� setting� material thickness� thickness of material to be cut� • Consumables • Consumables are •...
Page 47
EX-TRAFIRE 55SD ® SECTION 8� ACCESSORIES Filter-EX Compressed Air Filter with replacement filter cartridge EX-0-804-001 - Filter-EX Compressed Air Filter EX-0-804-002 - Filter-EX Air Filter Cartridge (Standard package 1 piece) (Standard package 8 pieces) Technical specification Filtering Degree: 0�01 μinch – 0�25 μm Maximum Pressure: 125 PSI –...
Page 49
EX-TRAFIRE 55SD ® SECTION 9� POWER SUPPLY BLOCK DIAGRAM Power supply block diagram Operator Manual, Revision T-3 9-49...
Page 50
Hereby Thermacut, k�s� confirms that to its knowledge all Plasma Power supply models EX-TRAFIRE H, SC, SD and HD (unless otherwise expressly stated) sold by Thermacut, k�s� fulfill the requirements of the EU directive 2011/65/EU� These products are compatible with the current RoHS requirements for the 7 substances (max 0�1% by weight in homogeneous materials for lead,...
Page 51
This Warranty Certificate forms an integral part of General Business Conditions (“GBC”) of THERMACUT, k.s. (the “Seller”) and shall apply to supplies of Goods under Contract concluded between the Seller and the other contracting party as the recipient of the Goods (the “Buyer”); terms used herein have the same meaning as is ascribed to them in the GBC 1�...
Page 54
EX-TRAFIRE 55SD ® Revision history: 1� Revision T-1/2020 - 02/2020 - Official release 2� Revision T-2/2020 - 05/2020 Page 2-12 - new chart of specifications 3 x 220 V Page 2-14 - new values in brackets - for 3 x 220 V power supply Page 4-32 - new picture of rear label 3 x 220 V Page 4-38...
Page 56
686 01, Uherské Hradiště Czech Republic www�thermacut�cz sales@thermacut�cz THERMACUT®, FHT-EX® and EX-TRAFIRE® are registered trademarks of THERMACUT, k�s� and may be registered in Czech Republic and/or other countries� All other trademarks are properties of their respective owners� 11-56 Operator Manual, Revision T-3...
