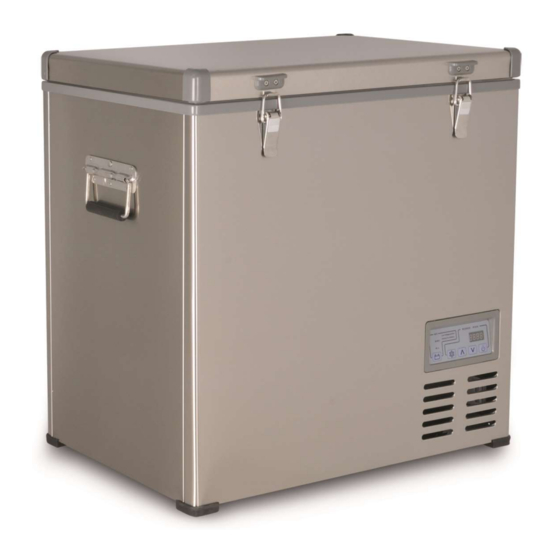

Kalamera KRC-45SS Instruction Manual

Portable compressor refrigerator

Hide thumbs

Table Of Contents

INSTRUCTION MANUAL

PORTABLE COMPRESSOR REFRIGERATOR

Model: KRC-45SS / KRC-55SS / KRC-65SS

PLEASE READ THIS INSTRUCTION MANUAL CAREFULLY BEFORE CONNECTING AND

OPERATING THE APPLIANCE. SAVE IT FOR FUTURE REFERENCE.

Table of Contents

Need help?

Do you have a question about the KRC-45SS and is the answer not in the manual?

Questions and answers

Summary of Contents for Kalamera KRC-45SS

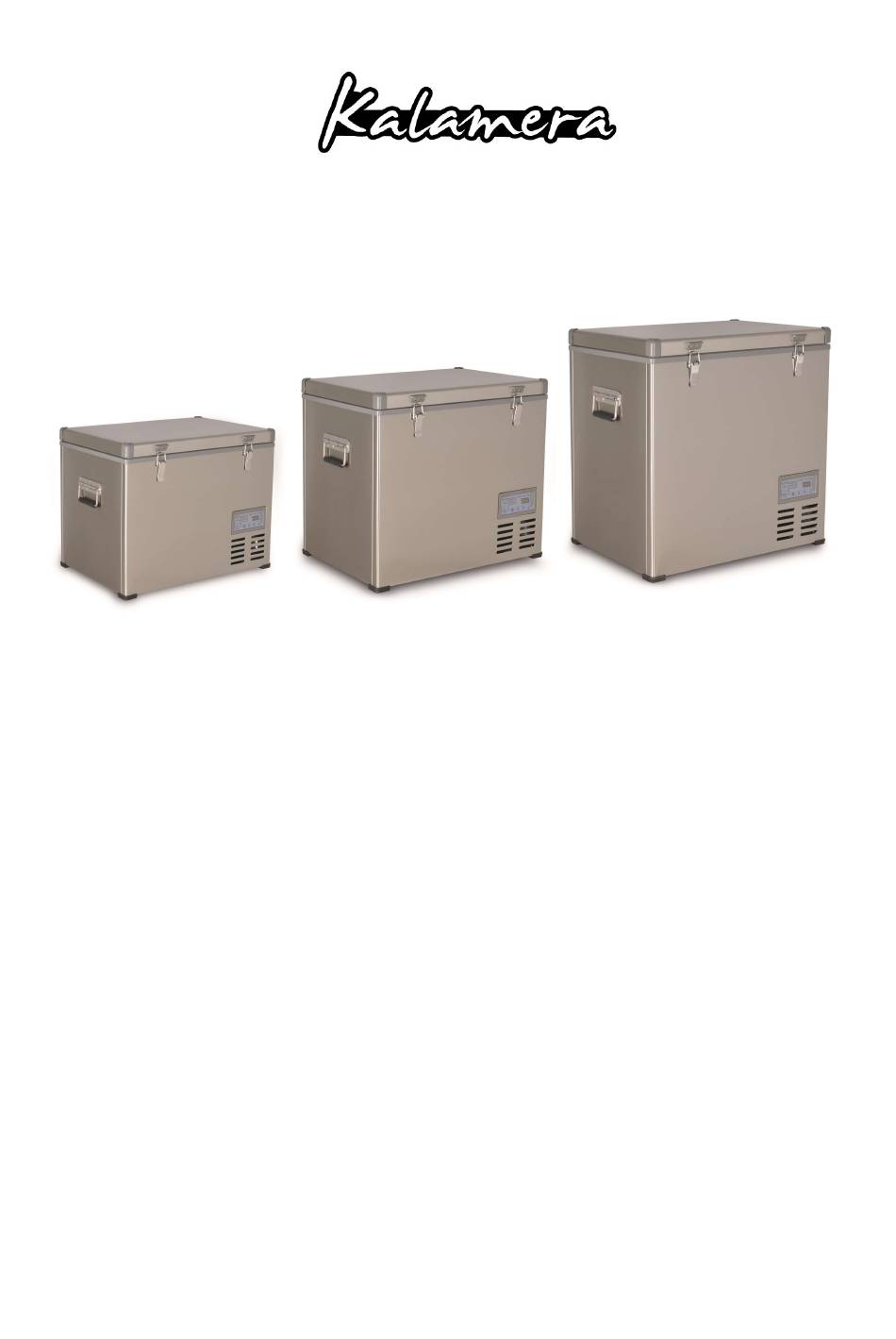

Page 1 INSTRUCTION MANUAL PORTABLE COMPRESSOR REFRIGERATOR Model: KRC-45SS / KRC-55SS / KRC-65SS PLEASE READ THIS INSTRUCTION MANUAL CAREFULLY BEFORE CONNECTING AND OPERATING THE APPLIANCE. SAVE IT FOR FUTURE REFERENCE.
Page 2: Table Of Contents
Table of Contents Product features……………………………………………………………………..3 Parts list………………………………………………………………………………...3 Safety instructions………………………………………………………………….….4 Preparing before use……………………………………………………………..4 Operation and function…………………………………………………………..…..4 Manipulating of battery protector (low voltage protection)………………………...7 Defrosting……………………………………………………………………………..8 Replacing fuse and interior light…………………………………………………..….9 Cleaning and maintenance…………………………………………………………….9 Troubleshooting…………………………………………………………....10 ……………..Packing list………………………………………………………… Notice: Please pay attention to the below markings: Safety cautions: non-standard operations could endanger personal safety or result in refrigerator damage.
Page 3: Product Features
I. Product features The refrigerator is suitable for cooling and freezing foods or drinks. The device is designed to be operated from a 12 V or 24 V on-board supply socket of a vehicle (e. g. cigarette lighter), boat or caravan. Can be used not only on DC 12V/24V power supply, but also on AC 100-240V through external DC/AC power supply adapter.
Page 4: Safety Instructions
III. Safety instructions We hereby declare that, the damage caused by the following acts shall not be responsible for: -Faulty installation or connection. -Over voltage and mechanical damage cause. -Transforming the refrigerator without permission. -Failure to manual operation. Pay attention to the voltage description on the rating label, and ensure that the power cord is connected to right power outlet.
Page 5 -Slide emergency switch to Standard mode position. -Insert DC plug into a car’s cigarette lighter socket or other DC 12V/24V socket. During normal using, emergency mode is not applicable. Emergency mode is only used while the operating panel is malfunctioning. 2.
Page 6 -After switch on the power, power indicator light will be Orange. Digital display is without displaying, the refrigerator is standing by. -Press button three seconds continually. Digital display will show the current interior temperature. Power light will turn to Yellow, the refrigerator start working.
Page 7: Manipulating Of Battery Protector (Low Voltage Protection)
The device is equipped with a multi-level battery protector that protects your vehicle battery against excessive discharging when the device is connected to the on-board 12/24 V supply. If the refrigerator is operated when the vehicle ignition is switched off, the refrigerator switches off automatically as soon as the supply voltage falls below a set level.
Page 8: Defrosting
-While the battery’s voltage is too low, battery protector will take effect. Red malfunction indicator light will blink. Now you need to charge the battery. -While the battery protector cut off the battery connection, you should warrant the battery to be charged sufficiently, so as avoid frequent restarting of compressor.
Page 9: Replacing Fuse And Interior Light
1. Steps for replacing plug fuse (12/24 V): –Unplug the DC power plug; –Turn anticlockwise the cap to remove it and fuse from the plug; –Replace the defective fuse with a new one that has the same rating (insert style 32V 10-15A); –Tighten the cap.
Page 10: Troubleshooting
Troubleshooting Fault Possible cause Suggested remedy Power indicator light is not No power input. Check whether input power is matching or not; The refrigerator does not work. ignition must be switched on in most vehicles to apply current to the cigarette lighter.
Page 11: Packing List
XI. Packing list Quantity Description Compressor fridge DC cable AC cable User manual Storage basket 1 Storage basket 2...
