Summary of Contents for Active Birth Pools Active

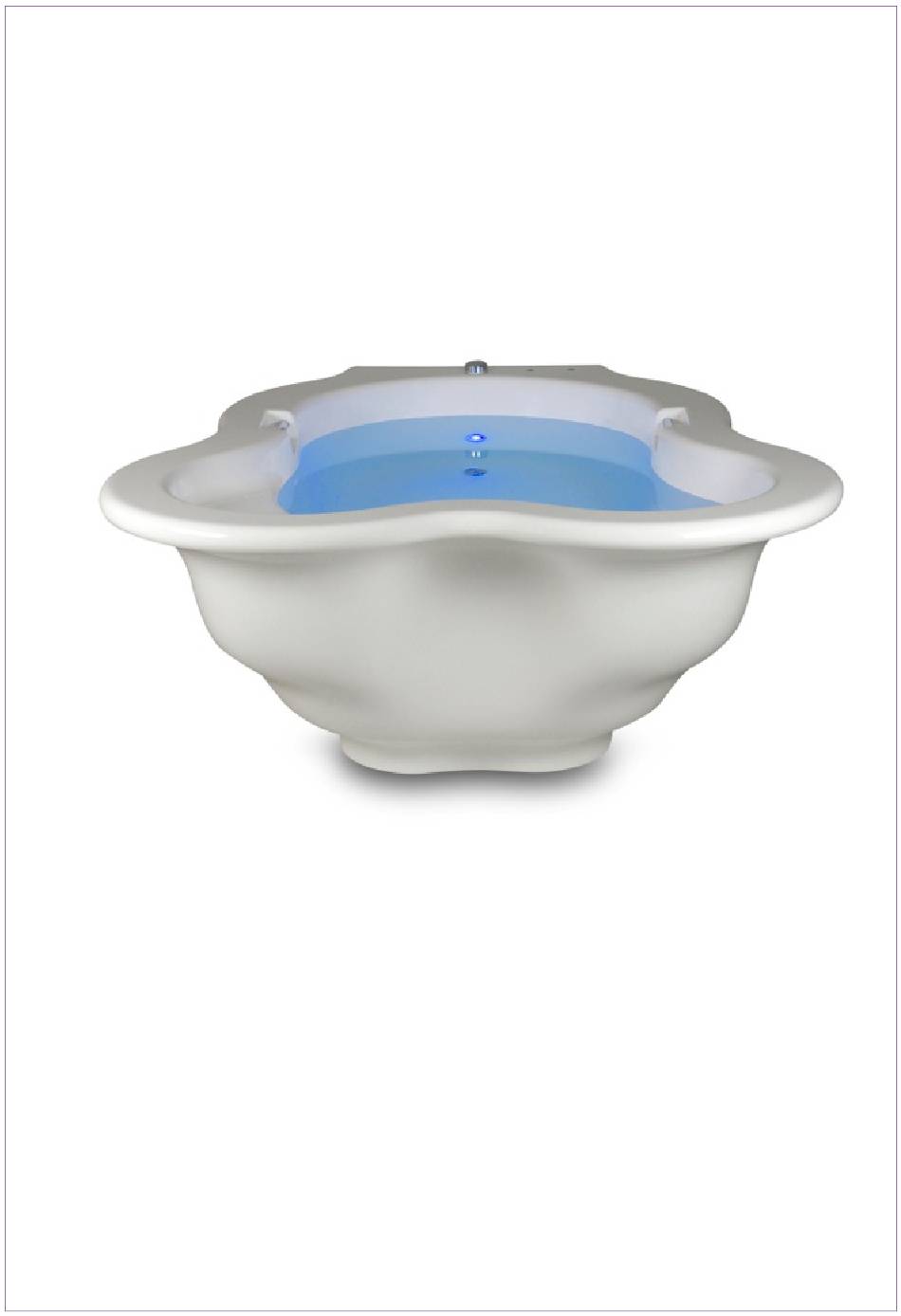

- Page 1 Active Birth Pools Guidelines for Installation...
- Page 2 Outside Mainland UK and International Deliveries Active Birth Pools that are delivered outside the mainland UK are wrapped in protective packaging and placed in timber framed crates with plywood sides that conform to ISPM15 and are stamped accordingly.
- Page 3 Active Birth Pool fitted to IPS panel with Rada T3 tap Taps Fix a 3/4" thermostatically controlled mixer tap with a 180mm spout on an IPS panel 15 cm above the rim of the pool (rim height 75cm).
- Page 4 Plans of Active Birth Pool installation as pictured above...
- Page 5 Drainage The pool is supplied with a bespoke brass 40mm pop up waste that is operated by a control that is fixed to the rim. The waste is connected to a P Trap and a McAlpine T25 adaptor Height from the floor to the centre of the T25 adaptor is 11cm From the T25 adaptor you can utilise of a wide variety of commonly available parts to connect to the pipework of the buildings drainage system.
- Page 6 Securing the birth pool to the floor All feet MUST be in solid contact with the floor. If the floor is not level or smooth be sure to adjust the feet or level the floor so that all of the feet are in firm contact with the floor and there is no rocking or movement. The bottom flange of the outer panel should be in contact with the floor but is not the primary support structure of the pool and must not bear the full weight of the filled birth pool.
- Page 7 Step 2: Active Birth Pool – front fixing bracket Measure 1220 mm from the centre point on the wall and mark this as the point to locate the bracket so that the long flat piece is projecting away from the wall and the raised short section faces forward into the room.
- Page 8 Step 2: Venus Birth Pool – front fixing bracket Measure 1070 mm from the centre point on the wall and mark this as the point to locate the bracket so that the long flat piece is projecting away from the wall and raised short section faces forward into the room.
- Page 9 Step 2: Princess Birth Pool Poo l – front fixing bracket Measure 1020 mm from the centre point on the wall and mark this as the point to locate the bracket so that the long flat piece is projecting away from the wall and raised short section faces forward into the room.
- Page 10 Step 3: All Models Place the birth pool at least 60 mm away from the rear wall before moving it onto the bracket and flush against the wall Push the birth pool towards the wall so that the flange of the pool slides under the bracket. This secures the front of the pool to the floor Step 4: All Models –...
- Page 11 1 x Remote control. 1 x Remote control holder. 1 x Infa red sensor. 1 x Chrome casing for above. 1 x Multicolour LED light. 1 x Electronic control box including dry running protection sensor 1 x Connection lead - 2 metres Operating voltage 220/230 volts - 50/60 hertz Single Clear Manually Operated LED Light Connect the factory fitted underwater light to a circuit breaker and then to the power...
- Page 12 Loosen nut on cable gland and pull through approximately 1” of cable Attach cable tie to secure in place, re-tighten nut and re-connect to light casing, ensuring to push white connector back into block Remote Operated Bluetooth Sound System Connect the system to a circuit breaker, then to the power supply and operate by the remote control.
-
Page 13: Cleaning And Disinfecting
Cleaning & Disinfecting This is a two-step procedure – first cleaning of the pool and surround, then disinfection of the pool and surround. 1. Prior to emptying the pool remove debris and larger particles from the water with a sieve to prevent it from blocking or obstructing the outlet. - Page 14 10. Keep the drain outlet closed when not in use. Damage resulting from high water temperatures, steam cleaning or use of products and equipment not approved by Active Birth Pools will not be covered by and will void our guarantee...
