- Page 1 USER GUIDE 1 of 25 STAGEGRID 1000 User Guide rev.01 ago-20...
-
Page 2: Table Of Contents
CONTENTS About ................................2 STAGEGRID 1000 ............................2 SoundGrid ..............................2 System Requirements ........................... 3 Hardware ................................4 Package contents ............................4 Rack Installation ............................5 Setups ................................6 Front Panel ..............................10 Back Panel ..............................11 Software ................................. 12 Setup Screen ............................... -
Page 3: About

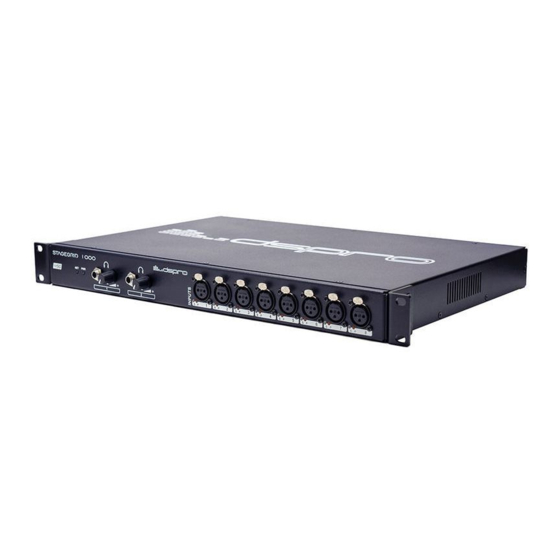

ABOUT STAGEGRID 1000 Thank you for choosing DSPRO SG1000 for your SoundGrid system. The SG1000 was developed to meet the needs of mixing professionals offering a balance between size and functionality. In a cabinet with only one rack unit, it offers all the channels that the professional needs at hand, close to his mixing console, making it a great solution for both the F.O.H and the Monitor. -
Page 4: System Requirements
System Requirements A STAGEGRID device A computer with at least one SoundGrid software installed (eMotion LV1, SoundGrid Studio or Multirack). Please consult Waves website for currently supported OS versions. Ethernet Cable CAT6/7. Additional details on network infrastructure can be found on Waves website. o Cable webpage: www.waves.com/support/ethernet-cables-for-soundgrid-systems o Switches webpage:... -
Page 5: Hardware
HARDWARE Package contents 1. One STAGEGRID 1000 2. Quick Start Guide 3. One power cord For future reference, take note of the serial number: S/N: _____________________ 4 of 25 STAGEGRID 1000 User Guide rev.01 ago-20... -
Page 6: Rack Installation
Rack Installation STAGEGRID 1000 is a standard 19" rack equipment with one RU in height. Use all four screws to safely secure the device in its rack position. Before powering up the equipment, power plugs must be inserted in socket outlets provided with protective earth contacts. -
Page 7: Setups
Setups Studio The basic application is the use of STAGEGRID as an audio interface for a native DAW. Using SoundGrid driver, any applications will access all device channels as local ports and the control panel will allow you to set every channel parameters. 1. - Page 8 Live Adding a Waves Server, all real-time processing is offloaded from the host computer, allowing power demanding applications. With eMotion LV1 on the Host computer, this setup is a complete mixing console totally controlled by software. It is a light, flexible and powerful mixing console with up to eight plugins per channel. 1.
- Page 9 Large PA In a large system, the high channels count needs on stage can be supplied with SG4000, while SG1000 would be used in both mixing sites, PA and Monitor, offering all channels operator may need near. In this example, besides dividing the system between stage, house mix and monitor positions, two servers are used together for redundancy, significantly increasing fault tolerance.
- Page 10 1. STAGEGRID 1000 (2x) 2. STAGEGRID 4000 (3x) 3. Waves Extreme Server (4x) 4. Host and Recording (2x) 5. Control surface (2x) 6. Network Switch (3x) 9 of 25 STAGEGRID 1000 User Guide rev.01 ago-20...
-
Page 11: Front Panel
Front Panel 1. Eight XLR mic/line inputs 2. Two Headphone outputs 3. Status LEDs: a. NET – SoundGrid network status Blue: Synchronized with a SoundGrid Host application Red: no SoundGrid sync Yellow: Firmware update White: Unit malfunction ... -
Page 12: Back Panel
Back Panel 1. Power ON/OFF switch 2. Power inlet 3. Four Line outputs 4. One input and one output stereo AES/EBU 5. Reset button 6. LINK LED – Ethernet status Green: Link up Blink: Link up and network activity ... -
Page 13: Software
SOFTWARE In order to use STAGEGRID 1000 it is necessary to install a Waves SoundGrid application and the device drivers. The installation of these features is done through Waves Central, a platform for managing user resources and licenses to be installed on the computer. Waves Central can be found at: www.waves.com/downloads/central. -
Page 14: Setup Screen
Setup Screen 1. Select SETUP tab 2. At I/O DEVICES add SoundGrid IO devices 13 of 25 STAGEGRID 1000 User Guide rev.01 ago-20... - Page 15 3. Select Add Device-> Network Devices->SG1000 to allocate STAGEGRID 1000 After adding a STAGEGRID to system inventory, the following screen will be created: 1. Gear: To access device control panel 2. Share: To enable sharing IO device between more than one Host application. 3.
-
Page 16: Control Panel
Control Panel Control panel has five tabs: About: Device description System: System details Clock: Clock setup Input: Input ports setup Output: Output ports setup 15 of 25 STAGEGRID 1000 User Guide rev.01 ago-20... - Page 17 Input tab 1. Selected channel group 2. Channel group navigation arrows 3. Detailed input level meter 4. Preamp gain control fader (-4 to 60dB) 5. Channel Phantom Power enabling button 16 of 25 STAGEGRID 1000 User Guide rev.01 ago-20...
- Page 18 AES Input tab 1. SYNC: AES/EBU operation status: • Green: synchronized • Orange: clock slip. Same sample rate but non-identical clock • Red: different Sample Rate • Grey: no signal 17 of 25 STAGEGRID 1000 User Guide rev.01 ago-20...
- Page 19 Output Tab 1. Selected channel group 2. Channel group navigation arrows 3. Detailed output level meter 18 of 25 STAGEGRID 1000 User Guide rev.01 ago-20...
- Page 20 CLOCK Tab 1. SOURCE: the device clock source. When the device is the SOE Master, options are: o Internal: clock is internally generated o Digital: clock is synchronized to AES/EBU input 1. When the device is SOE Slave, no option is available. 19 of 25 STAGEGRID 1000 User Guide rev.01 ago-20...
- Page 21 2. SAMPLE RATE: selects the Network Sample Rate between: 44.1 kHz, 48 kHz, 88.2 kHz and 96 kHz. Only available when device is SOE Master. 3. STATUS: current selected clock source synchronization status 4. SOE: indicates whether the device is Clock Master or Slave from the network (SOE). 5.
-
Page 22: Firmware Update
Firmware Update On the Inventory screen, the allocated devices with available updates will have the FW button with the following colors: GREEN: if it is an optional update RED: If the update is mandatory. It will not be possible to use the unit without performing the update ... -
Page 23: Specification
SPECIFICATION Dimensions: Height: 44mm (1RU) Width: 430mm (for 19” rack) Depth: 300mm (connectors excluded) Power supply: Voltage: 110 to 240 Vac Frequency: 50 / 60 Hz Power: 25W Environmental specifications: Operating Temperature: 0 to 40°C Relative Humidity: up to 90% non-condensing Interfaces: Analog Inputs: 8 Analog Outputs: 4... - Page 24 Ethernet SoundGrid: 1 Headphones: 2 Analog Inputs: Impedance: 2.86 kOhms Gain range: -4 to 60 dB Max Input Level: 28 dBu (-4 dB gain) Dynamic range: 115 dB (-60 dBFS, 20 dB gain, 1 kHz, A-weighted) THD: 0.002 % (-1 dBFS, 20 dB gain, 1 kHz, A-weighted) Equivalent Input Noise: -128 dBu (60 dB gain, A-weighted, 150 Ohms) Frequency response: +/- 0.1 dB (20 to 40 kHz at 96 kHz sampling rate) Phase Shift: <10°...
- Page 25 Phase shift: <5° at 20 kHz AES/EBU IN/OUT: Standard: AES3 (2009) Sample rates: 44.1, 48, 88.2 and 96 kHz Impedance: 110 Ohms Headphones: Output Power: 150 mW per channel on 16 Ohms Dynamic range: 100 dB SoundGrid: Interface: Gigabit Ethernet Connector: Neutrik EtherCON 24 of 25 STAGEGRID 1000 User Guide rev.01...
