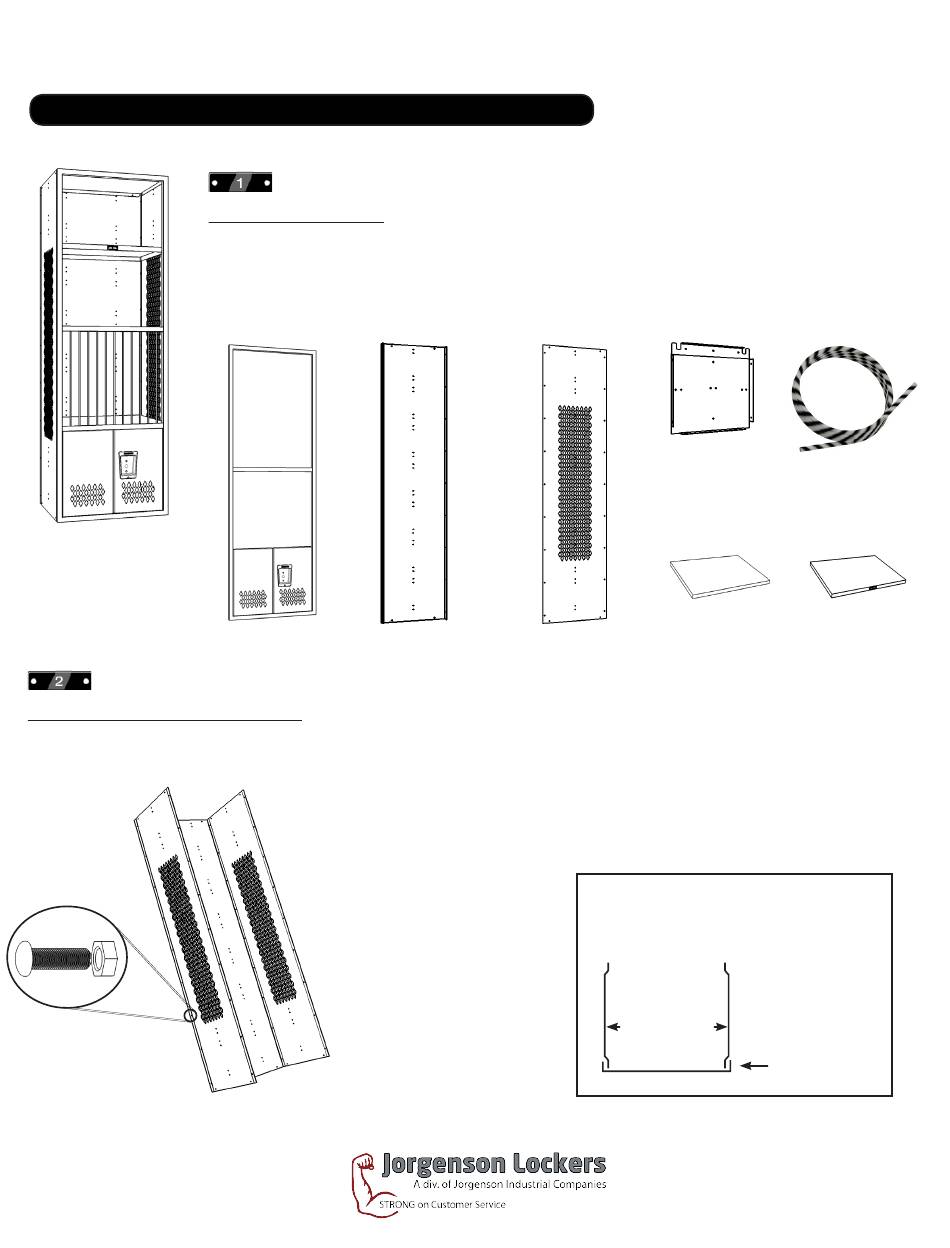

Assembly Instructions
Jorgenson Ball Storage Gladiator Lockers
Start Assembling
• Position the back panel on straight, even flooring or pair of saw horses.
• Gently bolt the left and right side panels to the inside of the back panel flange.
Left Side Panel
Top holes are
1/2" at the top
of each panel
shown.
1
Identify Parts
Remove unassembled locker parts from the packaging.
Next, locate and identify each part based on the
images show below:
(1) Front Frame
(1) Back Panel
Bolt the tamper-proof
screw on the inside
of the locker. Only the
screw heads should
be visible from the
outside of the locker.
Right Side Panel
(2) Top/Bottom
(2) Side Panels
Panels
(1) Bottom Shelf
View of locker with back panel flat
on floor or saw horses
The left and right side panels
must be placed inside the back
panel flanges.
Side Panels
TIP:
Tip: Ensure that the
bolts are installed
on the outside of
locker and nuts
are secured on the
inside of the locker.
(1) Ball Storage
Cord
(1) Top Shelf
(with number plate)
Back Panel

Advertisement

loading
Need help?

Need help?

Do you have a question about the Gladiator and is the answer not in the manual?

Questions and answers

Related Manuals for Jorgenson Lockers Gladiator

Summary of Contents for Jorgenson Lockers Gladiator

  • Page 1 Assembly Instructions Jorgenson Ball Storage Gladiator Lockers TIP: Tip: Ensure that the bolts are installed Identify Parts on the outside of Remove unassembled locker parts from the packaging. locker and nuts are secured on the Next, locate and identify each part based on the inside of the locker.
  • Page 2 Assembly Instructions Jorgenson Ball Storage Gladiator Lockers Continued Assembly • Slightly bolt the top/bottom panels and shelves inside the side and back panel. • Proceed to bolt the front frame on the outside of the left, right and bottom panels.
  • Page 3 Assembly Instructions Jorgenson Ball Storage Gladiator Lockers Insert Front Door Frame • Place locker in the upright position and make sure locker is level. •Tighten all bolts. • To instill proper safety measures, we highly advise anchoring the locker to the floor or wall to avoid injury...
