Technical Information

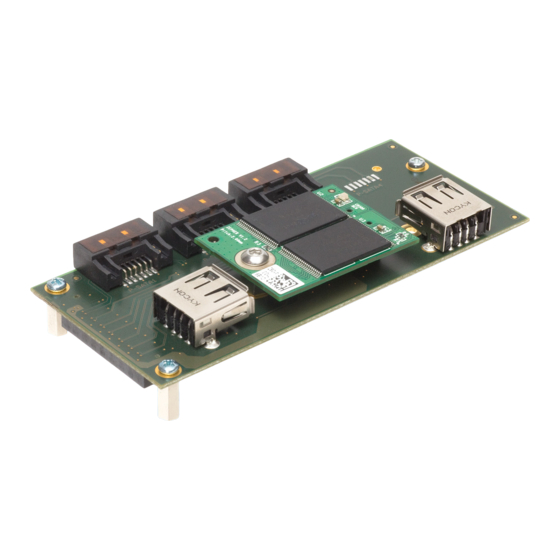

C43-SATA

SATA/USB

Mezzanine Module

Document No. 5399 • Ed. 8 • 25 January 2013

Table of Contents

Need help?

Do you have a question about the C43-SATA and is the answer not in the manual?

Questions and answers

Summary of Contents for EKF Electronik C43-SATA

Page 1 Technical Information C43-SATA SATA/USB Mezzanine Module Document No. 5399 • Ed. 8 • 25 January 2013...
Page 2: Table Of Contents
Top View Component Assembly C43-SATA ........11...
Page 3: About This Manual
Technical Information C43-SATA • SATA/USB Mezzanine Module About this Manual This manual is a short form description of the technical aspects of the C43-SATA, required for installation and system integration. It is intended for the advanced user only. Edition History...
Page 4: Related Documents
For a description of the CCM-BOOGIE or PC1-GROOVE CPU cards, which may act as carrier board with respect to the C43-SATA, please refer to the correspondent CPU user guide, available by download (change URL accordingly for other potential carrier cards).
Page 5: Standards
Technical Information C43-SATA • SATA/USB Mezzanine Module Standards Specifications/Standards SATA Serial ATA 2.5/2.6 Specification (www.sata-io.org) Universal Serial Bus Revision 2.0 specification (www.usb.org/developers) C43-SATA on CCM-BOOGIE © EKF ekf.com...
Page 6: C43-Sata Features
2002/95/EC (RoHS) < MTBF Not all of the connectors may be present or functional on your actual C43-SATA board; assembly is highly custom specific. Options may be exclusive, i.e. not necessarily concurrently present. Discuss your needs with EKF before ordering.
Page 7 Technical Information C43-SATA • SATA/USB Mezzanine Module C43-SATA on CompactPCI® Serial CPU Carrier Card C43-SATA (Internal SATA Connectors Option) © EKF ekf.com...
Page 8: Short Description
Some of the population options mentioned may exceed the 4HP total stack height for the CPU carrier board and C43-SATA assembly. Please read carefully the respective notes (subchapters 'J-USB3 - J-USB4', and 'P-UFD1 - P-UFD2'. For some EKF expansion boards slight violations of the 4HP envelope may be tolerable.
Page 10: Block Diagram C43-Sata
Technical Information C43-SATA • SATA/USB Mezzanine Module Block Diagram C43-SATA Simplified Block Diagram C43-SATA USB SSD Flash Drive Option Option Receptacles USB1 Option Low Profile USB SSD Pin Header Power Switch High Speed Meets P-MEZ Mezzanine J-HSE Connector on CPU...
Page 11: Top View Component Assembly C43-Sata
Technical Information C43-SATA • SATA/USB Mezzanine Module Top View Component Assembly C43-SATA J-USB4 C43-SATA © EKF C43-SATA © EKF Stuffing Option SATA/USB Receptacles Stuffing Option USB SSD Module(s) SATA/USB LPC/USB/AUDIO PCI Express x 4 J-USB4 C43-SATA © EKF C43-SATA Mezzanine...
Page 12: Installing And Replacing Components
Technical Information C43-SATA • SATA/USB Mezzanine Module Installing and Replacing Components Before You Begin Warnings The procedures in this chapter assume familiarity with the general terminology associated with industrial electronics and with safety practices and regulatory compliance required for using and modifying electronic equipment.
Page 13: Installing The Board Assembly
Technical Information C43-SATA • SATA/USB Mezzanine Module Installing the Board Assembly Warning This procedure should be done only by qualified technical personnel. Disconnect the system from its power source before doing the procedures described here. Failure to disconnect power, or telecommunication links before you open the system or perform any procedures can result in personal injury or equipment damage.
Page 14: Removing The Board Assembly
Technical Information C43-SATA • SATA/USB Mezzanine Module Removing the Board Assembly Warning This procedure should be done only by qualified technical personnel. Disconnect the system from its power source before doing the procedures described here. Failure to disconnect power, or telecommunication links before you open the system or perform any procedures can result in personal injury or equipment damage.
Page 15: Emc Recommendations
Technical Information C43-SATA • SATA/USB Mezzanine Module EMC Recommendations In order to comply with the CE regulations for EMC, it is mandatory to observe the following rules: The chassis or rack including other boards in use must comply entirely with CE...
Page 16: Technical Reference - Connectors
Please Note The C43-SATA mezzanine module may be equipped with several connectors for system internal usage. Not all of these connectors may be present on a particular board. Be sure to specify your individual needs when ordering the C43-SATA board.
Page 17: I/O Connectors
Technical Information C43-SATA • SATA/USB Mezzanine Module I/O Connectors The C43-SATA can be equipped with several I/O connectors. Some of these connectors are available as an option only or exclusive to each other, and therefore may not be functional or even present on your actual board.
Page 18 Technical Information C43-SATA • SATA/USB Mezzanine Module Carrier Board PCB 9.0mm P-MEZ Latching SATA SATA Cable Connector Side Board 4HP Pitch Sectional Drawing (North View) - SATA & USB SATA/USB LPC/USB/AUDIO PCI Express x 4 J-USB4 C43-SATA © EKF C43-SATA...
Page 19: J-Usb3 - J-Usb4
USB cable assemblies with slim and short plugs are required - not any USB harness matches with the C43-SATA due to space restrictions. The same issue must be strictly observed if direct attachment of an USB stick (e.g.
Page 20: P-Sata1 - P-Sata4
Technical Information C43-SATA • SATA/USB Mezzanine Module P-SATA1 - P-SATA4 The C43-SATA can be optionally populated with up to four horizontal mount latching SATA signal headers , for system internal attachment of SATA drives. TX/RX designation of signals are shown with respect to the additional SATA controller located on the carrier board.
Page 21: P-Ufd1
Technical Information C43-SATA • SATA/USB Mezzanine Module P-UFD1 As a custom specific option, the C43-SATA can be provided with an USB SSD (Solid State Drive) low profile mezzanine modules. However, the total stack height of the CPU carrier board and the C43-SATA mezzanine module assembly would then exceed the 4HP envelope up to ~ 1.8mm.
Page 22 Technical Information C43-SATA • SATA/USB Mezzanine Module C43-SATA over CCM-BOOGIE CPU Carrier Card © EKF -22- ekf.com...
Page 23: Inter-Board Connector
CCM-BOOGIE CPU carrier board and its successors. The inter-board connector is situated at the bottom of the C43-SATA and establishes the data path and power link to the carrier board CPU J-HSE. Since the C43-SATA comes typically mounted as a unit together with the CCG-RUMBA, there is normally no need for the user to get access to the inter-board connector.
Page 24: P-Mez
Technical Information C43-SATA • SATA/USB Mezzanine Module P-MEZ The connector P-MEZ is a 1mm nominal height shielded male pin header. Its counterpart on the CPU carrier board is a 8mm height receptacle (J-HSE), for a nominal headroom of 9mm between the boards.
Page 25 Technical Information C43-SATA • SATA/USB Mezzanine Module C43-SATA over PC1-GROOVE CPU Carrier Card C43-SATA over PC2-LIMBO CPU Carrier Card © EKF -25- ekf.com...
Page 26 Technical Information C43-SATA • SATA/USB Mezzanine Module C43-SATA on PCS-BALLET Mezzanine Side Card (8HP Assembly w. CPU Carrier) © EKF -26- ekf.com...
Page 27: Schematics
Technical Information C43-SATA • SATA/USB Mezzanine Module Schematics Complete circuit diagrams for this product are available for customers on request. Signing of a non-disclosure agreement would be needed. Please contact sales@ekf.de for details. EKF reserves the right to refuse distribution of confidential information material for any reason that EKF may consider substantial.
Page 28 Technical Information C43-SATA • SATA/USB Mezzanine Module Industrial Computers Made in Germany boards. systems. solutions. EKF Elektronik GmbH Phone +49 (0)2381/6890-0 Philipp-Reis-Str. 4 Fax +49 (0)2381/6890-90 59065 Hamm Internet www.ekf.com Germany E-Mail info@ekf.com...
