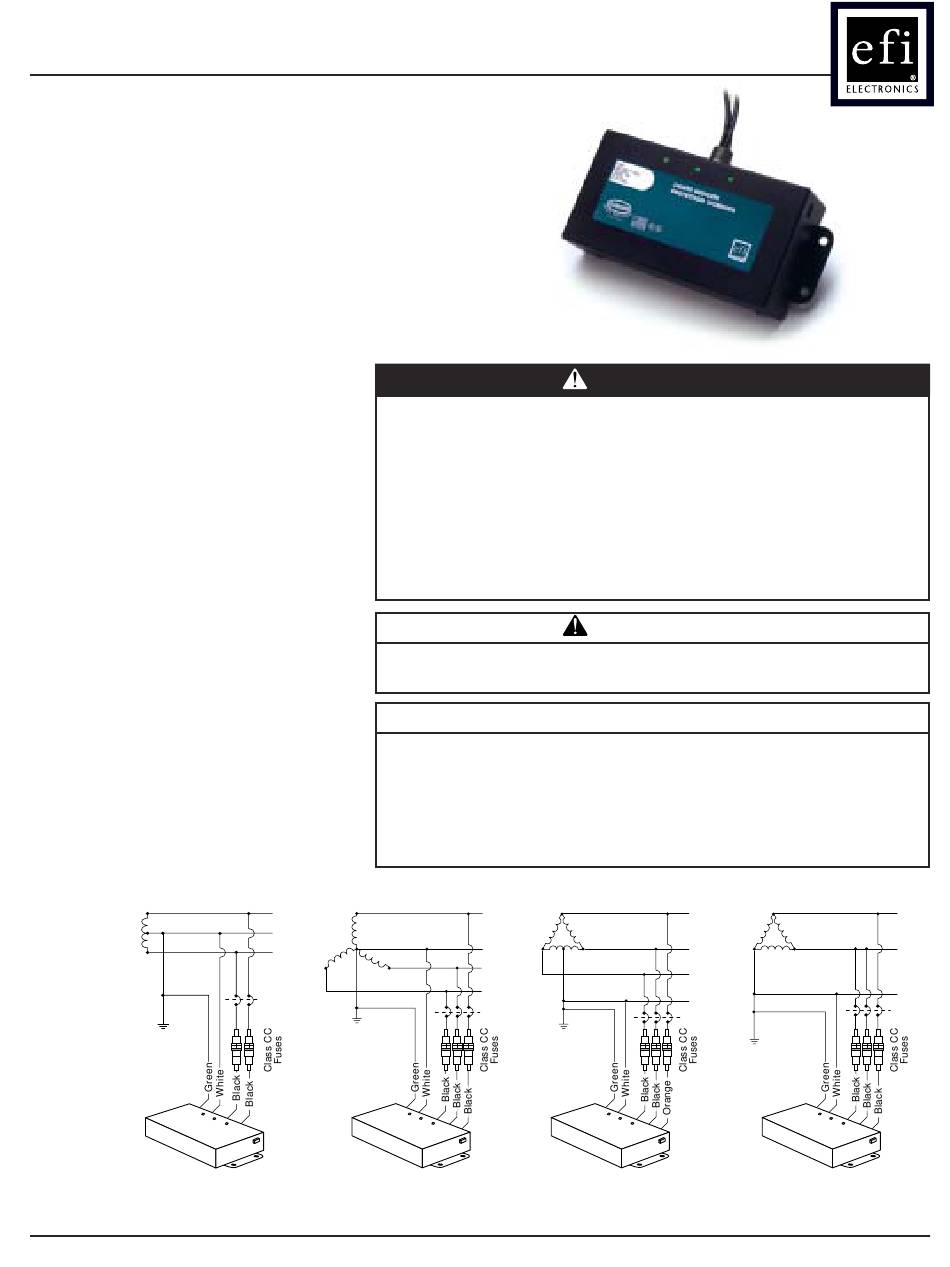

EFI Titan 100WF Instruction Bulletin

Instruction Bulletin
Titan 100WF
Transient Voltage Surge
Suppressor (TVSS)

PRECAUTIONS

INSTALLATION

1Ø 3-wire 120/240 Vac
Figure 1: Wiring Diagrams
© 2003 EFI Electronics Corporation All Rights Reserved
HAZARD OF ELECTRIC SHOCK, BURN OR EXPLOSION.
• This equipment must be installed and serviced only by qualified electrical
personnel in accordance with National and Local Electrical Codes.
Turn off all power supplying this equipment before working on or inside
•
enclosure containing this equipment.
• Always use a properly rated voltage sensing device to confirm power is off.
• Replace all devices, doors, and covers before turning on power to this equipment.
Failure to follow these instructions will result in death or serious injury.
Not for use on ungrounded systems.
Failure to follow these instructions can result in death or serious injury.
HAZARD OF EQUIPMENT DAMAGE.
• Megger ® or hi-potential tests will damage this surge protective device. Turn off
all power supplying the equipment and isolate the surge protective device before
testing.
• Must be installed with provided class CC fuses.
Failure to follow these precautions can result in equipment damage.
L1
N
L2
3Ø 4-wire 208Y/120 Vac,
380Y/220 Vac, 480Y/277 Vac,
or 600Y/347 Vac
DANGER
WARNING
CAUTION
L1
N
L2
L3
3Ø 4-wire 240D/120 Vac
8287-0001C 03/03
L1
L2
L3
N
3Ø 3-wire (grounded B phase)
240D Vac, 480D Vac or 600D Vac
L1
L2
N
1
