Summary of Contents for OMEGA AIR AWS

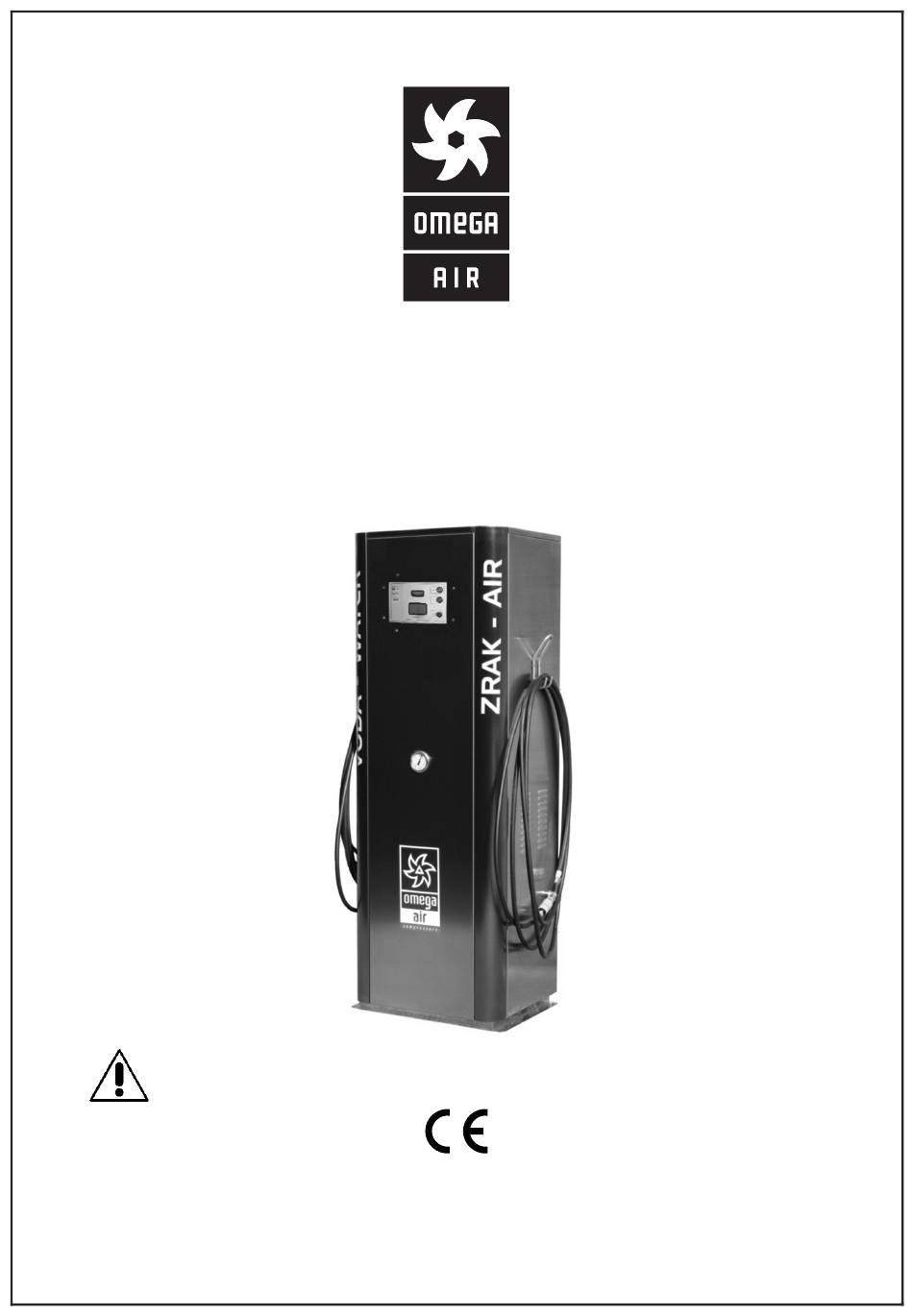

- Page 1 Please read the manual thoroughly, before putting the unit into service. Only if you follow and respect the directions and advice provided by the manual, can we ensure safe and reliable operation of the unit. Omega Air User Manual AWS v1.10 Eng...
-
Page 2: Equipment Presentation
EQUIPMENT PRESENTATION The AWS equipment is a comprehensive solution for gas stations. It includes a compressor, a manometer for tire-inflation and water supply. The components are assembled in a compact housing made of stainless steel. -
Page 3: Location Requirements
LOCATION REQUIREMENTS The AWS equipment is not protected against explosions, and as such it must not be installed in a dangerous environment. The surface where the equipment is supposed to stand has to be completely flat. The preparation of the basis of the equipment is described in the attachments on the last page of this manual. -
Page 4: Installation And Connection
Preparing the place for installation and assembly Example of the basis: Picture 1: Dimensional drawing of the AWS basis At the basis, if there is a shaft a steel construction is advised (contact the manufacturer). The preparation of an appropriate basis is shown in the attachment. When setting up the foot of the equipment, spacers are mandatory for the connection of the foot and the basis. - Page 5 . If different regulations apply for your region, you are obligated to follow these. The AWS has to be operated outdoors or in a room with sufficient ventilation, because the equipment emits a high amount of heat when turned on. The working space needs proper openings for cooling.
-
Page 6: Electrical Connection
AWS Installation and operating manual Electrical connection Only qualified personnel, is allowed to set up the electrical connection. Prepare the main plug with the main switch and a proper fuse (or circuit-breaker) for the electro connection of the equipment. Grounding is mandatory. Before the start-up check all the connections and fix them if necessary. -
Page 7: Compressor Information
AWS Installation and operating manual After the checks, plug the equipment in and turn it on by switching the pressure switch to ON – 1 (With three-phased motors check also the rotation of the motor). To turn the motor off, just switch the button on the pressure switch to OFF – 0 (picture 6). -
Page 8: Compressor Operation
AWS Installation and operating manual COMPRESSOR OPERATION The operation of the compressor is directly controlled by the pressure switch, which immediately terminates the energy supply when the pressure in the tank reaches the determined value and connects again, when the pressure reaches a value, 2 bar bellow the maximum allowed pressure. - Page 9 AWS Installation and operating manual Proper and regular maintenance of the compressor is the first step toward ensuring it a long lifetime. To even improve that, we have created a table with a summary of all the maintenance work and checking. Service hours in the table represent the intervals of maintenance at which it should be carried out to keep a reliable operation level.
-
Page 10: Air Intake Filter
AWS Installation and operating manual Air intake filter Each month the intake filter should be checked for presence of dust. If there is a high amount of dust, clean it weekly. The filter cartridge is of a dry type. It is to be replaced about each 500 working hours. - Page 11 The mandatory safety check of reliability and the setting of the safety valve are to be carried out once a year by authorized personnel or by the Omega air service team. About the checks and setting of the safety valves, a record is to be lead.
-
Page 12: User Interface Settings
AWS Installation and operating manual Check the compressor unit thoroughly and change the belts; Excessive consumption; Consider and check any possible point of Large changes in the oil Leakage; leakage; level. High emulsifying and rising. Change the oil more frequently and move the compressor to a place with less humidity and better heating. - Page 13 AWS Installation and operating manual Set the desired pressure with the + and – buttons. Attach the air hose to the valve on the tire. The pressure correction starts automatically. The green light and the sound signal indicate finished pressure correction. Detach the hose.
-
Page 14: Tehnični Podatki
AWS Installation and operating manual TEHNIČNI PODATKI Picture 11: Dimensions Width A=545mm Depth B=445mm Height H=1550mm Max. working pressure 10bar Air flow (ISO 1217) 250Nl/min Pressure tank volume 16,6l Electromotor power 1,5kW Sound level (at 1m) 68 +/- 2dB Voltage... - Page 15 AWS Installation and operating manual MAINTENANCE AND SAFETY INTERVALS FOR THE AWS Every 500 Every 1000 Intervention Weekly Monthly hours hours Condensate drain Check the oil level Check the safety valve Check the belt Check for oil leakage Air filter cleaning...
- Page 16 Regularly check the condensate separator if dirty or full with condensate. Except for the mentioned, the equipment does not need any additional maintenance. Service 24 hours Slovenia OMEGA AIR d.o.o., Cesta Dolomitskega odreda 10, 1000 Ljubljana Tel.: 01-200-68-31 Fax: 01-200-68-50 info@omega-air.si...
- Page 17 AWS Installation and operating manual www.omega-air.si...
- Page 18 It is recommended to integrate a steel construction in the basis (contact the manufacturer for further information). This improves the attachment of the housing to the ground. When attaching the housing of the AWS it is mandatory to use spacers with the bolts for the basis and housing connection.±...
- Page 19 AWS Installation and operating manual www.omega-air.si...
- Page 20 AWS Installation and operating manual www.omega-air.si...
