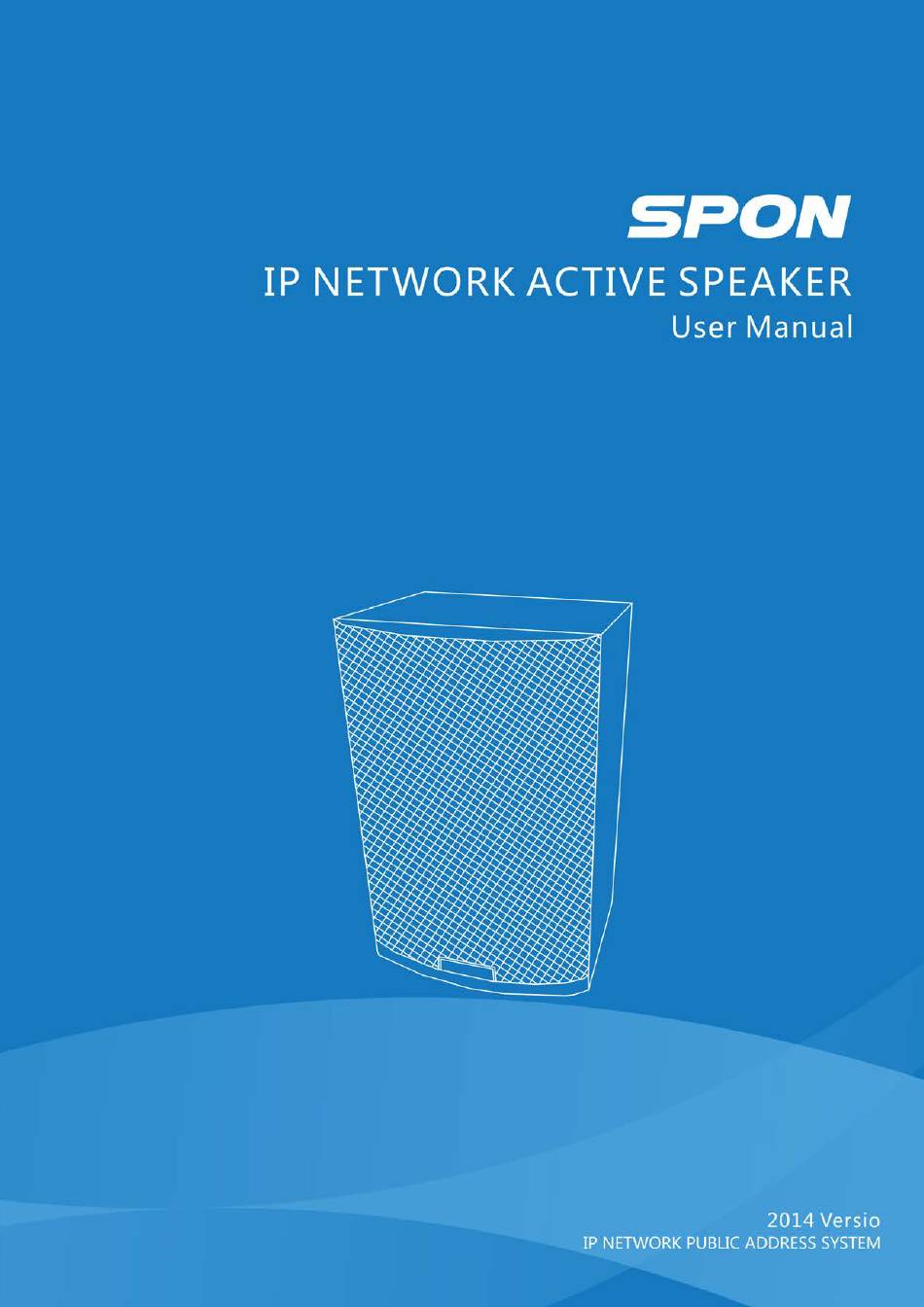

- Page 1 IP network active speaker User Manual...
-
Page 2: Table Of Contents
Contents Summarize ........................................1 Safety precaution ......................................1 Product Introduction......................................2 Hardware Interface Introduction..................................2 Introduction ........................................3 Packing list ......................................... 3 Wiring ..........................................4 Basic Network Setting ...................................... 5 User-define terminal parameters ................................6 Login web interface ......................................6 Network Parameters ...................................... -
Page 3: Summarize
IP network active speaker User Manual Summarize Safety precaution Please abide by the warning and the relevant safety tips. Please take this manual in convenient place after you reading the guide for future reference. Warning The sign means there is potential safety hazard, when operate wrong may result in death or serious injury. The sign is used to remind the user that attached is the important operation and maintenance data. -
Page 4: Product Introduction
IP network active speaker User Manual Product Introduction IP network active speaker which is embedded with the IP Audio digital network audio technology of independent intellectual property rights. It’s equipped with power input interface， line input and line output interface , RJ45 network interface,2.4G wireless module is available and deputy speaker output . -
Page 5: Introduction
IP network active speaker User Manual Green normally on The terminal logined and in free status. Green flash The terminal logined and receiving broadcasting. ③ LAN：The network interface, 10M/100M self-adaption. ④ UPDATE：Force upgrade button or play the device IP. ⑤ LINE: Line input/output interface. IN: Line input interface: 0.775V/10KΩ... -
Page 6: Wiring
IP network active speaker User Manual （4）Double 3.5 audio line（2.5m） 1pcs （5）Terminal Connector（5.08-2P）1pcs (only for constant pressure backup) （6）The power adapter（DC24V/1A） 1pcs （7）Red & black flat cable 1 pcs (For deputy speaker use only) （8）Quick installation guide 1pcs （9）Certification 1pcs Wiring （1）Connect one port of the power adapter with IP network active speaker power interface, the other one connect to the outlet. -
Page 7: Basic Network Setting
IP network active speaker User Manual Basic Network Setting Connect the cable and power on as per the installation manual, then revise the terminal network parameters according to the live environment, There have below two methods: Terminal Equipment Scanning Tools 1．From [CD: \ tools \] directory to find and run "IP configuration tool"... -
Page 8: User-Define Terminal Parameters
IP network active speaker User Manual 2、Terminal equipment scanning tools can only configure one terminal at one time. Please make sure that a computer only connect one target terminal when using this method. Webpage Mode Enter into the IP network active speaker web interface, then modify the terminal each parameters according to the environment, after setting completed, click “save”. -
Page 9: Network Parameters
IP network active speaker User Manual Network Parameters Click “network parameters” from the basic settings enter into the network parameters modification interface, it can modify the following network parameters, select the auto update, if started the version server, the terminal can automatically detect the current firmware whether it`s latest version or not during login the server, if it`s not the latest version, then it will update to the latest version automatically. -
Page 10: Audio Parameters
IP network active speaker User Manual Audio parameters Enter into the “audio parameters” from “basic setting” can set audio coded format, volume, sampling rate and so on. Intercom or broadcast code, PCM means uncompressed data, ACPCM Coding mode means compressed data( Small amount of network data ) Line input volume The volume of the audio line input Line input sound source... -
Page 11: Audio Automatic Detection Function
IP network active speaker User Manual power amplifier open automatically. Power amplifier normally open: no matter the audio can be received or not, power amplifier will be open always. please select use the examination mode or not. Use: Start using the examination mode, the system will shield line input Examination mode(only and 2.4G wireless handset function. -
Page 12: Reboot Device
IP network active speaker User Manual Reboot Device Note: the revised parameters will be workable after the device restarted. Restore Factory Setting Restore factory setting: all parameters were restored to factory setting. Firmware Upgrade Visit the terminal Web pages from Web browser, click the "device maintenance" - >"system tools" - >"firmware upgrade", click "enter the firmware upgrade mode"... -
Page 13: Fault Exclude
IP network active speaker User Manual Fault Exclude Why the terminal is still "offline"? 1).Check the software server and the main controller is normal opened or not. It`s required to close all firewall before open the software server (including system built-in firewall and other antivirus software firewall) 2).Check the network connection is normal or not. -
Page 14: Copyright Announcement
According to the legal provisions, copy including translate to other language or switch to other format. Mentioned document spreading in network media, SPON allow download and print for personal uses. Any parts of the document can not be modified and for commercial uses. If any damage and losses which is caused by illegality modify and switch the document, SOPN shall not take any responsibility.
