Product Rear View - Lenovo Legion BoostStation User Manual

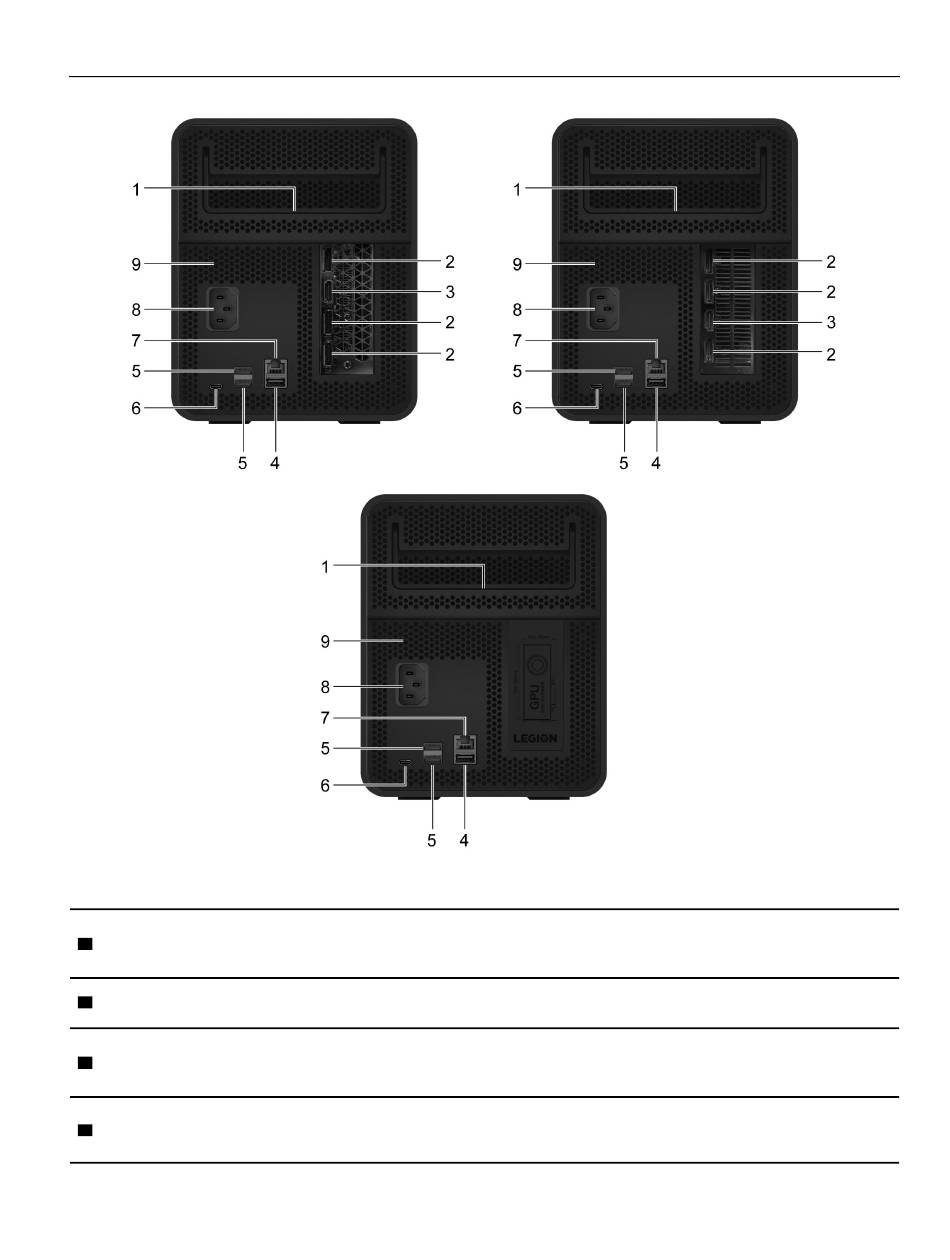

Product rear view

Note: The appearance of the backboard corresponds to the configuration selected by the user.
1
Handle
2
DisplayPort connectors
3
HDMI connector
4
USB 2.0 connector
Use to pull the inner dock out, do not use the handle to carry the dock.
Note: The handle is strictly for removing the inner dock. Use of the handle to carry the
dock may result in the inner dock falling.
Connect a high-performance monitor, a direct-drive monitor, or other devices that use
a DisplayPort connector.
The High-Definition Multimedia InterfaceTM (HDMI) connector is a digital audio and
video interface. It enables you to connect your computer to a compatible digital audio
device or video monitor, such as a DVD player or an HDTV.
Connect a USB-compatible device, such as a USB keyboard or a USB mouse.
Note: For optimal data transfer, connect a USB 3.2 device to a USB 3.2 connector
Gen 1 instead of a USB 2.0 connector.
.
