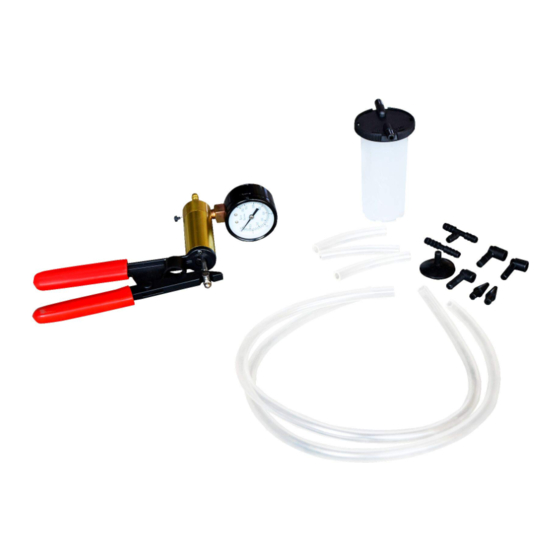

BRAKE BLEEDER AND VACUUM PUMP KIT
*Actual product may vary slightly
Please carefully read and save these instructions before attempting to assemble, maintain, install, or operate this product.
Observe all safety information to protect yourself and others. Failure to observe the instructions may result in property
damage and/or personal injury. Please keep instructions for future reference.
For warranty purchases, please keep your dated proof of purchase. File or attach to the manual for safe keeping.
For Customer Service, Call 1-800-348-5004
39220
03/2017
or e-mail customerservice@focus-ontools.com
Advertisement
Table of Contents
Summary of Contents for Steel Core 39220
- Page 1 Observe all safety information to protect yourself and others. Failure to observe the instructions may result in property damage and/or personal injury. Please keep instructions for future reference. For warranty purchases, please keep your dated proof of purchase. File or attach to the manual for safe keeping. For Customer Service, Call 1-800-348-5004 39220 03/2017 or e-mail customerservice@focus-ontools.com...
-
Page 2: Specifications
SPECIFICATIONS 0-30 IN. of mercury (in Hg) Gauge Range 0-760 torr IMPORTANT SAFETY INFORMATION WARNING! READ AND UNDERSTAND ALL INSTRUCTIONS Failure to follow instructions listed below may result in serious injury. SAVE THESE INSTRUCTIONS 1. Keep bystanders, children, and visitors away while operating the Vacuum Pump. Distractions can cause you to lose control. - Page 3 11. Tool service must be performed only by qualified repair personnel. Service or maintenance performed by unqualified personnel could result in a risk of injury. 12. When servicing a tool, use only identical replacement parts. Follow instructions in the section of this manual. Use of unauthorized parts or failure to follow maintenance instructions may create a risk of injury.
-
Page 4: Setup Instructions
SETUP INSTRUCTIONS 1. Open the Cup (3). 2. Seat the O-ring (11) completely into the groove in the top of the Cup (3). 3. Remove the shipping spacer that prevents the Vacuum Pump (1) handle from moving through its full range. 4. -
Page 5: Brake Bleeding
BRAKE BLEEDING 1. Attach a 3" Hose (5) to the bottom of the Suction Lid (2a). 2. Attach a 23" Hose (4) to the port on the top of the Suction Lid (2a) that does not have the 3" Hose attached, as shown in Figure A. Then, attach the other end of that 23" Hose to the Vacuum Pump (1). -
Page 6: Maintenance And Servicing
9. Release the vacuum in the Vacuum Pump (1) with the Vacuum Release Valve. Then, disconnect the Brake Bleed Screw Adapter (9) from the vehicle’s brake caliper bleed screw. Note: Do not allow the cup to fill completely with brake fluid. When necessary, release the vacuum in the tool and empty its Cup (3) of old brake fluid. -
Page 7: Parts List And Diagram
PARTS LIST AND DIAGRAM Part Description Part Description Vacuum Pump “T” Hose Connector Suction Lid Straight Hose Connector Transport Lid Brake Bleed Screw Adapter A 4 oz. Cup Brake Bleed Screw Adapter B " x 23" Vacuum Hose Brake Bleed Screw Adapter C "... - Page 8 Limited Manufacturer Warranty FOT makes every effort to ensure that this product meets high quality and durability standards. FOT warrants to the original retail consumer a 1-year limited warranty from the date the product was purchased at retail and each product is free from defects in materials.
