Summary of Contents for Connected Inventions Detectify R3.2

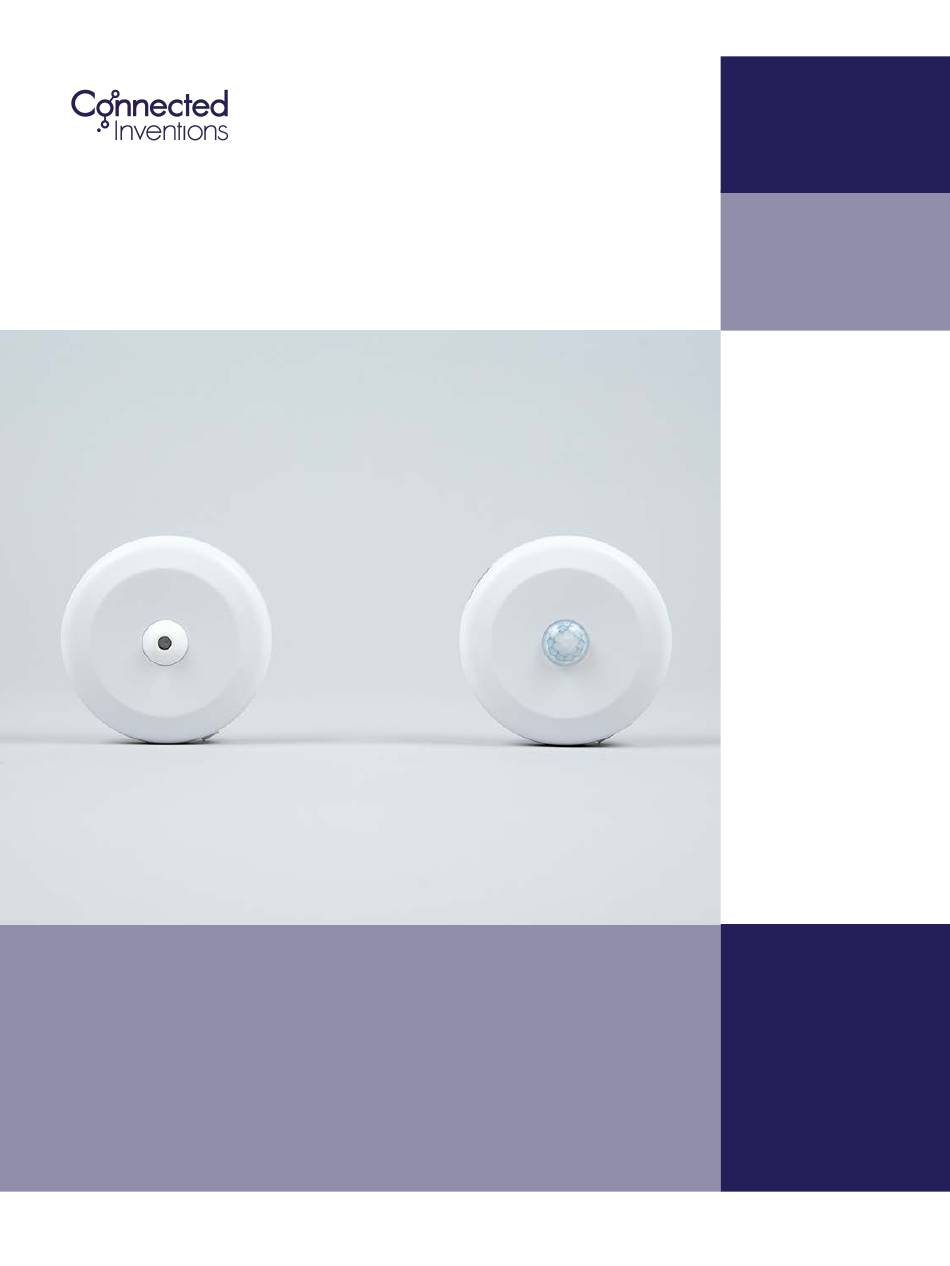

- Page 1 Connected Detectify User Manual Last updated July 2020 Detectify Connected Detectify is a motion detector for indoor R3.2 purposes, based on a passive infrared technology sensor with a detection area of up to 5 meters. www.connectedinventions.com...
-
Page 2: Table Of Contents
Contents Using this manual Read me first About the device Function Assembling and Installation Uplink: Payload description Downlink Downlink: Payload Description Troubleshooting Technical Specification... -
Page 3: Using This Manual
• The contents of this manual may differ from software provided by service providers or carriers, and are subject to change without prior notice. • Access the Connected Inventions website (www.connectedinventions.com) for the latest version of the manual. • Available features and additional services... - Page 4 • Applications on this device may perform differently from comparable applications and may not include all functions available (by ie. downlink messaging features) • Connected Inventions is not liable for performance issues caused by third-party applications or improper installation. • Please keep this manual for future reference.
-
Page 5: About The Device
About Connected Inventions Detectify is an industry grade passive infrared (PIR) sensor for movement detection indoors. The device utilises ultra low power two way radio communications with Sigfox network technology. The device is battery powered and with normal usage running default settings, the batteries will last up to five years. - Page 6 90 degree wide detection angle for sensing motion in rooms. 30 degree narrow detection angle for more restricted areas.
-
Page 7: Function
Period Activity Detectify R3.2 has two modes: Activity mode (AM) and Inactivity mode (IM). In Inactivity mode, the device waits to detect movement. Once movement is detected, the mode is changed to Activity Mode, Activity Counter and Cumulative Activity Counter are incremented and message is sent immediately. - Page 8 State transition example where inactivity report has activity count = 0. State transition example where inactivity report has activity count > 0.
-
Page 9: Assembling And Installation
Assembly & Installation Save the identifier and the key of the device. The identifier and the PAC key are on the label on the bottom of the device. You can also read the identifier and the PAC key using the QR code. The picture below is an example of a label. - Page 10 • Install the device to a suitable position to detect movement. Maximum detection distance is approximately five meters. • The detection angle of the device i s a b o u t 3 0 o r 9 0 d e g re e s depending on the version.
- Page 11 After attaching the screw plate, place the device to screw plate so that the pins fall through twist-holes on the bottom of the device and twist clockwise until the device locks into place. For work desk installation, make sure the hinge of the Antenna screw plate is pointing to metal support structure (if...
-
Page 12: Uplink: Payload Description
Uplink: Payload description BYTE TYPE DESCRIPTION Reserved boolean Activity update boolean Full TX power mode 0=off,1=on boolean Power control 0=off, 1=on UINT4 Version 0-15 UINT16 Activity count 0-32 UINT32 Cumulative activity count 7-11 Reserved... - Page 13 0x2d00010000257 Uplink message example: Version Power control Full TX power mode Activity update false Activity count Cumulative activity count...
-
Page 14: Downlink
Downlink • Settings of the device can be updated with the downlink message • Device requests new settings approximately every 24 hours • You must be very careful when you update the settings • settings affect both the subscription and the battery life of the device! •... -
Page 15: Downlink: Payload Description
Downlink: Payload description BYTE TYPE DESCRIPTION Power control reconfigure boolean boolean Power control on Reserved UINT8 Activity Reporting Period (1+n)*(5min30sec) UINT8 Inactivity Reporting Period (1+n)*(5min30sec) UINT8 Inactivity Detection Period (1+n)*(5min30sec) Reserved, set to 0... - Page 16 Downlink message example: 0x 0303530000000000 Power control reconfig. True Power control on True Activity reporting period 3 -> [(1+3)*5min30sec = 22min] Inactivity reporting period 53 -> [(1+53)*5min30sec = 5hours] Inactivity detection period 0 -> [(1+0)*5min30sec= 5min30sec] Make sure the new settings are valid before applying them! •...
-
Page 17: Troubleshooting
• Check the operation mode of the device. • Incorrect downlink configuration will affect the behaviour of the product. • Ensure the configuration is properly done. solutions@connectedinventions.com +358 103115800 Connected Inventions, Spektri Business Park, Kvintti Building, Metsänneidonkuja 12, 02130 Espoo, Finland. connectedfinland connected_fin connectedinventions www.connectedinventions.com... -
Page 18: Technical Specification
Technical Specification Detectify R3.2 is a movement detector based on a PIR Description sensor (passive infrared radiation). 98 x 30 mm including the wall mount Size 110 g including batteries Weight IP rating IP20 2 x AA 3.6V Batteries 5,400 mAh...
