Summary of Contents for EmerCom Technologies LAN-EX Series

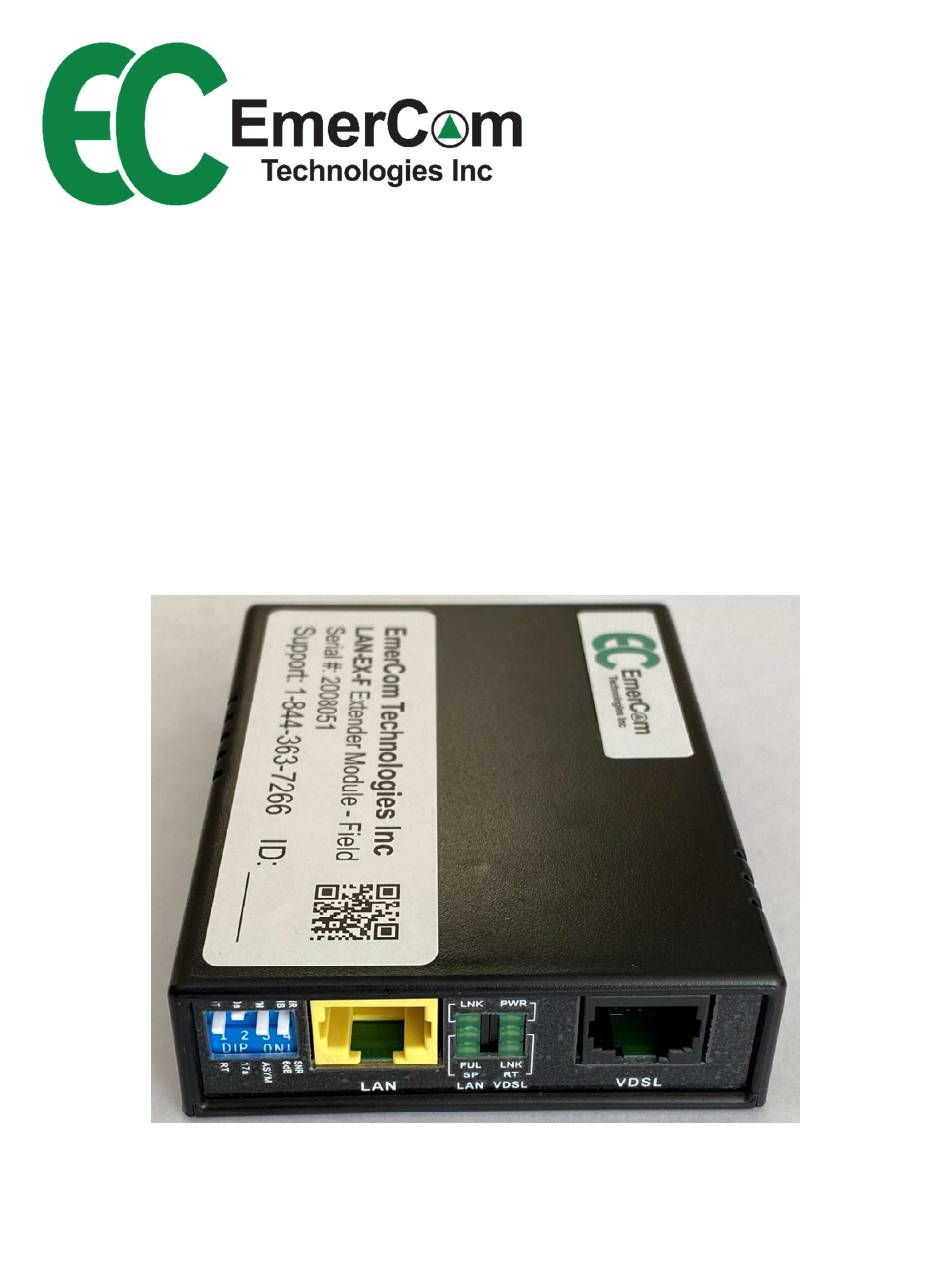

- Page 1 Ethernet LAN Extender USER GUIDE LAN-EX for an Elevator Media Player...
- Page 2 LAN-EX User Guide Other Models LAN-EX-G LAN-EX-4G LAN-EX-F (Elevator Cab Kit) - 2 -...
- Page 3 LAN-EX User Guide LAN-EX-H (Typical Elevator Machine Room Panel/Kit) Connect STP from cab Ground shield Connect CAT-6 from Server Ground shield Connect 120VAC power in conduit - 3 -...
- Page 4 LAN-EX User Guide Quick Start Guide 1 Connect Machine Room wiring: VDSL terminals in Machine Room Panel to STP in Controller from traveling cable (match correct cab number) CAT-5e or CAT-6 Cable to Media Server from Machine Room Panel Switch Connect cab wiring: ...
- Page 5 EmerCom Technologies Inc does not assume liability arising from the application or use of any product or circuit described herein; neither does it convey any license under its patent rights nor the rights of others.
-
Page 6: Table Of Contents
LAN-EX User Guide Contents About the EMC-LAN-EX LAN Extender ................... 7 Description..........................7 Key Features ..........................7 Description of Operation: ......................8 Circuit Board Layout & Connections....................9 Front Panel ..........................9 LED activity if operating correctly: .................... 9 The LAN status LEDs indicate: ....................10 The VDSL status LEDs indicate: .................... -
Page 7: About The Emc-Lan-Ex Lan Extender
LAN-EX User Guide 1. About the EMC-LAN-EX LAN Extender 1.1 Description The LAN-EX transmits high-speed Ethernet over long distances on STP (Shielded Twisted Pair) which is particularly relevant for elevator hoistways which are electrically “noisy” (both electrostatic and electromagnetic) compared to standard LAN Extenders requiring unshielded wiring which would be significantly more susceptible to noise. -
Page 8: Description Of Operation
LAN-EX User Guide 2. Description of Operation: Select the settings on the DIP switches to suit the operation required: Asynchronous for media player only (faster in one direction) Synchronous for media player and camera Select the profile (DSL mode) for the highest data rate or longest distance ... -
Page 9: Circuit Board Layout & Connections
LAN-EX User Guide 3. Circuit Board Layout & Connections 3.1 Front Panel Front panel can be separated into five parts from left to right: DIP switch (head-end or field/profile/uni- or bi-directional/signal:noise) RJ45 connector for Ethernet (LAN) LEDs for LAN (left-hand column) ... -
Page 10: The Lan Status Leds Indicate
LAN-EX User Guide 3.3 The LAN status LEDs indicate: LEDs for Blinking Data activity Linked Not linked 100 Mbps 10 Mbps Full Duplex Half Duplex 3.4 The VDSL status LEDs indicate: LEDs for VDSL Blinking... -
Page 11: Connections
LAN-EX User Guide 3.5 Connections - 11 -... -
Page 12: Connector Pin-Outs
LAN-EX User Guide 3.6 Connector Pin-Outs - 12 -... -
Page 13: Diagnostics
LAN-EX User Guide 4. Diagnostics See section 3.2 5. Dimensions 3-3/4” (96.2 mm) long x 2-7/8” (73.4 mm) wide x 7/8” (22.8 mm) thick 6. Ordering Model and description LAN-EX-P - Lan Extender “paired” Pair LAN-EX-H - Lan Extender – Head-End LAN-EX-F - Lan Extender –... -
Page 14: Precautions
LAN-EX User Guide 7. Precautions Always follow basic safety precautions when using your communications equipment to reduce the risk of fire, electrical shock and injury. 1. Read and understand all instructions in the User Guide. 2. Read all warnings and follow all instructions. 3. -
Page 15: Warranty
We will provide the buyer all assistance possible to adjust such claims. EmerCom Technologies Inc shall not be liable for any loss or damage resulting from causes beyond its reasonable control and in no event whatsoever shall we be liable for consequential damages resulting in personal injuries, property damage or economic loss to any party.
