MAP-01 USER MANUAL
GENERAL SETTINGS
1. ENCODER

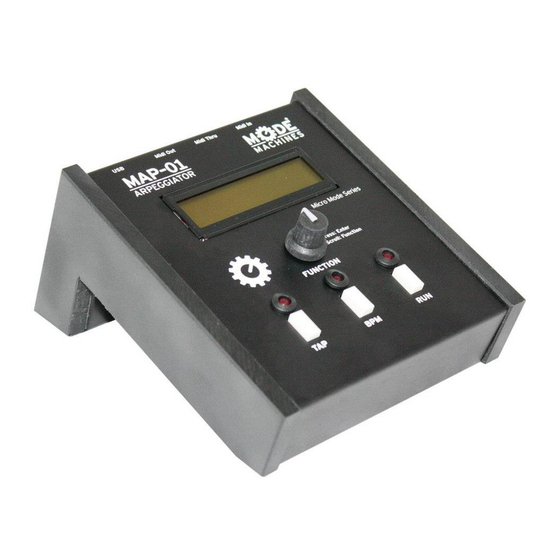

The encoder underneath the display is used to scroll through the menu. By turning left or right
you can change the settings. After powering on the unit, you are automatically in the selection
mode. Here you can now scroll through the menu and search for the desired parameters. First,
the Version Number will occur for x seconds and finally the Mode Machines Logo. After that
you have to turn the encoder to enable all functions.
2. CHANGING THE PARAMETERS
By pressing the encoder you will reach the next level and by turning the encoder you will be
able to edit the selected parameter. By pressing the encoder again you can jump back to the
highter menu level. The right switch activates the arpeggio to ON and OFF. Please refer to
explanation in thr setting MIDI OUTPUT.
The switch in the middle allowes a quick change of the BPM setting. Press it and the BPM value
will pop up which you can change by turning the encoder. By pressing thr knob again will
show the previous display setting again. The knob on the left has various functions depending
on the settings in parameters SPECIAL. Please refer to the explanation of this parameter later.
ARPEGGIATOR STYLES
3. ARPEGGIATOR STYLES
There are three basic arpeggiator styles on boars ( also RANDOM, but this can be found at a
later stage with separate explanation!)
3.1 ARPEGGIO STYLE (UPWARD)
- the arpeggio is played upwards
3.2 ARPEGGIO STYLE (DOWNWARD)
- the arpeggio is played downwards
