Ram Mounts TOUGH-TRAY II Assembly Manual

RAM® TOUGH-TRAY II™ ASSEMBLY GUIDE (SIDE A)

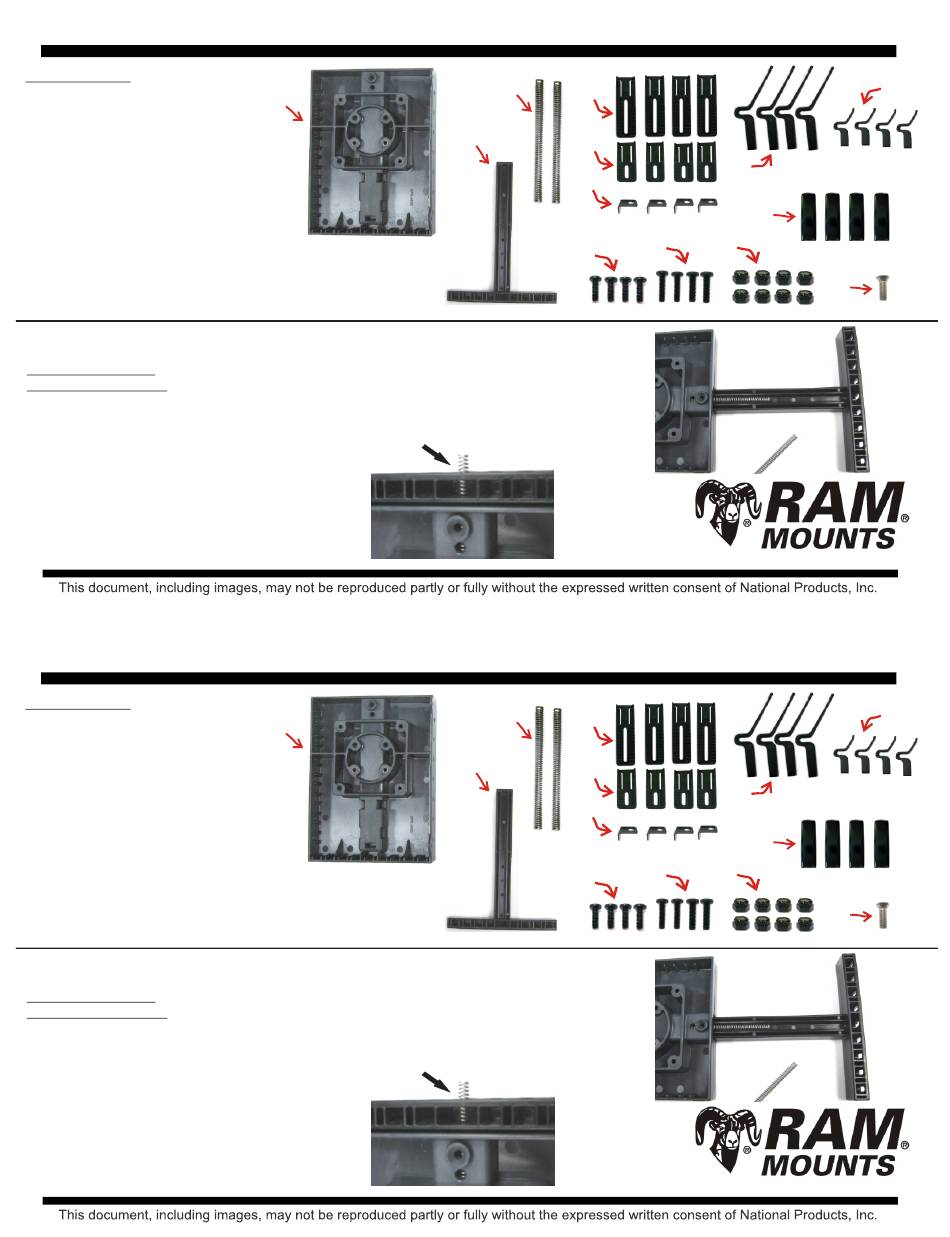

PARTS INDEX
A. TRAY HOUSING (QTY. 1)
B. TRAY SLIDE (QTY. 1)
C. SPRING (QTY. 2)
D. FLAT ARM LONG (QTY. 4)
E. FLAT ARM SHORT (QTY. 4)
F. STEEL L-BRACKET (QTY. 4)
G. FLEX ARM LONG (QTY. 4)
H. FLEX ARM SHORT (QTY. 4)
J. BLACK VINYL CAP (QTY. 4)
K. 8-32 X ½" STST PH PD MACH SCREW (QTY. 4)
L. 8-32 x 5/8" STST PH PD MACH SCREW(QTY. 4)
M. 8-32 NYLOCK NUT (QTY. 8)
N. 10-24 X 5/8" FH PD STST MACH SCREW (QTY. 1)
1. PLACE (B) TRAY SLIDE PARTIALLY INSIDE (A) TRAY HOUSING. INSERT
(C) SPRINGS IN SLOT OF (B) TRAY SLIDE. SKIP TO STEP 3 IF ONLY USING ONE SPRING
FOR ONE SPRING: MIN. WIDTH 11";
FOR TWO SPRINGS: MIN. WIDTH 8.56";
RAM Mounting Systems
8410 Dallas Ave S
Seattle, WA 98108
Phone: (206) 763-8361
Fax: (206) 763-9615
www.rammount.com
support@rammount.com
RAM® TOUGH-TRAY II™ ASSEMBLY GUIDE (SIDE A)
PARTS INDEX
A. TRAY HOUSING (QTY. 1)
B. TRAY SLIDE (QTY. 1)
C. SPRING (QTY. 2)
D. FLAT ARM LONG (QTY. 4)
E. FLAT ARM SHORT (QTY. 4)
F. STEEL L-BRACKET (QTY. 4)
G. FLEX ARM LONG (QTY. 4)
H. FLEX ARM SHORT (QTY. 4)
J. BLACK VINYL CAP (QTY. 4)
K. 8-32 X ½" STST PH PD MACH SCREW (QTY. 4)
L. 8-32 x 5/8" STST PH PD MACH SCREW(QTY. 4)
M. 8-32 NYLOCK NUT (QTY. 8)
N. 10-24 X 5/8" FH PD STST MACH SCREW (QTY. 1)
1. PLACE (B) TRAY SLIDE PARTIALLY INSIDE (A) TRAY HOUSING. INSERT
(C) SPRINGS IN SLOT OF (B) TRAY SLIDE. SKIP TO STEP 3 IF ONLY USING ONE SPRING
FOR ONE SPRING: MIN. WIDTH 11";
FOR TWO SPRINGS: MIN. WIDTH 8.56";
RAM Mounting Systems
8410 Dallas Ave S
Seattle, WA 98108
Phone: (206) 763-8361
Fax: (206) 763-9615
www.rammount.com
support@rammount.com
A
MAX WIDTH 13"
MAX WIDTH 11.12"
ADD SECOND SPRING SO THAT IT
PROTRUDES FROM END OF (B) SLIDE.
A
MAX WIDTH 13"
MAX WIDTH 11.12"
ADD SECOND SPRING SO THAT IT
PROTRUDES FROM END OF (B) SLIDE.
C
D
B
E
F
K
ONE OR BOTH
C
D
B
E
F
K
ONE OR BOTH
G
J
M
L
RMR-INS-2346
G
J
L M
RMR-INS-2346
H
N
H
N
