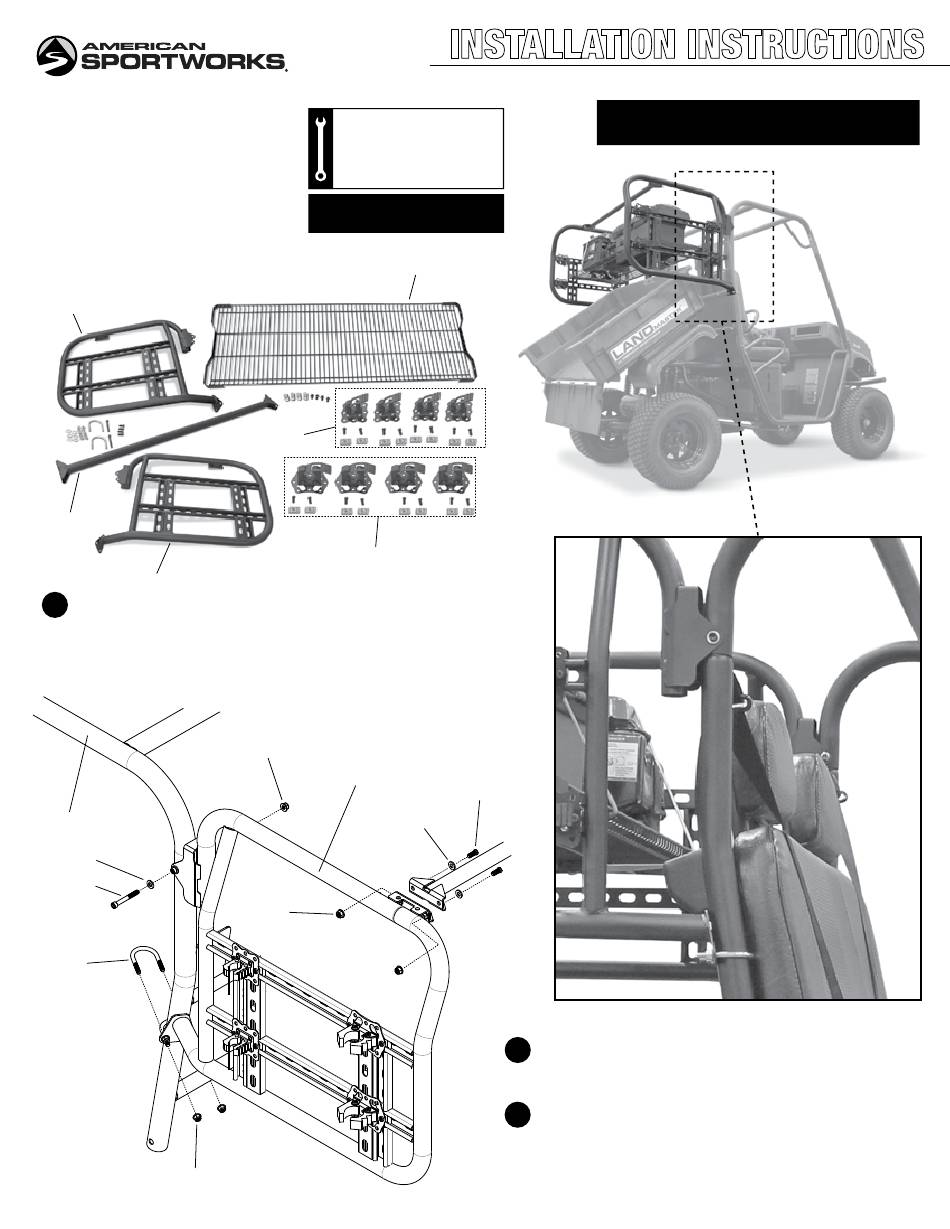

AMERICAN SPORTSWORKS CREWMATE 16265 Installation Instructions

800-643-7332
As illustrated below, this kit contains:
16310-2 crew mate LH side panel
16311-2 crew mate RH side panel
16305-2 crossbar
16306 utility shelf
16360 small tool clamp kit (2 clamps per kit) Qty: 2
16361 large tool clamp kit (2 clamps per kit) Qty: 2
16270 screw, 5/16" - 18 x .75 socket head
16277 screw, 5/16" - 18 x 2.5 socket head
16300 nut, 5/16"-18 nylon lock w/ flange
16301 u-bolt, 5/16"-18 x 1.25"
16302 washer, 5/16" SAE flat washer
16311-2
16360 small tool clamp
(2 clamps per kit - total of 4)
16305-2
16310-2
1 Refer to figure 1. Remove overhead bar bolt. Hold side panel up and align bolt holes
and insert 16277 (2.5") bolt and 16302 washer. Attach 16300 nyloc nut. Do not
completely tighten. Insert 16301 u-bolt under top seat back bar and behind seat
cushion. Attach 16300 nyloc nuts to u-bolt. Do not completely tighten. Repeat with
opposite side panel. Side panels can hang freely for remainder of installation.
Note: If U-bolt installation is tight, loosen phillips head screws on seat back
cushion. Seat back cushion does not need removed.
driver side overhead bar
16302
16277
16301
fig. 1
16300
CREWMATE
TOOLS REQUIRED
Qty: 1
5/32" Hex driver
Qty: 1
¼" Hex driver
Qty: 1
½" Wrench
Qty: 1 Phillips head screw driver
Additional shelves and clamps are
available from American SportWorks.
Qty: 4
Qty: 2
Qty: 10
Qty: 2
16306
Qty: 6
16361 large tool clamp
(2 clamps per kit - total of 4)
16300
16310-2
16302
16300
TOOL RACK FOR STRAIGHT BRUSH BAR UNITS (16265)
™
SEE PAGE 2 FOR INSTRUCTIONS IF YOUR VEHICLE
fig. 2
Finished installation
16270
fig. 3
2
Hold crossbar between side panels. Insert (4x) 16270 screw and 16302 washer.
Attach 16300 nyloc nut as shown in figure 1. Proper finished installation can be
seen in figures 2 & 3.
3
Insert 16306 shelf at angle and align channel nuts with channel. Insert opposite
end into channel as shown in figure 4. Channel nuts twist lock. Make sure the
channel nut is square in the channel as shown in figure 6. Tighten all fasteners
on the CrewMate™ at this time.
HAS A HARD TOP / ENCLOSURE.
page 1 of 4
