Summary of Contents for LyfTrack IR988

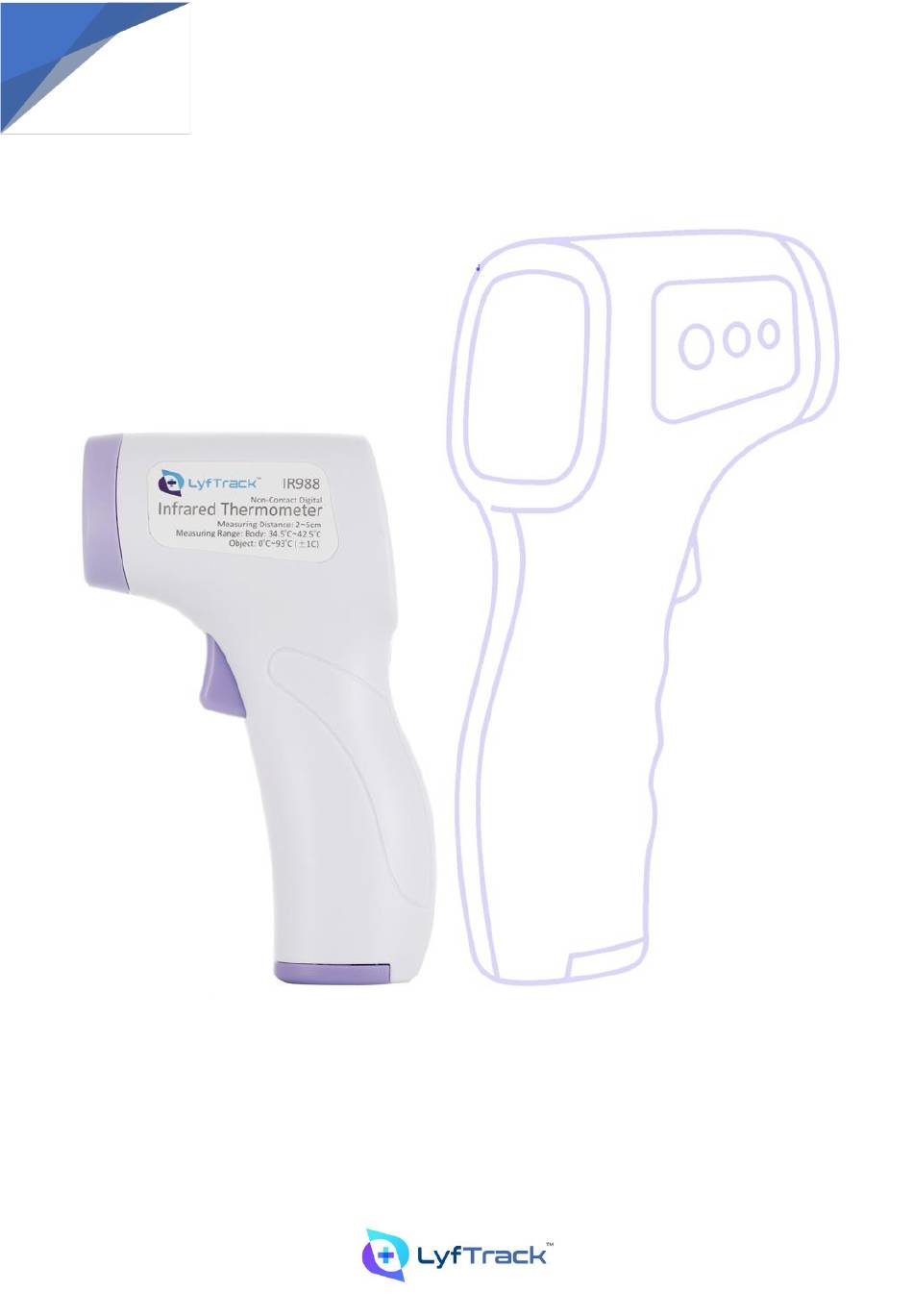

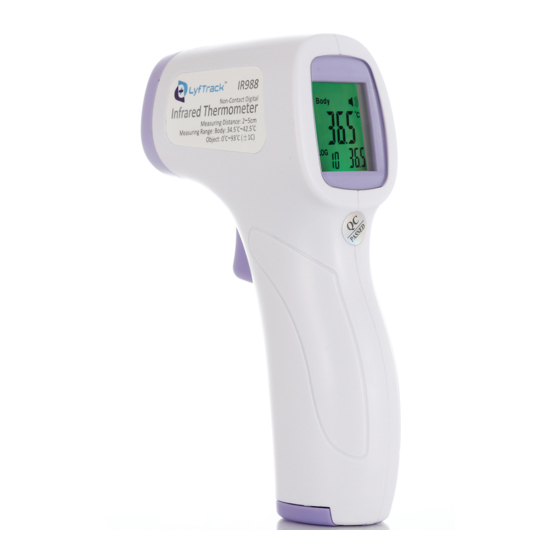

- Page 1 Model IR988 Non-Contact Digital Infrared Thermometer Instruction Manual Welcome to use the LyfTrack Infrared Thermometer IR988. To ensure the accuracy of measurement and safety of use, please read the manual carefully before use.
- Page 2 Model IR988 Non-Contact Digital Infrared Thermometer Instruction Manual INDEX INTRODUCTION COPE OF PPLICATION TRUCTURE AND OMPOSITION REVENTIVE XAMINATION TATEMENT SAFETY INSTRUCTION STRUCTURE INTRODUCTION LCD B ACKLIGHT OLOR ESCRIPTION HOW TO INSTALL BATTERIES MODIFY SETTINGS PERATIONS BODY TEMPERATURE MEASUREMENT URFACE EMPERATURE...
- Page 3 Model IR988 Non-Contact Digital Infrared Thermometer Instruction Manual 3.1 Product Introduction The infrared thermometer is a high-quality product, it adopts infrared technology, each start-up will be self-testing to ensure the accuracy of measurement, this infrared thermometer is mainly used to measure the temperature of the forehead of the human body.
- Page 4 Model IR988 Non-Contact Digital Infrared Thermometer Instruction Manual 4.1 Safety Instructions This product is intended for use only as described in the instructions. The manufacturer shall not be liable for any damage caused by improper use. Do not immerse this product in water or other liquids. For cleaning, wipe with a damp soft cloth.
- Page 5 Model IR988 Non-Contact Digital Infrared Thermometer Instruction Manual 5.1 Structure Introduction 5.2 LCD Backlight Color Description In the human body mode, the product can intelligently display the measurement results and prompt with different backlight colors, as follows. 3 Color LCD Display 32.0°C ~ 37.4°C...
- Page 6 Model IR988 Non-Contact Digital Infrared Thermometer Instruction Manual 6.1 How to Install Batteries The machine requires two DC3V (AAA batteries). When the low voltage icon flashes on the screen, the battery needs to be replaced. Remove the battery back cover in the direction indicated (Step 1) Replace the battery, and correctly reprint the battery according to the positive and negative poles marked (Step 2) 1.
- Page 7 Model IR988 Non-Contact Digital Infrared Thermometer Instruction Manual 7.1 Modify Settings In the power-on state, long press the SET button (SET) for about 2 seconds to enter the temperature setting interface, and then press (SET) to switch; Switching sequence: F1 → F2 → F3 shutdown and save.
- Page 8 Model IR988 Non-Contact Digital Infrared Thermometer Instruction Manual 8.1 Body Temperature Measurement This product provides you with a method of measuring the frontal temperature, but it cannot replace the doctor's diagnosis and treatment. In addition, individual body temperature is different. Please use the memory function to understand your normal body temperature and use it as a reference for whether the body temperature rises.
- Page 9 Model IR988 Non-Contact Digital Infrared Thermometer Instruction Manual 9.1 Memory Function In the power-on state, press the [+] Plus Sign key to enter the memory value view. The greater the value of the memory number, the earlier the measured value, and the smaller the value, the more recent the measured value.
- Page 10 Model IR988 Non-Contact Digital Infrared Thermometer Instruction Manual 10.1 Troubleshooting Display Meaning Possible Cause / Solving Method Message 1. Body temperature mode, the display temperature is higher than 42 ℃ The ambient temperature is too high 2. Object temperature mode, the display temperature is higher than 45 ℃...
- Page 11 Model IR988 Non-Contact Digital Infrared Thermometer Instruction Manual 11.1 EMC Statement Note: Non-contact infrared thermometer meets YY0505 electromagnetic compatibility requirements; User shall install and use it according to the electromagnetic compatibility information provided by random files. Portable and Mobile RF communication devices may affect the performance of infrared thermometers and avoid strong electromagnetic interference when used, such as near mobile phones, microwave ovens, etc.;...
- Page 12 Model IR988 Non-Contact Digital Infrared Thermometer Instruction Manual 12.1 Product Specifications Machine Type Infrared Thermometer IR988 Measurement Method Non-contact Measurement Site Forehead / Object Surface Measuring Distance 3~5cm Body: 34.8°C~42.5°C Display Range Object: 0°C~93°C (±1°C) TEMP Resolution 0.1°C/°F 35°C~42.0°C (±0.2°C) Max Allowable Error Others (±0.3°C)
- Page 13 Model IR988 Non-Contact Digital Infrared Thermometer Instruction Manual 13.1 Certificate of Compliance CERTIFICATE OF COMPLIANCE NON-CONTACT PRODUCT NAME INFRARED MODEL IR988 THERMOMETER DATE OF INSPECTOR INSPECTION This product has passed the inspection and is allowed to leave the factory. 13.2 Warranty Card...
