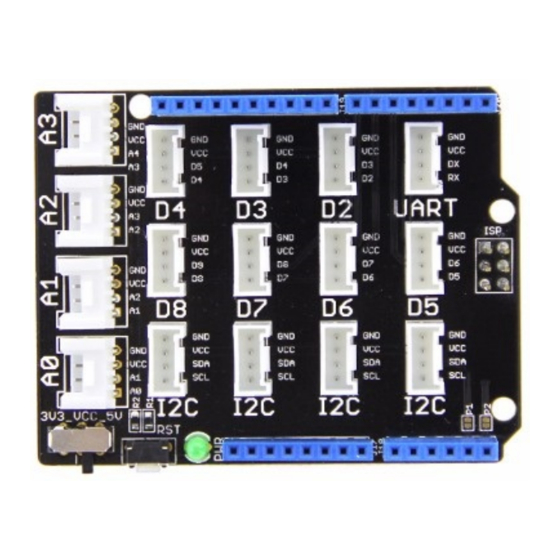

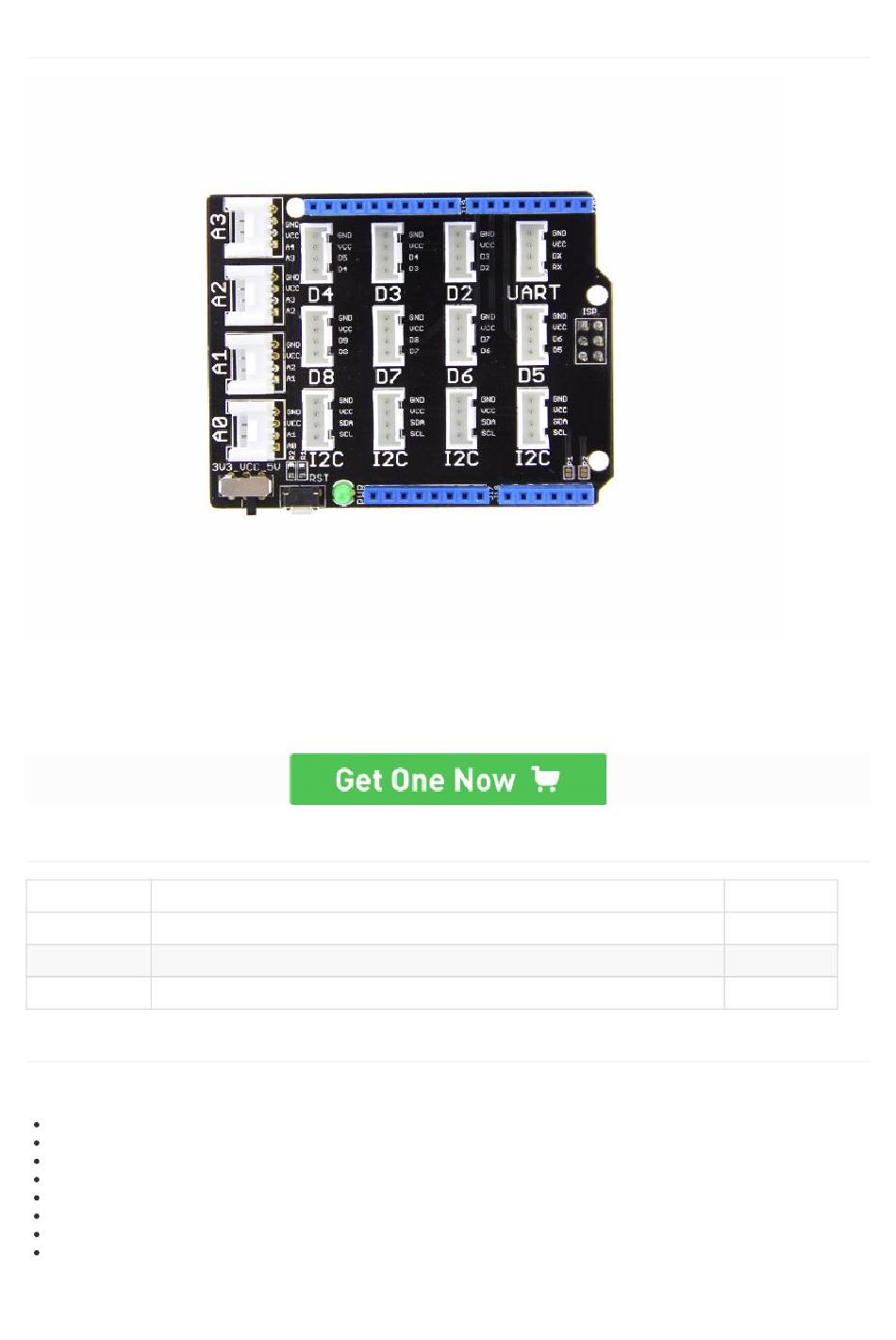

Base Shield V2
Arduino Uno is the most popular Arduino board so far, how ever it is sometimes frustrating w hen your project requires a lot of sensors or Leds and your jumper
w ires are in a mess. The purpose of creating the Base Shield is to help you get rid of bread board and jumper w ires. With the rich grove connectors on the base
board, you can add all the grove modules to the Arduino Uno conveniently! The pinout of Base Shield V2 is the same as Arduino Uno R3, how ever Arduino Uno is
not the board one that the Base Shield V2 is compatible w ith plenty of boards.
Version
Product Version
Base Shield V1.2
Initial
Base Shield V1.3
Change the Grove connector layout and quantity
Base Shield V2.0
Change the Grove connector layout and quantity, as w ell as a pow er sw itch to enable both 3.3V and 5V.
Compatible Boards
The Base Shield is tested and fully compatible w ith follow ing boards:
Arduino Uno(all revisions)/Seeeduino(V4&V4.2)
Arduino Mega/Seeeduino Mega
Arduino Zero(M0)/Seeeduino Loraw an
Arduino Leonardo/Seeeduino Lite
Arduino 101
Arduino Due 3.3V
Intel Edison 5V
Linkit One
!!!Note
The boards are not listed above mean that it might have chance to w ork w ith the platform board how ever requires extra w ork such as jump w ires or rew riting the
Changes
Released Date
Oct 2011
Aug 2012
Mar 2014
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SeeedStudio Base Shield V2
Summary of Contents for SeeedStudio Base Shield V2
- Page 1 The purpose of creating the Base Shield is to help you get rid of bread board and jumper w ires. With the rich grove connectors on the base board, you can add all the grove modules to the Arduino Uno conveniently! The pinout of Base Shield V2 is the same as Arduino Uno R3, how ever Arduino Uno is not the board one that the Base Shield V2 is compatible w ith plenty of boards.
- Page 2 4-I2C Ports: 4 I2C ports. 5-Pow er Sw itch: w hen using Arduino UNO w ith Base Shield v2, please turn the sw itch to 5v position; While using Seeeduino Arch w ith Base Shield v2, please turn the sw itch to 3.3v.
- Page 3 = digitalRead(button); //read the status of the button digitalWrite(buzzer, btn); delay(10); Step 2. Press the button and w e w ill hear the buzzer. Please click here to see all Base Shield V2 FAQs. Resources [PDF] Dow nload Wiki PDF [Eagle] Base Shiled V2 SCH...
- Page 4 [Eagle] Base Shiled V2 PCB [PDF] Base Shiled V2 SCH [PDF] Base Shiled V2 PCB...
