SEON vMax Trac Quick Install Manual

About

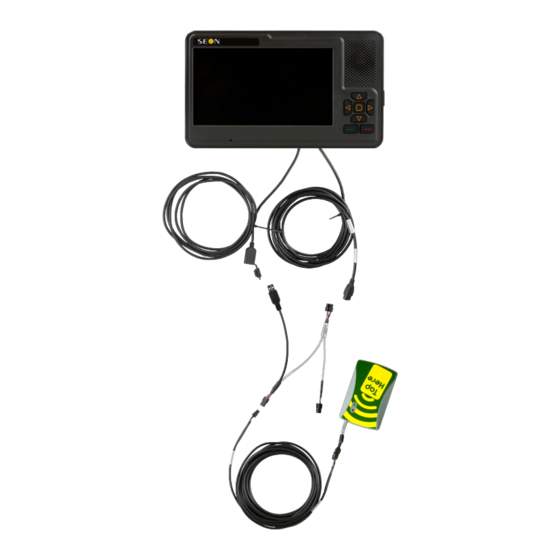

This guide explains how to
connect the vMax Trac RFID
card reader to an MDT.
Installation Steps

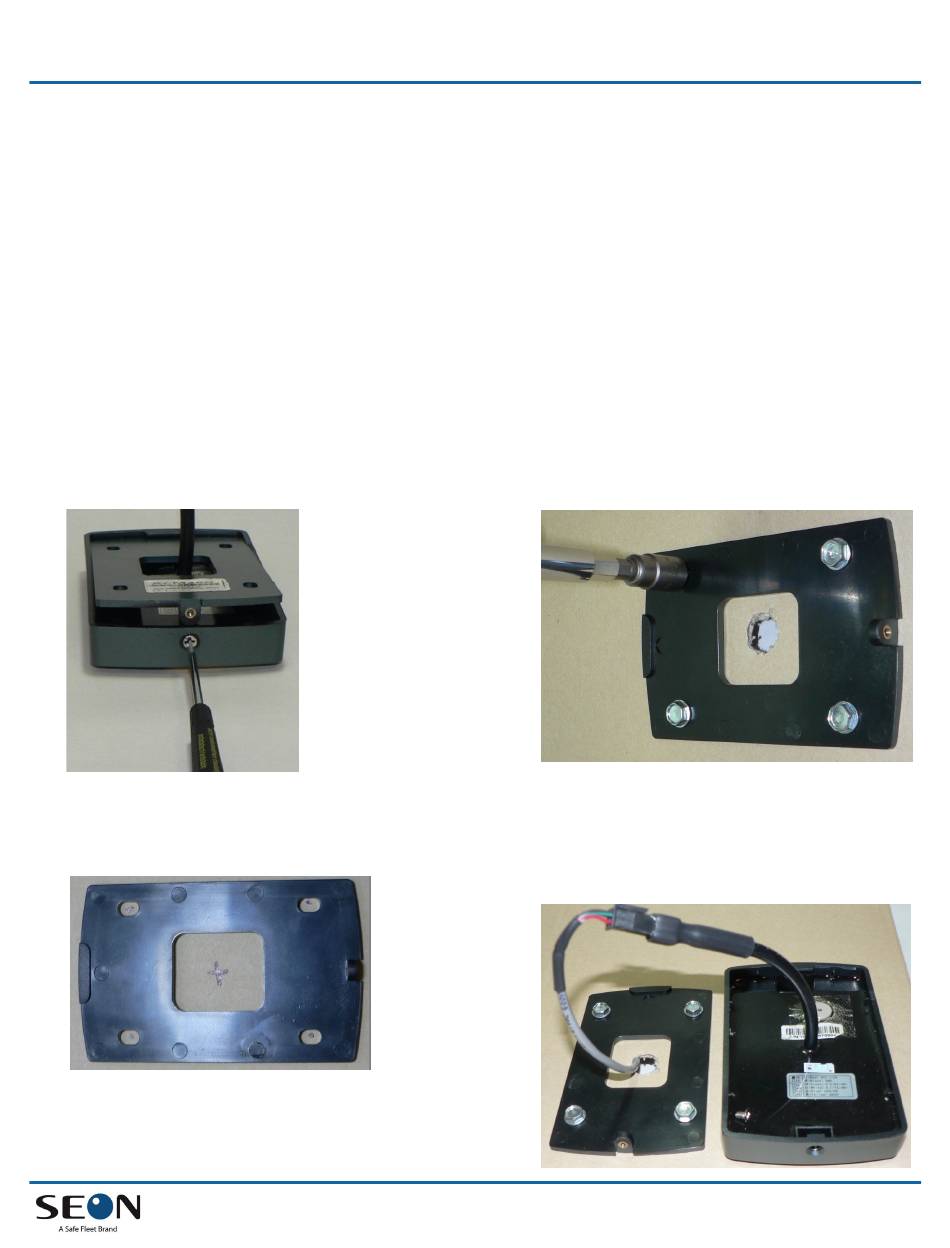

1. Remove the retainer screw at the bottom
of the card reader and remove the back
plate.
2. Position the back plate of the card reader
on the vehicle surface, then mark the
screw and center-hole positions.
vMax Trac to MDT Quick Install Guide
Install Kit Contents
• RFID Card Reader x1
Part#: 032-1029
• RFID Power USB Harness x1
Part#: 060-1093
• RFID Extension Cable x1
Part#: GPS4-CBL
• Hex Self-Drive Screws x4
Part#: 600-0038
3. Drill out the 1/2" center hole and mount
the backing plate with the 4 self-driving
hex screws.
4. Run the RFID extension cable through
the center hole and connect one end
to the card reader (both ends are
interchangeable).
p. 1
LED Functions
• RED - Ready for reading
• GREEN - Reading
© Seon Design Inc. | Nov 2017 | All rights reserved
Part #: 700-1105 R1
