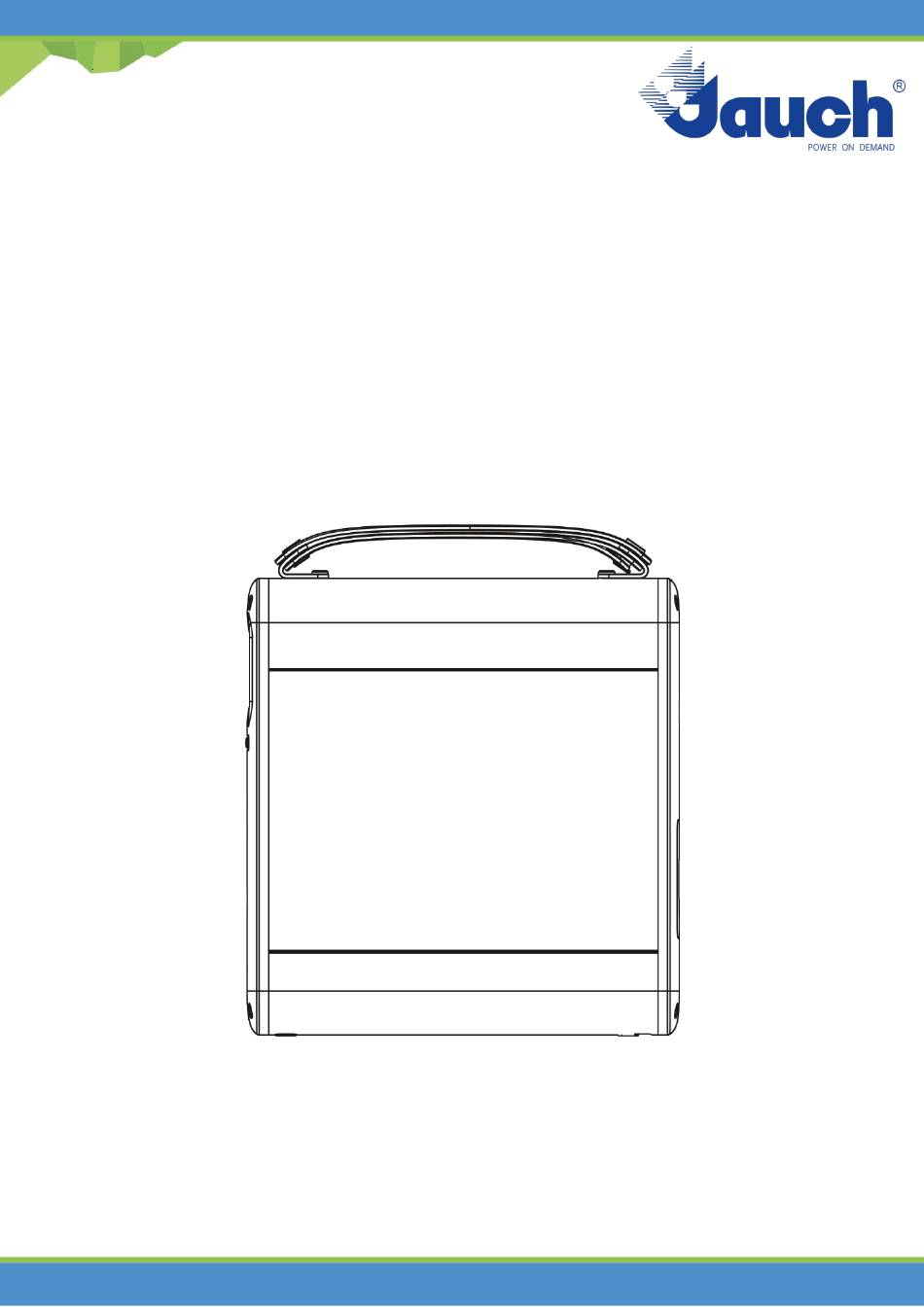

- Page 1 USER MANUAL Jauch Power Station JES200WHA ENGLISH...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Thank you for purchasing this Jauch Power Station. Please read all instructions and cautions carefully before use to avoid personal injury or damage to the Power Bank and any connected products. OBERSERVE ALL INPUTS AND OUTPUTS To avoid fire or electrical shock hazard, observe all ratings on unit, and products you intend to use;... - Page 3 USB-C Cable DC7090 to Car Charger Cable DC6530 to DC5521 Cable Jauch Manual Warranty Card Certificate of Qualification GET TO KNOW YOUR JAUCH POWER STATION LCD Display Power Button DC Output Power Button Power Bank Power Button AC Output USB-A Output USB-A QC3.0 Output...
- Page 4 The built-in LCD display indicates three important values: Inputs Shows the amount of power (Watts) going into the power station while charging. Outputs DC/ AC Shows the amount of power (Watts) and output your devices will be using while plugged into the Jauch power station.
- Page 5 Input, DC and AC power. CHARGING YOUR JAUCH POWER STATION There are three ways to charge this Jauch Power Station. CHARGING WITH SOLAR PANEL 1. Place the solar panel somewhere where it can receive direct sunlight.
- Page 6 This power station comes with a built-in advanced control circuit. When the battery is fully charged, it will stop charging automatically. USING YOUR JAUCH POWER STATION THROUGH USB OUTPUT 1. Select the adapter that corresponds with your mobile devices and use it to connect the USB power cable to the input port of your device: 2.
-
Page 7: Storage And Maintenance
AC power button to turn on the output. STORAGE AND MAINTENANCE Please fully-charge your Jauch Power Station before storage and charge it every 3 months. Keep the power station away from water, flammable gas, corrosive material, metals, dust and salt. -
Page 8: Technical Specifications
TECHNICAL SPECIFICATIONS Battery Capacity 200Wh Output Specifications Rated Output Power 120W/ 100-120V Peak Output Power 200W (1s) Rated Output Voltage 100-120Vac Rated Frequency 50/60Hz Power Factor THDV <3% Overload Capacity 125W≤Load<150W@10S; 150W≤Load<180W@5s; 180W≤Load<200W@1s No-Load Power Consumption <8W Max. Efficiency (>70% Load Power) Output Voltage Range 10~12.6V Rated Output Power... -
Page 9: Troubleshooting Guide
The unit is too hot. Cool down the power station before charging your device. If you are still experiencing trouble with your Jauch Power Bank, please call our Customer Service at 1-360-633-7200 or (+49) 07720 945 314 or by email at energysolutions@jauch.com. - Page 10 To ensure safe disposal of this power station, contact a collection point or local authority for more information. Jauch Quartz GmbH is registered in accordance with ElektroG with the number DE49812498. Packaging: The product packaging consists of recyclable materials. These are to be disposed of in an environmentally friendly manner, whereby the materials are to be placed separately in the collection systems provided.
-
Page 11: Warranty
10. The above provisions shall apply mutatis mutandis to the delivery of goods other than those stipulated in the contract. How to receive service To obtain warranty service, you must contact our customer service team via telephone at (+1) 360- 633-7200 or (+49) 07720 945 314, or via email at energysolutions@jauch.com. - Page 12 JAUCH QUARTZ GMBH HEADQUARTERS In der Lache 24 78056 Villingen-Schwenningen Germany JAUCH QUARTZ AMERICA INC. 506 Second Avenue Suite 1400 Seattle, WA, 98104 energysolutions@jauch.com...
