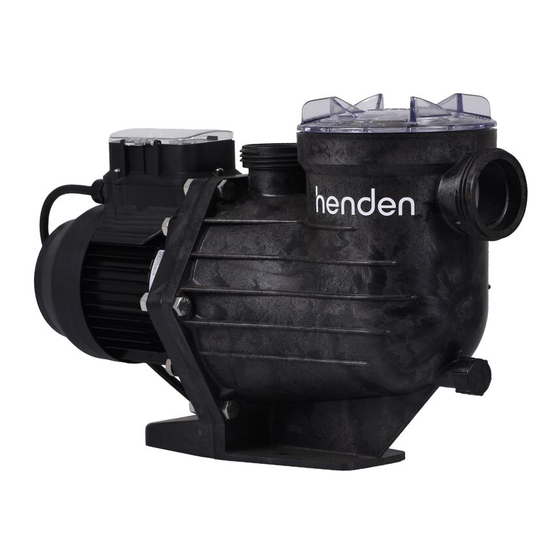

Henden 8★ 3 Speed Pump
H83SP
INSTALLATION &
OWNERS MANUAL
WARNING:
Failure to follow
these instructions
and comply with all
applicable codes
may cause serious
bodily injury and/or
property damage.
The installation of
this product should
be carried out by a
person knowledgeable
in swimming
pool plumbing
requirements following
the installation
instructions provided
in this manual.
Please pass these instructions on to the operator of this equipment
ENERGY
RATING
A joint government and industry program
Henden Pump, Model H8VSP
Variable Speed
Efficiency
Flow Rate
Head
Power
L/Wh
L/min
m
W
2.6
52.4
120
138
Energy consumption
349
kWh per year
To pump 50,000 litres/day
When tested in accordance with AS 5102.2.
Actual energy use and running costs will depend on how you use the appliance.
Compare models at www.energyrating.gov.au
IMPORTANT
Please read carefully
P/N 15951
Advertisement
Table of Contents
Related Manuals for Henden H83SP
Summary of Contents for Henden H83SP
- Page 1 Henden 8★ 3 Speed Pump H83SP INSTALLATION & OWNERS MANUAL ENERGY RATING A joint government and industry program Henden Pump, Model H8VSP Variable Speed Efficiency Flow Rate Head Power L/Wh L/min 52.4 Energy consumption kWh per year To pump 50,000 litres/day When tested in accordance with AS 5102.2.
-
Page 3: Table Of Contents
Contents Henden 8★ 3 Speed Pump INSTALLATION 1. INSTALLATION OF THE HENDEN 3 SPEED PUMP Location of the Pump Weather Protection Power Connection 2. PIPE CONNECTION OWNERS MANUAL 3. STARTING UP Pre-start up Checklist Starting the Pump 4. LOW ENERGY OPERATION... -
Page 4: Installation
1.3 Power Connection The Henden 3 Speed Pump is suitable for connection to a nominal 220-240 volt 50Hz power supply and is equipped The fittings on this product are with a flex and 3 pin plug. If a power outlet is not available constructed of ABS. -
Page 5: Pipe Connection
(usually at the filter control valve). Barrel unions need to be hand *Suction and delivery accept 40mm PVC pipe on the I.D. and 50mm fitting on the O.D. tightened. No sealant, glues or silicones are required. HENDEN INSTALLATION & OWNERS MANUAL | 5... -
Page 6: Owners Manual
• All appropriate valves are open and there is nothing preventing the flow of water through the system The Henden 3 Speed Pump motor has 3 pre-set speed settings: Eco Flow, Mid Flow and High Flow. It will always start on High Flow setting to aid priming and after 2 minutes will automatically revert to the last used speed setting. -
Page 7: Low Energy Operation
Before installing or purchasing a pool cleaner for use with Automatic pool cleaner operation Mid Flow your Henden 3 Speed Pump, it is important to know the Backwashing your media filter minimum flow rates required for it to operate effectively. -
Page 8: Maintenance
30mA. If you are unable to resolve any installation or operation difficulties with your Henden 3 Speed Pump, contact the supplier from whom the pump was purchased or your local Reece Irrigation & Pools branch as indicated at the back of this manual. - Page 9 4. Move the pipework with the barrel unions attached until the pump can be pulled clear. NOTE: When making any enquiries about your Henden 3 Speed Pump, be certain to quote the model number from the nameplate located on the motor. HENDEN INSTALLATION & OWNERS MANUAL | 9...
- Page 10 Damaged wiring must be repaired or replaced by a qualified electrician as soon as damage is discovered. £ Check water balance and sanitiser levels at your local pool shop. 10 | HENDEN INSTALLATION & OWNERS MANUAL...
-
Page 11: Henden Repair Or Replacement Guarantee
MUST provide evidence of the date of original purchase when making a claim. Henden shall not be liable for any loss of profits or any consequential, indirect or special loss, damage or injury of any kind whatsoever arising directly or indirectly from Henden products. - Page 12 P/N 403212-2...
