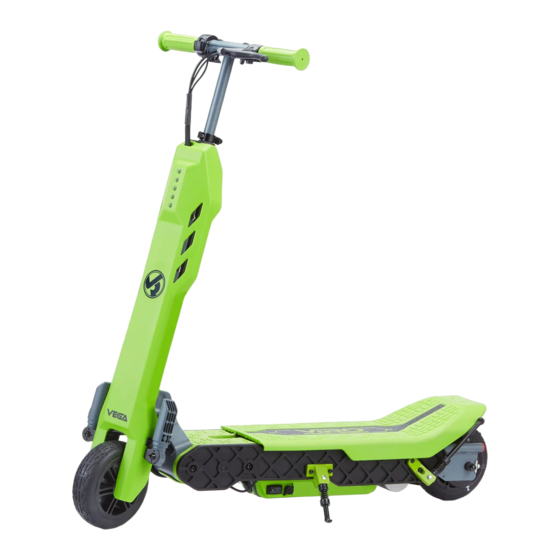

Little Tikes Viro Rides Vega Instructions For Replacing

Replacing the Handlebar

IMPORTANT: An ADULT must make all repairs. Thoroughly inspect all parts after making modi cations. DO NOT RIDE until
you are sure the proper repairs have been made and the unit is assembled according to the manufacturer's speci cations.
NOTE: BEFORE BEGINNING, ENSURE THE UNIT IS TURNED OFF.
1
Use the included wrench to remove the nuts
from the handlebar bolts.
3
Use an Allen wrench to remove the screw from the brake.
5
Use an Allen wrench to remove the screw from the throttle.
If you are unsure of any repairs, contact consumer service.
2
Lift up the handlebar and remove the
handlebar covering and bolts.
4
Push up rmly on the brake to remove the handlebar grip
and slide the brake o of the handlebar.
6
Push up rmly on the throttle to remove the handlebar grip
and slide the throttle o of the handlebar.
