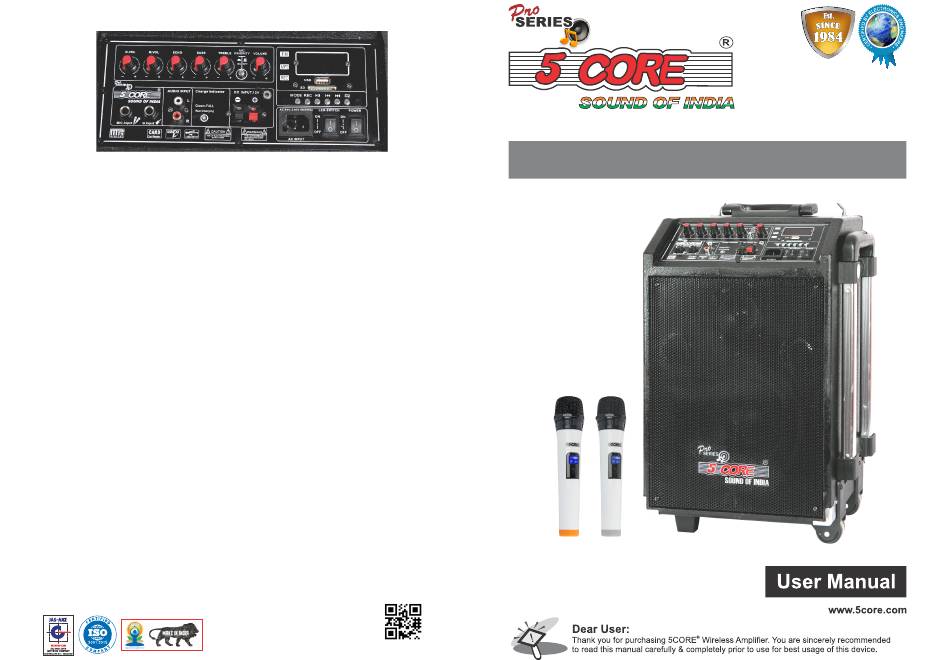

FUNCTION CONTROL PANEL
SPECIFICATIONS
RECEIVER
Music Power:
100W (MAX.)
Frequency Range: 180-270 MHZ
S/N Ratio:
≥80dB
Power Supply:
AC 90V-240V 50/60 Hz
~50Hz/Built-in DC 12V, Rechargeable battery
Receive Type:
FM
Frequency Shock:
±0.005% (–20°C~40°C)
T.H.D.:
<0.5% (10dB V)
Freq. Response:
150Hz~15KHz
TRANSMITTER
Freq. Response:
150Hz~15KHz
Operating Temp.:
–20°C~40°C
Power Supply:
DC 1.5V
Ampere Consume: 25mA
Transmit Power:
10mW
Subharmonic:
<40dB
RECEIVER (Built-in Rechargeable)
Input:
Double Wireless Channel,
1 Wired MIC input, 1 Line input.
Speaker:
Woofer: 4E + 4E (8"x1)
Tweeter: 4Ω (3"x1)
Service Distance:
F80m (in the wide open of spaces)
Size:
300X253X470mm
Battery:
DC 12V/4.5Ah
Weight:
11.5 Kgs
MADE IN INDIA
www.5core.com
P E R S O N A L D J S Y S T E M
5C PDJ 2009 BT
Advertisement
Summary of Contents for 5Core 5C PDJ 2009 BT
- Page 1 1 Wired MIC input, 1 Line input. Speaker: Woofer: 4E + 4E (8"x1) Tweeter: 4Ω (3"x1) Service Distance: F80m (in the wide open of spaces) Size: 300X253X470mm 5C PDJ 2009 BT Battery: DC 12V/4.5Ah Weight: 11.5 Kgs MADE IN INDIA www.5core.com...
- Page 2 • Open the cover of the transmitter. Put the 1.5V battery in correct polarity, close the cover. FEATURES Insert the lapel microphone to the jack of the transmitter, keep the microphone away from 1. 2 wireless microphone, 1 wired microphone input, 1 AUX input, 1 guitar input the mouth about 8-10 cm, turn on the transmitter, the POWER LED will ash once.
