Summary of Contents for Fervi 0530

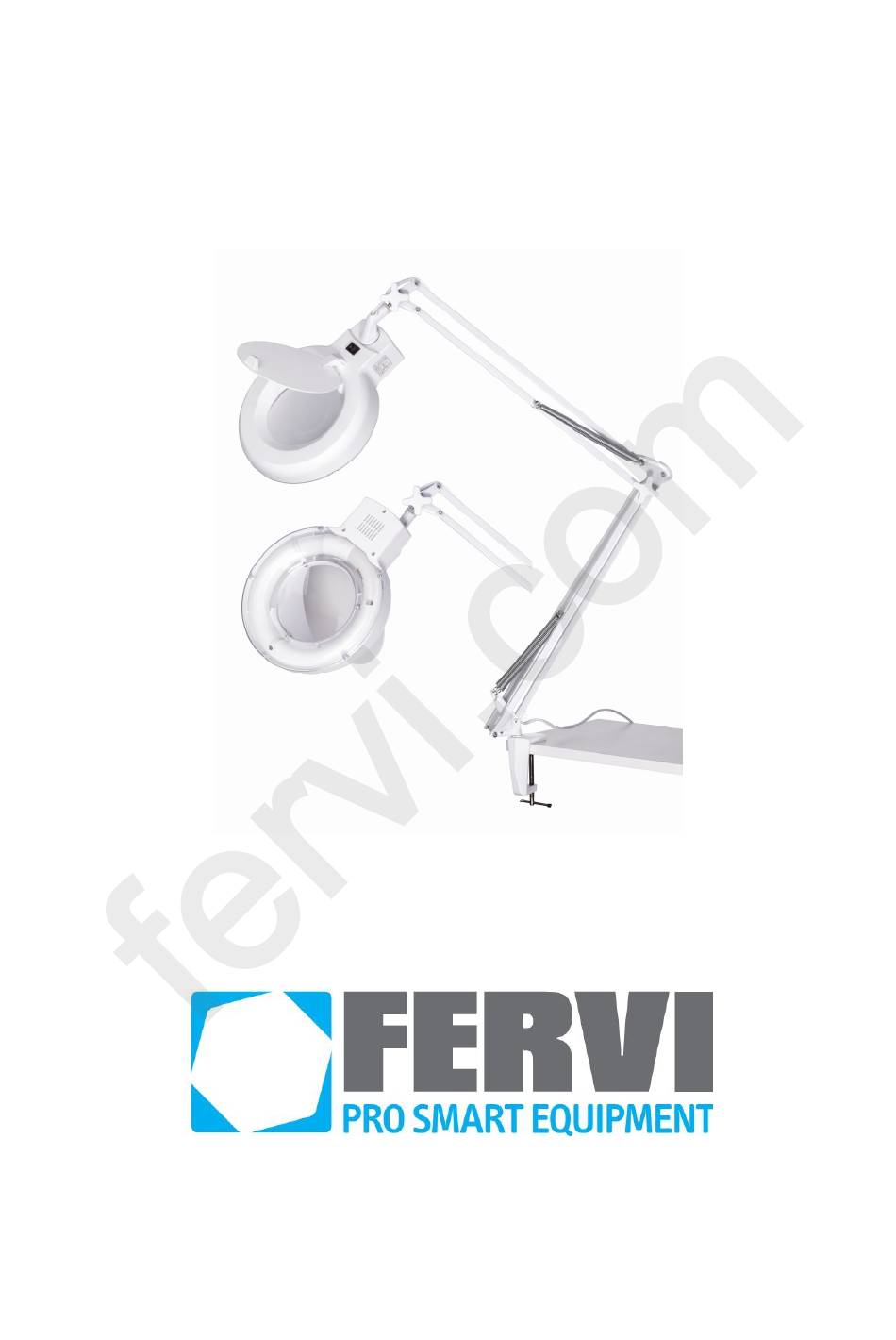

- Page 1 OPERATION AND MAINTENANCE MANUAL Low consumption lamp Art. 0530 TRANSLATION OF THE ORIGINAL INSTRUCTIONS...
-
Page 2: Operator Qualifications
Manual on the date of issue, listed on this page; however, the product may be subject to potentially major technical changes in the future, without the Manual being updated. Therefore, contact FERVI for information about modifications that may have been implemented. REV. 2... -
Page 3: General Information
HARDWARE 1 GENERAL INFORMATION This manual is considered an integral part of the lighting device to which it was attached at the time of purchase. The manufacturer holds all ownership to material and intellectual property of this manual; any disclosure or copying, even partial, of this publication without prior written consent is forbidden. -
Page 4: General Safety Warnings
HARDWARE 2 GENERAL SAFETY WARNINGS Risks associated with using the instrument Each person who is in charge of the installation, use and maintenance of the Low consumption lamp, must carefully read this manual, and in particular this chapter with information about safety, in order to acquire full knowledge of the device. -
Page 5: Precautions Regarding Cleaning
HARDWARE 2.3 Precautions regarding cleaning Risks associated with cleaning Plastic materials are used in some parts of the lamp. Applying organic solvents (such as benzene), or other chemicals for cleaning may cause deformation or discolouration. Clean the device gently, using a soft dry cloth. 2.4 Technical Assistance For any problems or concerns, please contact, without hesitation, the Customer Service Department of the dealer from whom you purchased the product, who has specialised staff,... - Page 6 HARDWARE 3 DESCRIPTION OF THE LAMP AND INTENDED USE The Low consumption lamp Art. 0530 is an adjustable table mounted lighting device, installed on an articulated and adjustable arm and equipped with a magnifying glass for the observation of machined surfaces.
-
Page 7: Identification Plate
HARDWARE 3.1 Identification plate The following identification plate is affixed to the body of the device. Figure 2 – Identification plate Page 7 of 12... -
Page 8: Technical Specifications
HARDWARE 4 TECHNICAL SPECIFICATIONS Model Description (Measurement unit) 0530 Voltage (V) Frequency (Hz) Power (W) Arm length (mm) 1,150 Maximum clamp thickness (mm) Dimensions of the lens (mm) 127 Magnification power / Diopters: 75% / 3 5 DEFINITIONS : This refers to the curvature of a lens. -
Page 9: Improper Uses And Precautions
HARDWARE 6 IMPROPER USES AND PRECAUTIONS The following actions described, which obviously can not cover the entire range of potential possibilities of "misuse" of the equipment, are to be considered strictly prohibited. THE FOLLOWING IS STRICTLY PROHIBITED! To install and use the equipment on surfaces that are not strong enough to support its weight;... -
Page 10: Unpacking Instructions
HARDWARE 8 UNPACKING INSTRUCTIONS The lamp is supplied in a cardboard box. Before disposing of the shipping carton, check you do not to throw away parts of the machine, the instruction "sheets" or other documentation. Standard packaging Packaging materials (plastic bags, polystyrene foam, etc.) must not be left within reach of children as these are potentially dangerous. -
Page 11: Maintenance And Cleaning
HARDWARE 11 MAINTENANCE AND CLEANING The purpose of this chapter is to provide all the information on maintenance procedures and frequency required for the Flexible arm lamp with magnifying lens. Frequency INTERVENTION Daily Weekly Monthly 1. General visual inspection 2. Check that plates are clearly visible and legible 3. -
Page 12: Troubleshooting
HARDWARE 12 TROUBLESHOOTING The following table shows the type of defect / problem, possible causes, and possible remedies for the malfunction. The table is a useful aid for the maintenance technician when looking for problems with the equipment. Fault Cause Solution Plug inserted incorrectly.
