Andersen Windows & Doors 901724 Installation Manual

1-1/2” self-storing storm doors with balanced retractable insect screen and integrated close system

Advertisement

Quick Links

Installation Guide
for Andersen® 1-1/2" Self-Storing Storm Doors with Balanced
Retractable Insect Screen and Integrated Close System
Please Do Not Return Product to Store!
PLEASE call the storm door Solution Center at 1-800-933-3626,
with any questions regarding installation, lost part replacement, or anything else related to your storm door purchase.
Read this entire guide before you begin your installation. If your abilities do not
match the requirements of this installation, contact an experienced contractor.

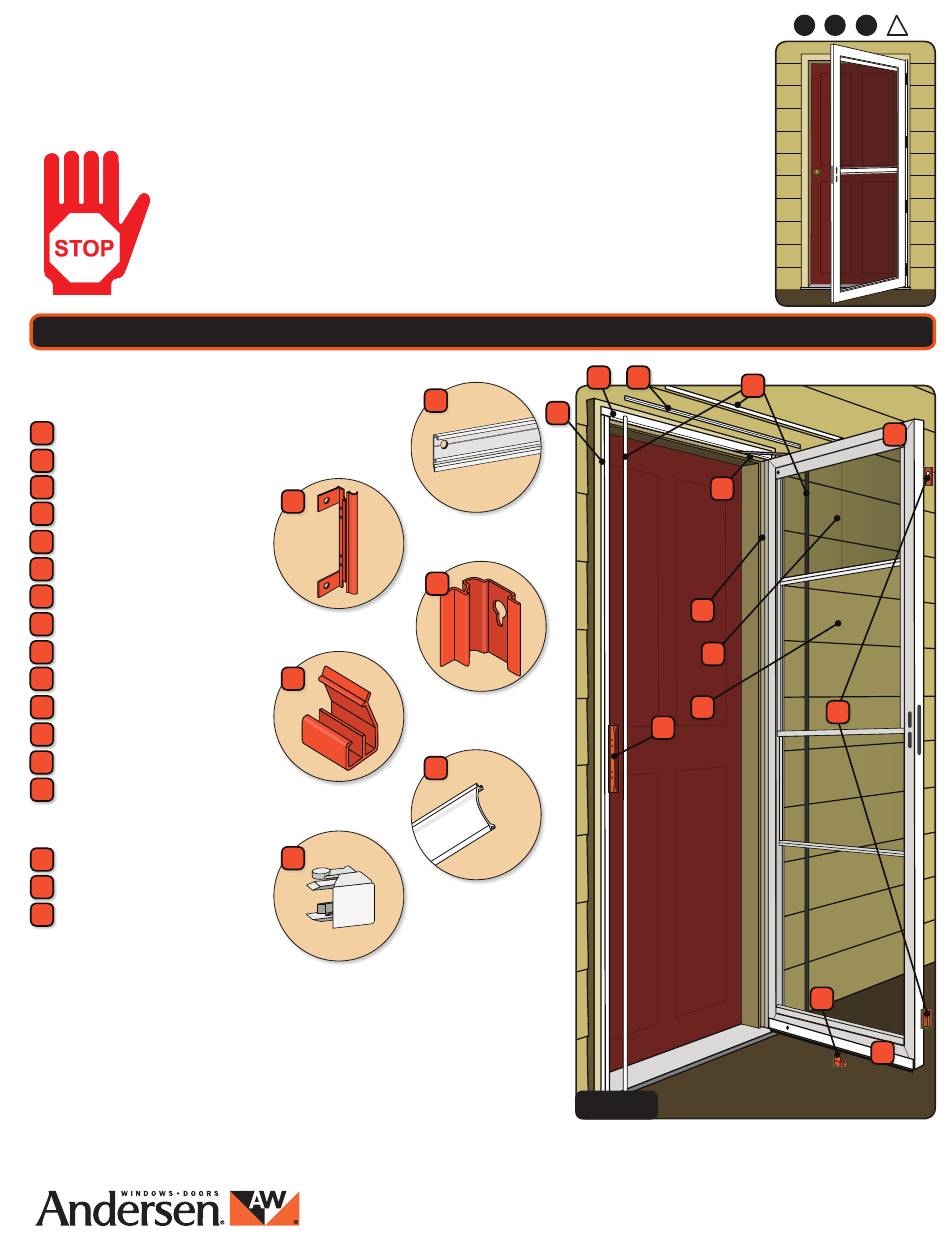

PARTS OVERVIEW
Your installation kit should contain the following
parts. However, in some door models, not all of the
parts will be used.
Door Frame Assembly:
A
Rain Cap
B
Rain Cap Extender
C
Integrated Closer System
D
Latch Rail
E
F
Hinge Rail
G
Sweep
H
Handle Clip
Spacer Clips (2)
I
Bottom Spacer
J
Ventilating Window
K
Screw Covers (3)
L
Retractable Screen
M
Rain Cap End Plug (2)
N
Not Shown
Handle Set Kit
O
Installation Kit
P
Window Handle Kit
Q
C
H
I
J
L
N
Andersen Storm Door Division is a wholly owned subsidiary of Andersen Corporation. Andersen
Storm Door Division manufactures and supports the limited warranties for Andersen® and
EMCO® storm doors. "Andersen" and "EMCO" and all other marks where denoted are trademarks
of Andersen Corporation. ©2019 Andersen Corporation. All rights reserved.
1
B
C
E
D
F
M
K
H
Figure 1
E
L
A
I
J
G
Andersen SDD, PO Box 853
Des Moines, IA 50306-0853
02-2019 r2 15043 Print in Color
p/n 901724

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 901724 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Andersen Windows & Doors 901724

  • Page 1 Storm Door Division manufactures and supports the limited warranties for Andersen® and 02-2019 r2 15043 Print in Color EMCO® storm doors. “Andersen” and “EMCO” and all other marks where denoted are trademarks p/n 901724 of Andersen Corporation. ©2019 Andersen Corporation. All rights reserved.
  • Page 2: Recommended Tools

    SAFETY FIRST: Please read and follow all Cautions and Warnings in this guide. WARNING WARNING Follow manufacturers' instructions for hand and power Windows and doors can be heavy. Use safe lifting techniques and a reasonable number of people with enough tools.
  • Page 3: Installation Preparation

    INSTALLATION Tools needed: INTERIOR PREPARATION VIEW VIEW EXTERIOR VIEW Tape Measure VIEW Spacer Clips Bottom Spacer VIEW BRICKMOULD VIEW (EXTERIOR TRIM) MOUNTING Figure 4 SURFACE Figure 5 MIN. 3 1/8" 40 1/2" Figure 6 Figure 7 TO DOOR SILL Most homeowners prefer to have the storm door In this step, you will confirm that your storm door hinges on the correct side.
  • Page 4 1/2” Self-Drill Pan Painted For a Right Hand Installation, go to Page 9. 1/2” 5/8” 1/2” 3/4” Machine Flathead Tools needed: HANG HINGED STORM DOOR 1” 2” 1 1/2” AND REMOVE 7/8” Machine Pan Painted 1/8" SPACER CLIPS (Left Hand) 1 1/2”...
  • Page 5 1” SMS Pan Painted 1” Machine Pan Painted 1” SMS Pan Painted INSTALL 1” Machine Pan Painted 1-1/2” Machine Flathead 1-1/2” HANDLE SET (Left Hand) 1” Machine Pan Painted 1-1/2” Machine Flathead 1-1/2” Color 1-1/2” Machine Flathead Handle Clip Spacer Clips Bottom Spacer 5/8”...
  • Page 6 1/2” Self-Drill Pan Painted 1/2” 5/8” 1/2” 3/4” Machine Flathead Tools needed: INSTALL RAIN CAP EXTENDER, SCREW 1” 2” 1 1/2” COVERS, & WINDOW 7/8” Machine Pan Painted 1/8" HANDLE (Left Hand) 1 1/2” Rain Cap Extender Screw Handle 1” SMS Pan 1"...
  • Page 7 ADJUST CLOSING SPEED OF Tools needed: DOOR Closer and door shown are for reference only. WARNING Storm door will close more quickly when the entry door is open. To achieve the proper closing speed, you will need to adjust the closer using the built-in adjustment screw. Check for safe closing speed with your entry door in both the closed and open position.
  • Page 8: Troubleshooting

    5/8” 1/2” TROUBLESHOOTING 1/2” 5/8” Tools needed: 1/2” (Left Hand) For additional help with these, 1” or any other installation steps, 1 1/2” 2” please call our Solution Center 1/8” at 1-800-933-3626. 1 1/2” VIEW VIEW VIEW 5/8” 1/2” 1/2” 5/8”...
  • Page 9 1/2” Self-Drill Pan Painted For a Left Hand Installation, go to Page 4. 1/2” 5/8” 1/2” 3/4” Machine Flathead Tools needed: HANG HINGED STORM DOOR 1” 2” 1 1/2” AND REMOVE 7/8” Machine Pan Painted 1/8" SPACER CLIPS (Right Hand) 1 1/2”...
  • Page 10 1” SMS Pan Painted 1” Machine Pan Painted 1” SMS Pan Painted INSTALL 1” Machine Pan Painted 1-1/2” Machine Flathead 1-1/2” HANDLE SET (Right Hand) 1” Machine Pan Painted 1-1/2” Machine Flathead 1-1/2” Color 1-1/2” Machine Flathead Handle Clip Spacer Clips Bottom Spacer 5/8”...
  • Page 11 1/2” Self-Drill Pan Painted 1/2” 5/8” 1/2” 3/4” Machine Flathead Tools needed: INSTALL RAIN CAP EXTENDER, SCREW 1” 2” 1 1/2” COVERS, & WINDOW 7/8” Machine Pan Painted 1/8" HANDLE (Left Hand) 1 1/2” Rain Cap Extender Screw Handle 1” SMS Pan 1"...
  • Page 12 ADJUST CLOSING SPEED OF Tools needed: DOOR Closer and door shown are for reference only. WARNING Storm door will close more quickly when the entry door is open. To achieve the proper closing speed, you will need to adjust the closer using the built-in adjustment screw. Check for safe closing speed with your entry door in both the closed and open position.
  • Page 13 5/8” 1/2” TROUBLESHOOTING 1/2” 5/8” Tools needed: 1/2” (Left Hand) For additional help with these, 1” or any other installation steps, 1 1/2” 2” please call our Solution Center 1/8” at 1-800-933-3626. 1 1/2” VIEW VIEW VIEW 5/8” 1/2” 1/2” 5/8”...
  • Page 14: Cleaning Instructions

    CLEANING INSTRUCTIONS WINDOW GLASS – The glass may be cleaned with any household glass cleaner. Keep glass cleaners away from all other components. PLASTIC PARTS – Plastic door components may be cleaned by using a mild soap and water mixture and by gently rubbing the affected area. Do not use harsh abrasives or any product that contains chlorine. ALUMINUM PARTS –...
