SAMITECH Heat Wrap Smart Instruction Manual

Portable and flexible heat treatment solution for wood shape it as you ned
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Heat Wrap
Portable and flexible heat treatment solution
for wood ¡shape it as you ned!
INSTRUCTIONS MANUAL
Smart Version
Versión 2. 2002

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Heat Wrap Smart and is the answer not in the manual?

Questions and answers

Summary of Contents for SAMITECH Heat Wrap Smart

  • Page 1 Heat Wrap Portable and flexible heat treatment solution for wood ¡shape it as you ned! INSTRUCTIONS MANUAL Smart Version Versión 2. 2002...

  • Page 2: Table Of Contents

    2. OPERATION MODE 2.1 Assembly 2.2 ¡Shape it as you need! Heat Wrap is based in SAMITECH far infrared intelligent 2.3 Connections heating technology. The system allows you to control the 2.4 Set Up treatment temperature and duration and monitor conditions 2.5 Touch-screen tablet...

  • Page 3: Product Technology Description

    1. PRODUCT TECHNOLOGY DESCRIPTION 1.1 Far infrared heating technology Samitech’s Heat Wrap is the effective, practical, flexible and portable solution to pest problems in wood. Heat Wrap technology is based on far infrared waves, emitted from heat panels. These waves penetrate deeply into the wood surface or the surface of the object treated, directly attacking the protein cells of the xylophages or insects that reside inside the wood, killing them by dehydration.

  • Page 4: Components And Accessories

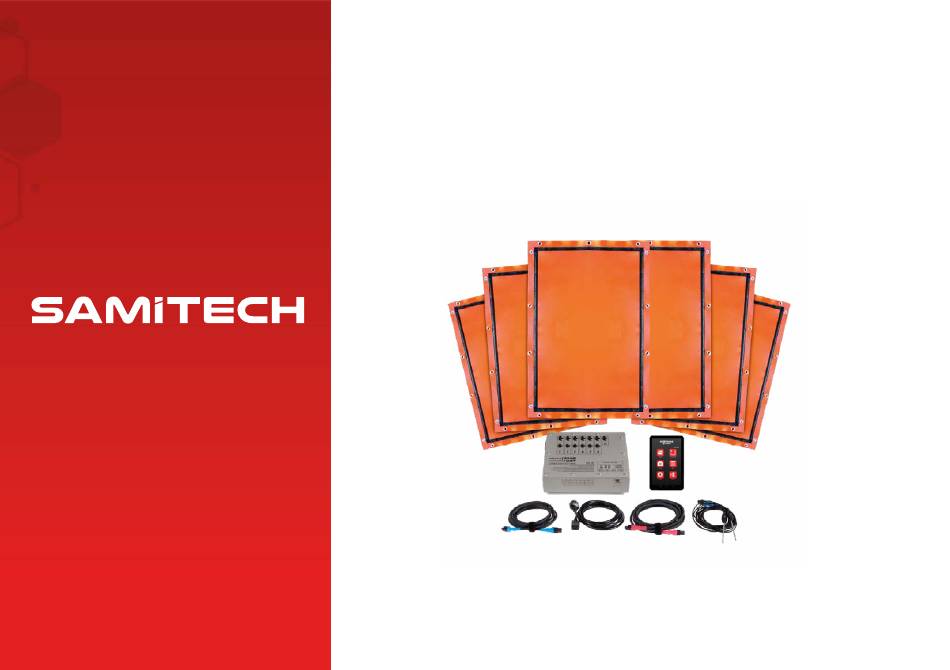

    1.2 Components and accessories Heat Wrap Smart consists of a set of six flexible panels that allow the operator the possibility of adapting them to any wood surface. The set is completed with the Smart Control Unit, that provides heat to each panel and receives information from them, and the treatment is managed and controlled by the touch- screen tablet.

  • Page 5: Operation Mode

    Heat Wrap 2. OPERATION MODE This epigraph contains all the details required to set up the SAMITECH Heat Wrap Smart and get it ready to carry out the treatment. Before plugging in any part of the system, you must make sure you perform a full check of the cables for any cuts or damages.
  • Page 6 2.2 ¡SHAPE IT AS YOU NEED IT! No matter the shape or size of the surface or the object you want to treat with Heat Wrap Smart. Using one or all of the panels, you can adapt the set to the surface in question. Using the Velcro tapes or the straps, the operator can wrap or cover any surface.

  • Page 7: Connections

    Heat Wrap 2.3 Connections 1. Once the surface or the object to be treated is completely covered up by the heating panels, place the Control Box Unit close to it and plug it to a power supply. Make sure the cables reach to cover the distance between the object and the Smart Control Unit and the socket.

  • Page 8: Set Up

    Heat Wrap 2.4 Set Up Smart Control Unit: Connect the Smart control Unit to the energy socket and switch the device on. The green LED light will turn ON. When the treatment starts the red the LED lights will light up indicating the connections status of the Heating Panels.

  • Page 9: Touch-Screen Tablet

    If the product you have purchased does not include an Android device or if you want to use another device, you can download the application from the Google Play service. 1. Turn on the Touch-screen Tablet and tap the SAMITECH icon. 2. Manage and control all the conditions treatment settings.

  • Page 10: User Interface

    Heat Wrap 2.6 User interface The application is simple and intuitive, it allows the operator to take pictures of the objects that will be treated to guarantee their status before and after the treatment. Img. 1 - New Treatment: Initiate a new treatment. - Reports: File containing reports generated by the application.
  • Page 11 Heat Wrap The program performs a revision of the state of the heating panels, the connections and the basic conditions of the treatment. The panels initiate their heating process: the treatment does not start until all the panels reach the sufficient temperature to start the treatment. At this point, the treatment times indicated by the operator, the time that the treatment has been running and the time left till the end of the treatment are shown.
  • Page 12 Heat Wrap Once the treatment is over, a report is generated that can be completed by the operator with pictures of the objects before and after the treatment. The operator can also include comments and final observations on the treatment, with any details that he considers important.
  • Page 13 Heat Wrap Img. 5 Img. 6 It shows the history of the past It shows a complete history of all the treatments carried out by the device and PDF reports generated and allows you to whether they were completed (SUCCESS) share them again.

  • Page 14: Safety Instructions

    Heat Wrap 3. SAFETY INSTRUCTIONS Please read these instructions carefully before using this equipment. PCO should at all times comply with all safety measures described below. PCO will be entirely responsible for any inadequate use of this equipment. Use this device only as described in this manual. Any other use could result in fire, explosion, electric hazard, damage the device, treated objects or persons.
  • Page 15 Heat Wrap Do not place wet or humid objects on the equipment. Do not use this equipment in the open air. Do not use this equipment in any place where inflammable products such as petrol, dissolvent, paint or other inflammable liquids are stored. Do not insert nor allow any object into the ventilation opening of the control unit as it may cause an electric shock, fire or harm the unit.
  • Page 16 Heat Wrap After your last treatment carefully clean with a dry cloth those parts of the equipment that have been in direct contact with the floor. After doing so, fold the equipment carefully and put everything back into its carrying bag. Do not allow children or animals to get in contact with this equipment.
  • Page 17 Heat Wrap These objects should not be treated: Animals, plants or seeds. Food and beverages Medicines Electronic, medical or lab appliances Cosmetics and toiletries Pressurised containers (aerosols, sprays, carbonic cartridges, fire extinguishers, etc.). Waxy objects (candles, paintings, etc.). Fire arms and ammunitions. Musical instruments.
  • Page 18 Heat Wrap that they are suitable. Any other sensitive object that can be identified by the operator or the client during the inspection must be removed. In case of doubt with any object, do not treat it. Objects removed should be visually inspected for evidence of infestation. If they are infested, and those objects are not suitable for heat treatment, a convenient alternative method should be used to treat them before returning them to their place.

  • Page 19: References For The Treatment

    Heat Wrap 4. REFERENCES FOR THE TREATMENTS DURATION Each heat treatment in wood is different: duration times will depend on the object treated, the wood (thickness, density and humidity) ; the type of plague to fight and where it is ubicated, and the results that are expected.
  • Page 20 Heat Wrap THICKNESS DURATION (in minutes) TEMPERATURE 40cm (5.7in) 100ºC (212ºF) 30cm (11.8in) 100ºC (212ºF) 25cm (9.8in) 100ºC (212ºF) 20cm (7.8in) 100ºC (212ºF) 10cm (3.9in) 100ºC (212ºF) 5cm (1.9in) 100ºC (212ºF) THICKNESS DURATION (in minutes) TEMPERATURE 40cm (5.7in) 100ºC (212ºF) 30cm (11.8in) 100ºC (212ºF) 25cm (9.8in)

  • Page 21: Warranty Certificates

    3. Modifications or repair attempts not performed by the authorized personnel (authorized by the After- Sales Service from your Authorized Distributor). 4. Actions of third parties or any other reason other than the normal operating conditions of SAMITECH®...
  • Page 22 6.3 Rights of warranty claims: Any client or user of SAMITECH® systems, which is considered with justified reasons to claim the warranty rights established in this document, should proceed as follows: a) Immediately inform the authorized distributor company, who will give written notice simultaneously to: •...
  • Page 23 SAMITECH®, will only be responsible for the lack of conformity of the equipment or element / components (system) with the characteristics indicated in this Warranty, when they result from an incorrect set up / operation, when the set up is included in the Contract of sale and has been made by SAMI TECH or under its responsibility.
  • Page 24 Heat Wrap the rest remaining in force. Specifically, any provisions reflected in this warranty that contravene the provisions of Law 23/2003 of July 10, transposing Community Directive 1999/44/EC and affecting those Regulations acquired for Be used in the territory of the European Union. e) Any other warranty right that its not mentioned is therefore excluded in the present certificate.
  • Page 25 Alcalá de Henares 28806 Madrid Spain Declare under our sole responsability that the product: SAMITECH HEAT WRAP Pest Control Heating Treatment Is in compliance ith the requirements of the European Directives RED 2014/53/EU, EMC 2014/30/EU, LVD 2014/35/EU and RoHS 2011/65/EU Annex II.
