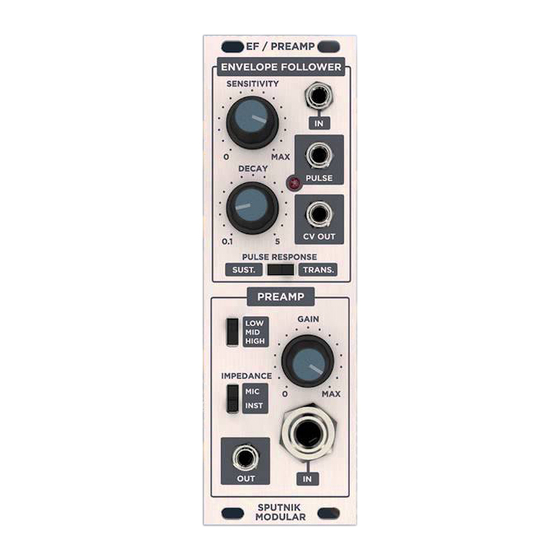

- Page 1 SPUTNIK MODULAR ENVELOPE FOLLOWER / PREAMP MANUAL V.1 SPUTNIK-MODULAR.COM...
- Page 2 SPUTNIK MODULAR ENVELOPE FOLLOWER / PREAMP TABLE OF CONTENTS SPECIFICATIONS INSTALLATION DESCRIPTION DIAGRAM WARRANTY SPUTNIK-MODULAR.COM...
- Page 3 SPUTNIK MODULAR ENVELOPE FOLLOWER / PREAMP SPECIFICATIONS FORMAT: EURORACK DIMENSIONS: 8HP, 28mm deep INTERNAL AND EXTERNAL SIGNALS (3.5mm Jacks): CV: 0-5V, AUDIO: +/-5V MAX CURRENT: +12V: 110mA -12V: 20mA SPUTNIK-MODULAR.COM...
- Page 4 SPUTNIK MODULAR ENVELOPE FOLLOWER / PREAMP INSTALLATION Remove module from packaging. Power down your modular synthesizer and disconnect the power cable from the wall outlet. Attach the included power cable to the module’s power connector and connect the other end to the power distribution bus in your EuroRack synthesizer case.
- Page 5 SPUTNIK MODULAR ENVELOPE FOLLOWER / PREAMP DESCRIPTION The SPUTNIK ENVELOPE FOLLOWER/PREAMP is a dual function module that allows audio signals to be brought up to proper levels to be sonically manipulated by other Eurorack modules or to be converted into control voltage.

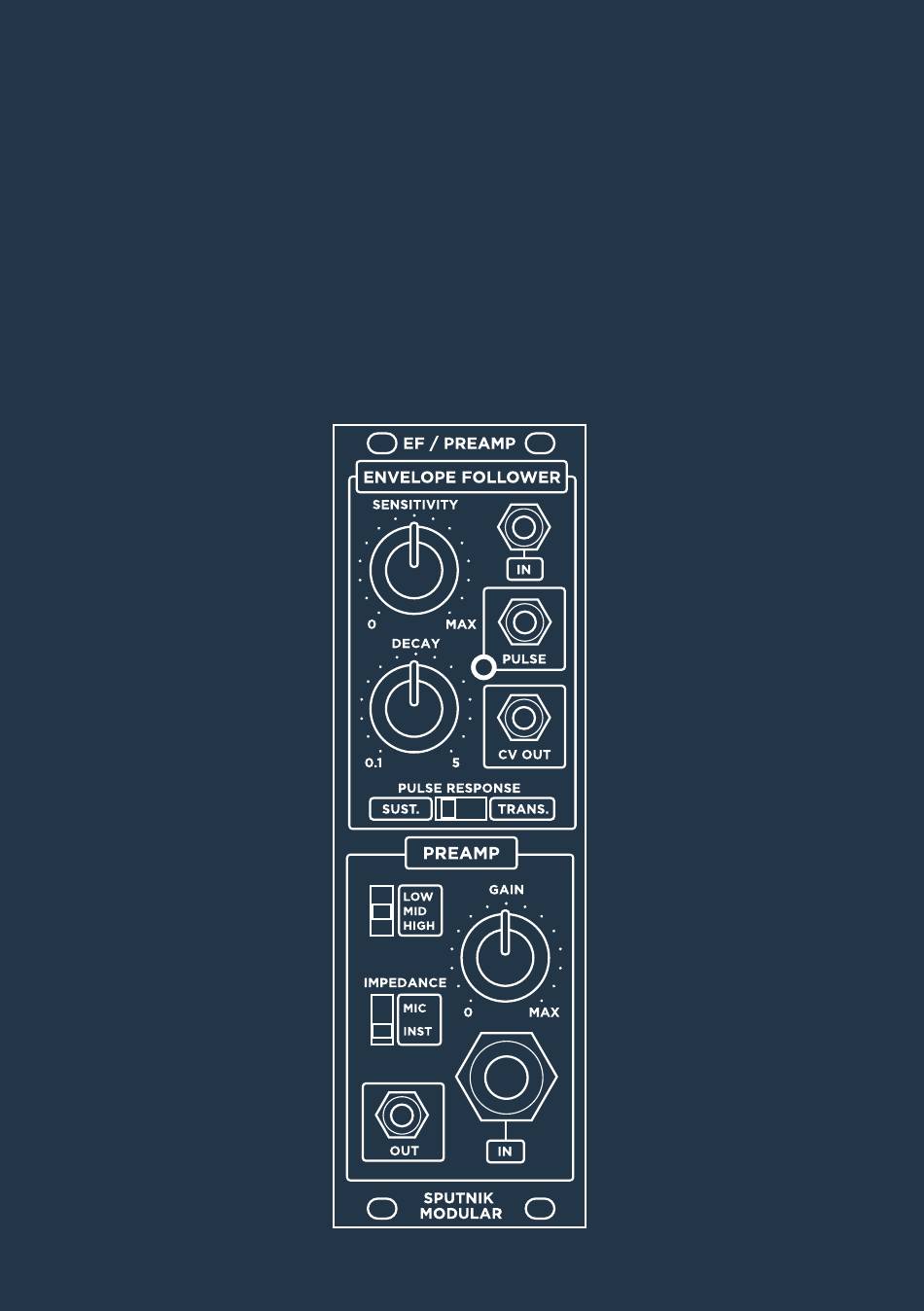

- Page 6 SPUTNIK MODULAR ENVELOPE FOLLOWER / PREAMP EF IN/OUT JACKS EF CONTROLS INPUT SENSITIVITY Eurorack modular level audio input Acts as an attenuator for the (10V P2P). If no input is present, the incoming audio signal, allowing output of the preamp section is...
- Page 7 ENVELOPE FOLLOWER / PREAMP WARRANTY This product is covered by the Sputnik Modular warranty, for one year following the date of purchase. This warranty covers any defect in the manufacturing of this product. This warranty does not cover any damage or malfunction caused by incorrect use –...
