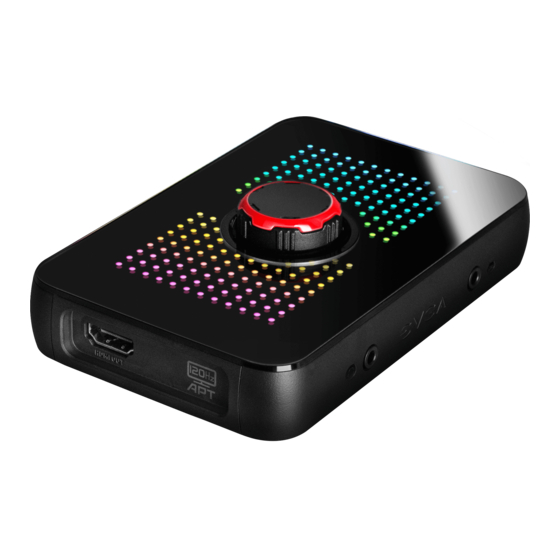

Summary of Contents for EVGA XR1

  • Page 1 Quick Guide More...
  • Page 2: Inside The Box

    Inside The Box Please check all these items are included. EVGA XR1 Quick Guide HDMI 2.0 Cable USB 3.0 Type-C 3.5mm Audio Cable to Type-A Cable...
  • Page 3: Specification

    Specification Interface USB 3.0 Type-C Input & Output (Pass-Through) HDMI 2.0 Input 480p / 576p / 720p / 1080p / 1440p / 2160p@60fps Pass Through 480p / 576p / 720p / 1080p / 2160p@60fps Advanced Pass Through 720p / 1080p / 1440p@120fps Capture Max Resolution 1080p@60fps Encode format...
  • Page 4 Control Dial Function Left: Switch to Adjust Volume of Mic-In Right: Switch to Adjust Volume of Console Party Link Volume Adjustment mode: Control Volume of Mic-In / Console Party Link LED Mode: Press and hold 3s: Enter/Exit Advanced Pass Through Mode Press Press Press and hold 10s: Device Reset...
  • Page 5: Led Indications

    LED Indications USB 3.0 Mode Solid White Standby with USB 3.0 Connection Mode USB 2.0 Mode Solid Yellow Standby with USB 2.0 Connection Mode Solid White Advanced Pass Through Mode Flashing White Twice Device Reset Solid Red Mic-in Mute...
  • Page 6: Device Layout

    Device Layout HDMI Out HDMI In USB Type-C Mic-In/Line-Out Console Party Link...
  • Page 7 Conf iguration Set Up for Desktop/ Laptop Game Source HDMI Out HDMI In USB Type-C Display Mic-In/ Not Applicable Line-Out Headset...
  • Page 8 For Game Consoles Game Source HDMI Out HDMI In USB Type-C Display Mic-In/ Console Party Link Line-Out Headset Controller...
  • Page 9 For Video Conference Digital Camera Recorder /Digital Camera HDMI In USB Type-C Mic-In/ Not Applicable Line-Out Headset...
  • Page 10 first time. It will attempt to find the most appropriate settings that your PC can handle. You can manually change these settings later. (Reference the EVGA XR1 Capture Card’s Quick Guide on how to connect your device to the EVGA XR1 Capture Card and to your streaming device.) OBS doesn’t capture any video by default, you will need to enable your EVGA XR1 Capture...
