Summary of Contents for Reprolux Cineframe Series

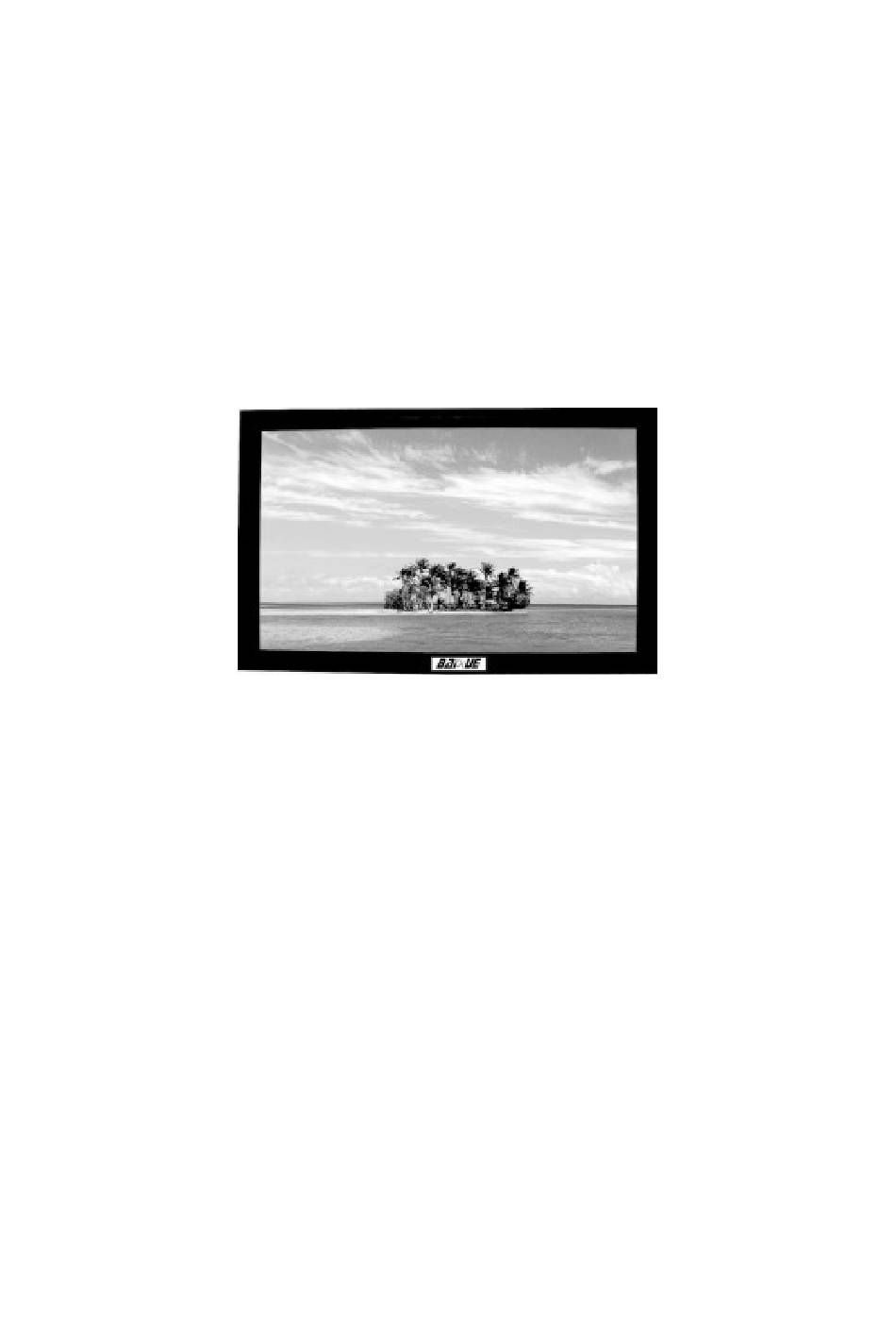

- Page 1 INSTALLAION MANUAL FOR FIXED SCREEN Please read this manual carefully before installing...
- Page 2 Handle with care ininstallation by screws. Process to avoid fall. Figure 1 Insert conrners. Figure 3 Figure 2 Installation of left and right Insert the corners into two Long sides. Short sides finished. Figure 5 Figure 4 Finally long side installation Finished.
- Page 3 Operation Guide for buckle. Figure 9 Same distance for two near buckless,about 300mm. Figure 8 Install buckles.let buckess, Let buckless clip on fabric Tubule pole in fabric tubule. Figure 11 The connection between Buckles and frame. Figure 10 After installing of all buckles Adjust them to same position Between two opposite.
- Page 4 Figure 13 Install brackets. After this, Installation is finished. 1、Side 4PCS 2、Steel pole 4PCS 3、Conner 4PCS M5x25 4、Screw 16PCS M5x10 5、Screw 4PCS 6、Buckle Some 7、Bracket 2PCS 8、Fabric 1PCS 9、Manual 1PCS Operation direction First: Installation finished according to the above drawing, then can choose the appropriate position to be hanging.
- Page 5 effect and quality for the product,pls accord the following way to operate. 1.Pls do not touch the screen surface use any Incisive hard things such as nail 2.Pls use the soft cotton fabric to clear the screen surface. Four: Applicable scope: Home theatre system, Entertainment places,Clubs,Business demonstration and so on...
