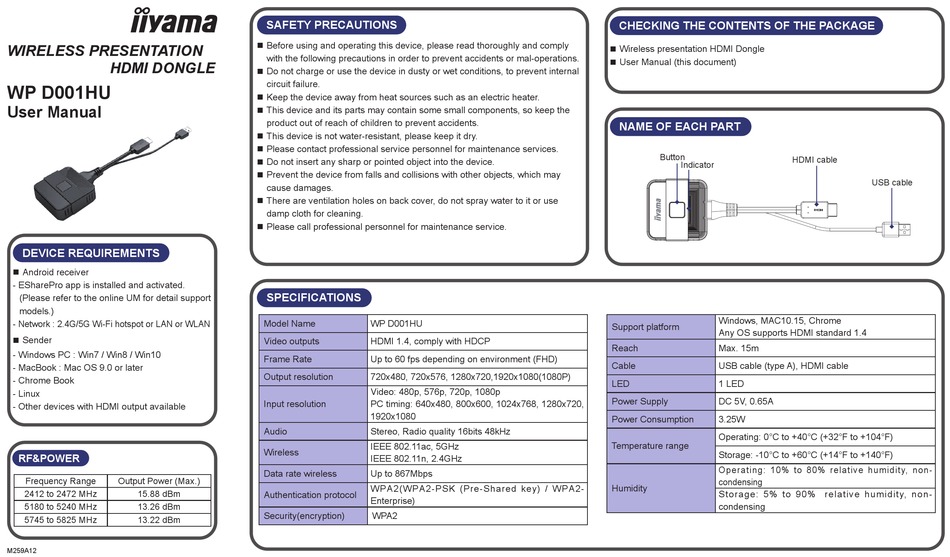

Iiyama WP D001HU User Manual

WIRELESS PRESENTATION
HDMI DONGLE
WP D001HU
User Manual
DEVICE REQUIREMENTS
 Android receiver
- ESharePro app is installed and activated.
(Please refer to the online UM for detail support
models.)
- Network : 2.4G/5G Wi-Fi hotspot or LAN or WLAN
 Sender
- Windows PC : Win7 / Win8 / Win10
- MacBook : Mac OS 9.0 or later
- Chrome Book
- Linux
- Other devices with HDMI output available
RF&POWER
Frequency Range Output Power (Max.)
2412 to 2472 MHz 15.88 dBm
5180 to 5240 MHz 13.26 dBm
5745 to 5825 MHz 13.22 dBm
M259A12
SAFETY PRECAUTIONS
 Before using and operating this device, please read thoroughly and comply
with the following precautions in order to prevent accidents or mal-operations.
 Do not charge or use the device in dusty or wet conditions, to prevent internal
circuit failure.
 Keep the device away from heat sources such as an electric heater.
 This device and its parts may contain some small components, so keep the
product out of reach of children to prevent accidents.
 This device is not water-resistant, please keep it dry.
 Please contact professional service personnel for maintenance services.
 Do not insert any sharp or pointed object into the device.
 Prevent the device from falls and collisions with other objects, which may
cause damages.
 There are ventilation holes on back cover, do not spray water to it or use
damp cloth for cleaning.
 Please call professional personnel for maintenance service.
SPECIFICATIONS
Model Name WP D001HU
Video outputs HDMI 1.4, comply with HDCP
Frame Rate Up to 60 fps depending on environment (FHD)
Output resolution 720x480, 720x576, 1280x720,1920x1080(1080P)
Video: 480p, 576p, 720p, 1080p
Input resolution PC timing: 640x480, 800x600, 1024x768, 1280x720,
1920x1080
Audio Stereo, Radio quality 16bits 48kHz
IEEE 802.11ac, 5GHz
Wireless
IEEE 802.11n, 2.4GHz
Data rate wireless Up to 867Mbps
WPA2(WPA2-PSK (Pre-Shared key) / WPA2-
Authentication protocol
Enterprise)
Security(encryption) WPA2
CHECKING THE CONTENTS OF THE PACKAGE

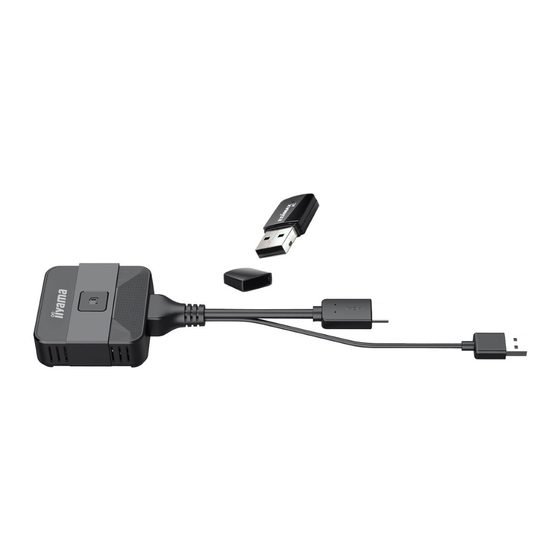

 Wireless presentation HDMI Dongle
 User Manual (this document) 
NAME OF EACH PART
Button
Indicator
Windows, MAC10.15, Chrome
Support platform
Any OS supports HDMI standard 1.4
Reach Max. 15m
Cable USB cable (type A), HDMI cable
LED 1 LED
Power Supply DC 5V, 0.65A
Power Consumption 3.25W
Operating: 0°C to +40°C (+32°F to +104°F)
Temperature range
Storage: -10°C to +60°C (+14°F to +140°F)
Operating: 10% to 80% relative humidity, non-
condensing
Humidity
Storage: 5% to 90% relative humidity, non-
condensing
HDMI cable
USB cable
