Logik L90SSS11 Instruction Manual

Stainless steel steamer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Instruction Manual
Stainless Steel Steamer
L90SSS11

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the L90SSS11 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Logik L90SSS11

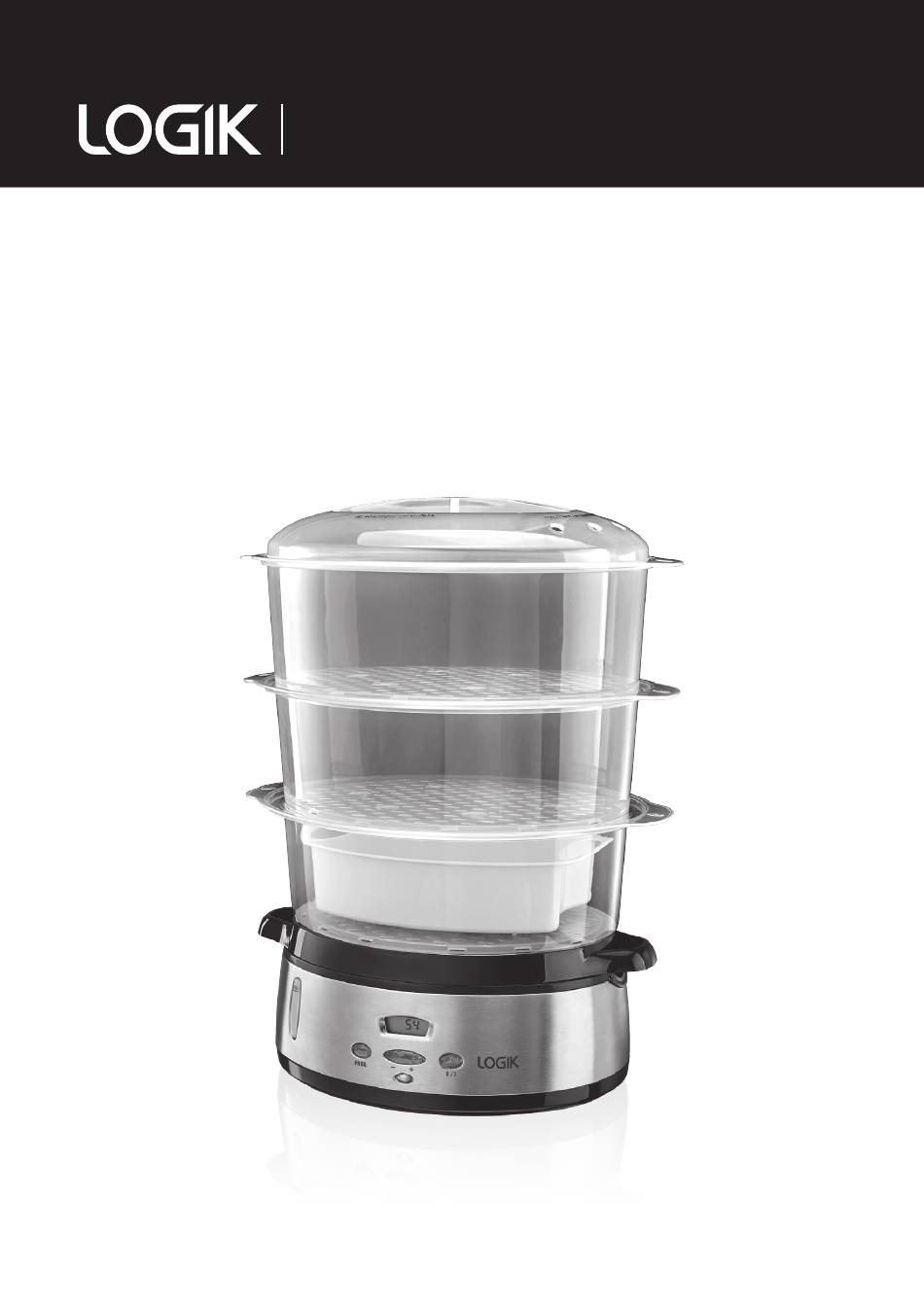

  • Page 1 Instruction Manual Stainless Steel Steamer L90SSS11...

  • Page 2: Table Of Contents

    Contents Safety Warnings ............................3 Unpacking ...............................5 Getting to know your Steamer ......................6 Control Panel ............................7 First Time Use ............................7 How to use your Steamer ........................8 Boil-Dry Protection System ............................. 8 Using the Steam Baskets and Rice Bowl ....................9 Using a Single Steam Basket ............................9 Using Multiple Steam Baskets ............................

  • Page 3: Safety Warnings

    Safety Warnings For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below. • Read all instructions and retain this instruction manual. • Do not touch hot surfaces. Use oven gloves when removing covers or handling hot containers. • Be careful, burns can occur from touching hot parts, hot water, steam or food.
  • Page 4 • Do not place the appliance or any part of the unit near a heat source or in an oven. • Do not allow the mains cable to hang over the edge of the work surface, as it could be accidentally pulled.

  • Page 5: Unpacking

    Thank you for purchasing your new Logik Steamer. These operating instructions will help you use it properly and safely. We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers.

  • Page 6: Getting To Know Your Steamer

    Getting to know your Steamer The 3 steam baskets must be stacked in the sequence shown in the diagram. Rice Bowl Steam Basket No.3 Steam Basket No.2 Steam Basket No.1 Juice Collector Tube Water Basin Inside Max. Water Level Inside Min. Water Level Mains Plug Heating Element Exterior Water...

  • Page 7: Control Panel

    Control Panel Display On/Off Button Adjust +/- Button Programme Indicator Button First Time Use 1. Remove the steamer and all accessories from the packing. Peel off any adhesive labels. 2. Wash the lid, rice bowl, steam baskets and juice collector in warm, soapy water before first use.

  • Page 8: How To Use Your Steamer

    How to use your Steamer 1. Place the steamer base on a flat stable surface, away from walls and over hanging cupboards. 2. Firmly place the tube over the heating element in the water basin. 3. Pour cold water into the water basin. Do not exceed the maximum mark. 4.

  • Page 9: Using The Steam Baskets And Rice Bowl

    Using the Steam Baskets and Rice Bowl Your steamer is equipped with three steam baskets and a rice bowl. Using a Single Steam Basket 1. Place the food in the steam basket no. 1. 2. Place the steam basket on the steamer base and put the lid on. Using Multiple Steam Baskets 1.

  • Page 10: Operation

    Operation Connect the steamer to the mains socket, the display will show the Clock mode. When Clock mode is lit, it means the unit is switched on but not in Steam mode. Setting the Current Time 1. Press and release the PROG button and the 0/I button at the same time, the buzzer will sound.

  • Page 11: Holding Mode

    5. When the countdown has reached zero, the buzzer will sound and the indicator light will illuminate red. The steamer will start to steam according to the set steaming duration. 6. If you want to cancel the steaming, press the PROG button. The steamer will return to Clock mode.

  • Page 12: Care And Maintenance

    Care and Maintenance Cleaning Your Steamer • Never immerse the steamer base, mains cable or mains plug in water. • Unplug at the mains socket and leave the steamer to cool completely for a minimum of 30 minutes before cleaning. • Do not clean any part of the steamer with abrasive cleaners, e.g.

  • Page 13: Recipes

    Recipes • Steaming times stated in the charts and recipes are intended as a guide. If you have followed the instructions and the food is still not sufficiently cooked, simply steam for a little longer until satisfied. • The steaming times are all based on food cooked in the lower basket, unless specifically stated otherwise.

  • Page 14: Rice/Grains

    Food Type Quantity Steam Times Special Notes Peas Frozen 400g 15-18 minutes Stir halfway through steam time. Fresh, very 400g 20-22 minutes Turn each potato over halfway Potatoes small through cooking. Spinach Fresh Frozen 250g 8-10 minutes 400g 18-20 minutes Rice/Grains • If you prefer stickier rice, remove the juice collector.

  • Page 15: Meat And Poultry

    Frankfurters 400g 15 minutes Pierce skins before steaming. (Pre-Cooked) Knockwurst 400g 10 minutes Technical Specification Model L90SSS11 Mains supply 230V ~ 50Hz Power consumption 800W We continually strive to improve our products. Specifications and features may change without prior notice.
  • Page 16 For more information about where you can drop off your waste for recycling, please contact your local authority, or where you purchased your product. DSG Retail Ltd. (co. no. 504877) 1 Portal Way, London, W3 6RS, UK IB-L90SSS11-151126V5...
