electric-star.com - info@electric-star.com

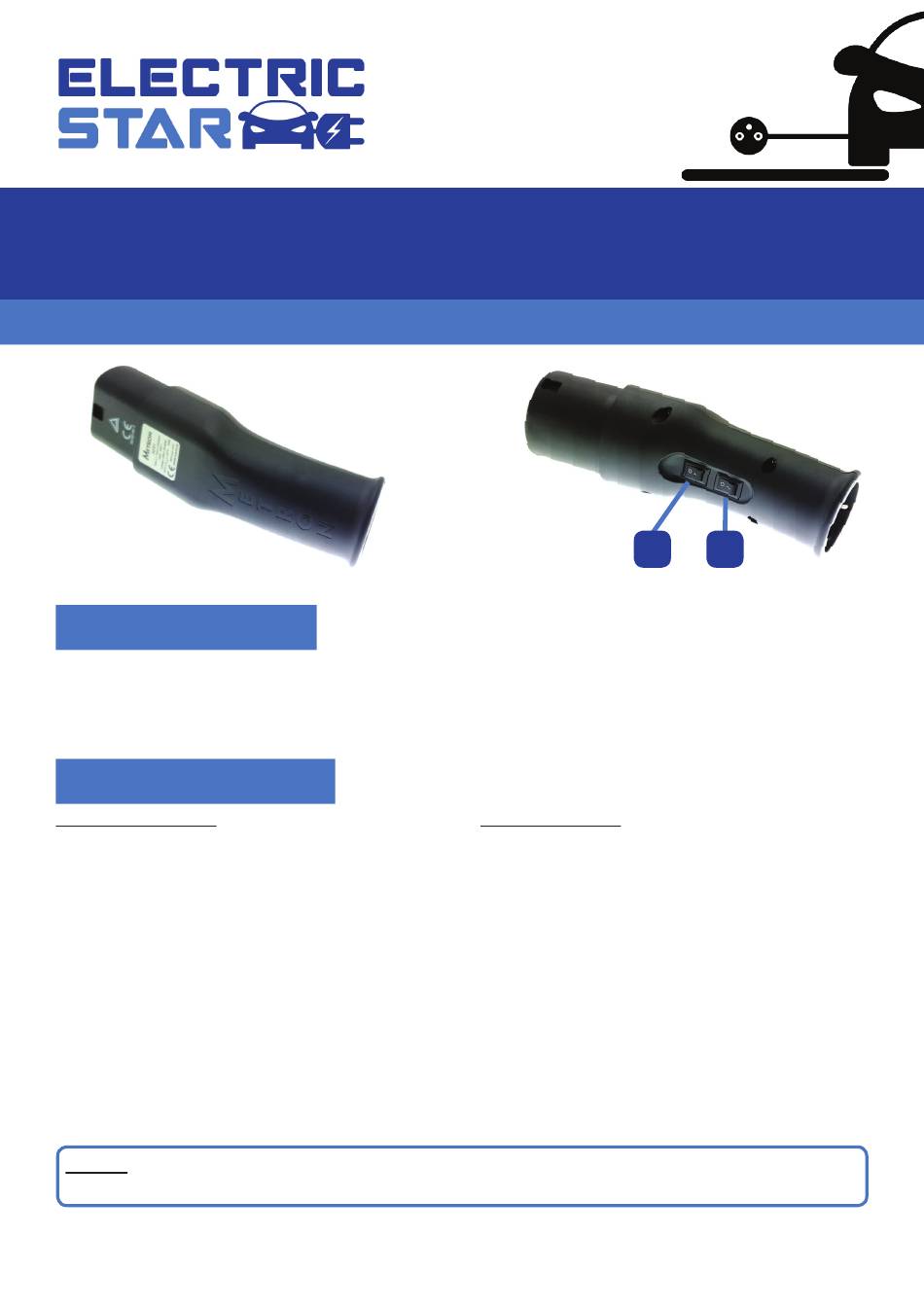

Type 2 to domestic socket adapter 16A
INTRODUCTION

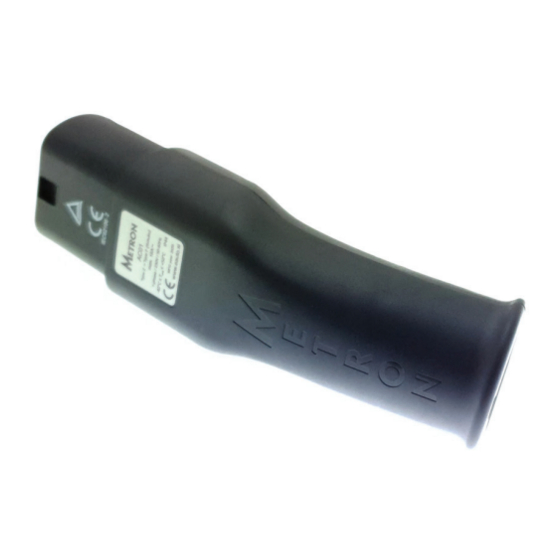

AC01 adapter is made for electric vehicles charging on classic domestic electric socket. Thanks to AC01 adapter, it is
now possible to charge these vehicles on public charging stations having Type 2 socket (IEC 62196). The adapter sends
a "vehicle connected" and "vehicle ready to charge" signal to the public charging station. This supplies power to the
domestic Schuko socket of the adapter.
HOW TO USE ?
START CHARGING:
1. Plug the adapter to the Type 2 socket from the public
charging station.
2. Turn
A switch
ON. Charging station receives a mes-
sage "vehicle connected" and locks the adapter (if it
has a locking system).
B switch
3. Turn
ON. Charging station receives a mes-
sage "vehicle ready to charge".
4. Charging station starts providing current to the elec-
tric domestic socket from the adapter.
5. Connect vehicle cable to the electric domestic socket
of the adapter in order to charge.
Remark: Some charging station do not require to follow this procedure. In such case, they start charging when the
adapter is plugged in with A and B switches already ON.
© Electric-Star
AC01
END CHARGING:
1. Disconnect vehicle from adapter.
B switch
2. Turn
ing power.
3. Turn
A switch
adapter (if it has a locking system).
4. Unplug the adapter from the charging station.
5. Have a nice trip :)
ES-AC01-USER-MANUAL-EN-v2
USER MANUAL
A
B
OFF. Charging station stops supply-
OFF. Charging station releases the
Page 1
Advertisement
Table of Contents
Summary of Contents for Electric Star AC01
- Page 1 USER MANUAL INTRODUCTION AC01 adapter is made for electric vehicles charging on classic domestic electric socket. Thanks to AC01 adapter, it is now possible to charge these vehicles on public charging stations having Type 2 socket (IEC 62196). The adapter sends a “vehicle connected”...
- Page 2 16A current for long time. However, if the Schuko plugged into it is of bad quality, over- heating can occur. Overheating is detected by the built-in temperature sensor of AC01 adapter. If necessary, adapt- er sends a signal to the charging station, requesting to shutdown power supply. When system has cooled down enough, adapter automatically sends a new instruction to the charging station so that power supply restarts.
