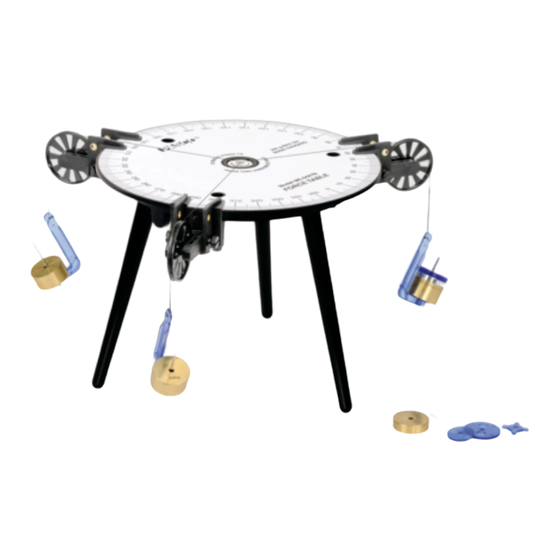

Super Pulley Force Table
Product Description
The Super Pulley Force Table is used to explore the addition of vectors using the concept
of forces in equilibrium. The vectors are forces supplied by the weight of masses that
hang over pulleys. Two masses hanging over pulleys placed at given angles are balanced
by a third mass over a pulley at another angle.
What's Included
Force Table Assembly
1
Includes three detachable legs that can
be stored in the leg holders and clips on
the underside of the table.
3× Super Pulley with Clamp
2
For attaching to the edge of the force
table.
Recommended Accessories
• Mass and Hanger Set (ME-8979)
ME-9447B
1
Product Guide | 012-13471B
2
3
3× String Tie
3
Install one String Tie in the center
recess of the Force Table. Two spares
are included.
Spool of Thread
4
For attaching masses to the String Tie.
4
1
Advertisement
Related Manuals for PASCO ME-9447B
Summary of Contents for PASCO ME-9447B
- Page 1 Product Guide | 012-13471B Super Pulley Force Table ME-9447B Product Description The Super Pulley Force Table is used to explore the addition of vectors using the concept of forces in equilibrium. The vectors are forces supplied by the weight of masses that hang over pulleys.
- Page 2 Super Pulley Force Table | ME-9447B Force Table Features Scale Stacking peg For measuring the angles of the force For inserting into the recess holes on vectors. the top of the force table to stack multiple Force Tables. Laminated top...
- Page 3 Product Guide | 012-13471B Install the String Tie The String Tie is used to indicate when forces are in equilibrium. Forces pulling on the movable clear disk are balanced when the disk is centered in the String Tie ring.The String Tie needs to be installed in the Force Table before first use. Figure 1.
- Page 4 Super Pulley Force Table | ME-9447B Assemble the Force Table Figure 2. The Force Table completely assembled. Install the Legs 1. Turn the Force Table upside down. Remove a leg from its storage clip and holder. 2. Line up the leg screw with a threaded hole in the underside of the Force Table.
- Page 5 Product Guide | 012-13471B Attach the Pulleys 1. Move the pulley yoke to the lower position on the clamp: a. Unscrew the thumbscrews on both sides of the clamp. b. Align the holes in the yoke with the lower clamp holes. c.
- Page 6 3. Stack multiple Force Tables by inserting the stacking pegs of one table into the storage recesses of another table. Experiments Print-ready experiment worksheets for this product are available to download from the PASCO website. Go to www.pasco.com/freelabs and enter ME-9447B to access all experiments related to this product.
-
