Summary of Contents for Connective Touch FLEXI

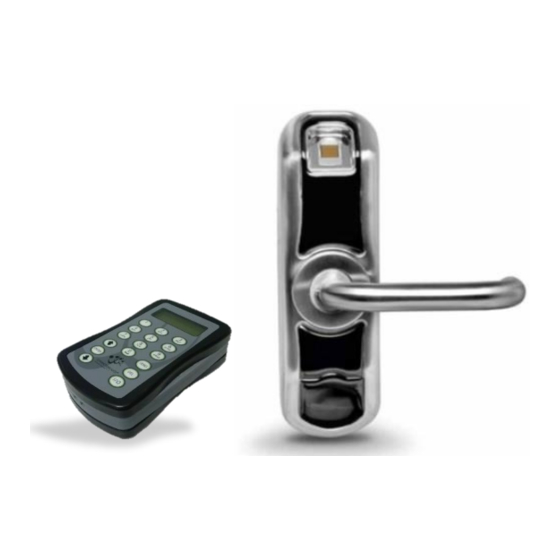

- Page 1 FLEXI/FLEXI GOLD Battery standalone, and mains powered. USER GUIDELINES...
-
Page 2: Table Of Contents
TIPS FOR BEST FINGERPRINT ENROLMENT ........5 LEVELS OF PERMISSIONS ............6 ADMIN (Max. 1 Admin - ComPad) .......... 6 USER (Max. 150 Users - Flexi Unit)........6 COMPAD MENU ..............8 ENTER COMPAD MENU ............8 ENROL ADMIN ..............8 DELETE ADMIN .............. - Page 3 ComPad ..............20 FINGERPRINT SENSOR ............. 20 APPENDIX ................21 TROUBLESHOOTING ............... 21 FLEXI UNIT BEEPS INTERMITTENLY........21 ENROLMENT UNSUCCESSFUL ..........21 UNRECOGNIZED ENROLLED USER ......... 21 FREE HANDLE UPON RECOGNITION ........22 ComPad DOES NOT SWITCH ON........... 22...
-
Page 4: Getting Started
11-character user name each. The ComPad is provided to enrol approved personnel into the Flexi unit. Each Flexi or group of Flexis is uniquely encrypted to a ComPad, making it the combination unique. The ComPad is accessed with one... -
Page 5: Important Safeguards
Clean the sensor occasionally with dry wipes to maintain the performance of the sensor. COMPLETE PACKAGE 2 FLEXI UNIT 2 COMPAD UNIT FLEXI/FLEXI GOLD AND COMPAD MS|2706|DS|04|19 USER MANUAL... -
Page 6: Enrolment Process
ENROLMENT PROCESS The ComPad is provided to enrol approved personnel into the Flexi unit. The level permissions of each user are saved in the Flexi Unit so that can be downloaded to the ComPad. TIPS FOR BEST FINGERPRINT ENROLMENT WHAT YOU SHOULD DO... -
Page 7: Levels Of Permissions
Display USERS (downloaded from Flexi unit). SEND LIST PC (download USERS from ComPad to PC USB) Change ADMIN password. Delete all USERS. Access secured area. USER ( Max. 150 Users - Flexi Unit) Access secured area. FLEXI/FLEXI GOLD AND COMPAD MS|2706|DS|04|19 USER MANUAL... - Page 8 ENROL ADMIN COMPAD MENU Deletes Admin details DELETE ADMIN COMPAD MENU Changes Admin details ADD ADMIN COMPAD MENU Transfers enrolled Usernames from Flexi GET USERS to ComPad COMPAD MENU Deletes access permission User from DELETE USER Flexi COMPAD MENU ENROL USER...
-
Page 9: Compad Menu
Keep finger on the fingerprint sensor. ON SENSOR… PRESS SEND Keep finger on the fingerprint sensor. On ComPad SENDING Keep finger on the fingerprint sensor. WAIT… ENROLLED OK Enrolment successful, move finger away. PUSH ANY KEY FLEXI/FLEXI GOLD AND COMPAD MS|2706|DS|04|19 USER MANUAL... -
Page 10: Delete Admin
USER stored in the lock so that can be too long) removed easily later. See the example below: Real User name: MICHAEL WILLIAMS – Too long for ComPad Tips for spelling: M WILLIAMS - MICHAEL WIL –MICHL WILLMS FLEXI/FLEXI GOLD AND COMPAD MS|2706|DS|04|19 USER MANUAL... - Page 11 To Delete the ADMIN from the lock, use the GET USERS option and then the DELETE USER option as described in this document, otherwise his/her fingerprint will still have access through that door. FLEXI/FLEXI GOLD AND COMPAD MS|2706|DS|04|19 USER MANUAL...
-
Page 12: Enrol User
M WILLIAMS – MICHAEL WIL- MICHL WILLMS ENROLLING… Wait for the next screen <USER’S NAME> PLACE FINGER Keep finger on the fingerprint sensor. ON SENSOR… PRESS SEND Keep finger on the fingerprint sensor. On ComPad FLEXI/FLEXI GOLD AND COMPAD MS|2706|DS|04|19 USER MANUAL... - Page 13 Keep finger on the fingerprint sensor. WAIT… ENROLLED OK Enrolment successful, move finger away. PUSH ANY KEY NO LOCK RESP If ENROLMENT FAILS, this message will be PRESS ANY KEY shown, in which case try again. FLEXI/FLEXI GOLD AND COMPAD MS|2706|DS|04|19 USER MANUAL...
-
Page 14: Get Users
Find this option using UP/DOWN in COMPAD GET USERS MENU and press ENTER on keypad. REPLACE OLD? Press 1 to get the users from FLEXI to YES(1) NO(0) Com.Pad or Press 0 to cancel and return ERASING LIST Wait for the next screen WAIT…... -
Page 15: Display Users
(This must be done using the GET USERS option to read the USERS LIST from the Flexi lock before the USERs in a specific lock can be viewed or deleted This displays ALL the fingerprints saved in the Lock ADMIN,... -
Page 16: Send List To Pc
This menu must only be used if the USER list has been downloaded previously from the Flexi lock (This must be done using the GET USERS option to read the USERS LIST from the Flexi lock before the USERs in a specific lock can be viewed or deleted) ComPad Print software must be installed. -
Page 17: Delete User
Press any key. Deleted successful PUSH ANY KEY Note: if a User is deleted from the Lock, it will NOT be deleted from this list until the list has been downloaded again using GET USERS option. FLEXI/FLEXI GOLD AND COMPAD MS|2706|DS|04|19 USER MANUAL... -
Page 18: Delete All Users
DEL ALL USRS MENU and press ENTER on keypad. DEL ALL USRS Place and Keep an unregistered finger on YES(1) NO(0) the FLEXI sensor and press 1 to delete. SENDING Keep finger on the FLEXI sensor and wait. WAIT… DELETED!! Press any key. -
Page 19: Software Installation
SOFTWARE INSTALLATION The ConnectiveTouch Print ComPad list software is provided to easy find the enrolled personnel in a Flexi unit. CD Software Installation A CD is included to install the install the ConnectiveTouch Print ComPad list software and USB drivers. Follow the next steps: 1. -
Page 20: Opening The Door - (Enrolled User)
Only ENROLLED USERS can have access to the secure area. Opening the door is possible by placing the ENROLLED FINGER on the fingerprint Flexi sensor located on the top edge of the Flexi unit. OPENING THE DOOR – (ENROLLED USER) -
Page 21: Maintenance
AA/LR6), which are inserted when the “beep” is reported (please note that batteries MUST be correctly inserted so as to not damage the Flexi Unit. The Flexi will remember the ENROLLED USERS upon changing the batteries. You do NOT need to reenrol anyone. How to change the batteries? 1. -
Page 22: Appendix
APPENDIX TROUBLESHOOTING FLEXI UNIT BEEPS INTERMITTENLY. When the batteries are low, the FLEXI unit beeps intermittently. Change batteries to the Flexi unit as soon as possible. ENROLMENT UNSUCCESSFUL Make sure the finger’s midpoint is placed at the centre of the fingerprint sensor. -
Page 23: Free Handle Upon Recognition
Make sure the “I/O” Button is NOT being pressed and held during for longer as this will cause the ComPad to start switching off. If the problem persists, change the batteries and try again. If the problem persists, please contact Technical Support FLEXI/FLEXI GOLD AND COMPAD MS|2706|DS|04|19 USER MANUAL... - Page 24 Connective Touch has a help desk, manned by the people that designed and developed Connective Touch products, ensuring that all end users can fully understand the potential of their product and how to maximise the benefits, safe in the knowledge they can trust the support and advice they receive.
