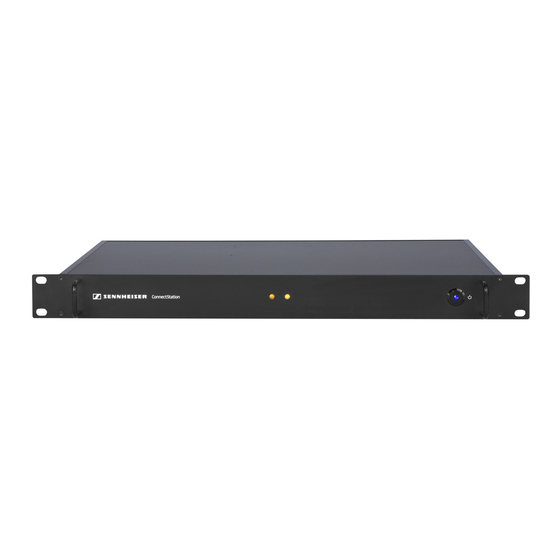

Sennheiser ConnectStation CS1-M MobileConnect Quick Manual

560069_0615_A02_QG_ConnectStationCS1-M_PRT.pdf 1 01.07.2015 14:04:43
ConnectStation CS1-M
1 Connecting the product to the mains
AC Power
supply
3 Switching the product ON
Briefly press
the button
< 1s
boot up
orange
5.1 Connecting a laptop
LAN cable to
5.3 Logging in to the system
user name: admin
password: ******
Default user name: "admin"
password: "sennheiser"
MobileConnect
on
system running
green green
Enter user name and
password for login.
Quick Guide
2 Connecting audio devices
1 2 3
4
4 Connecting the access point
Zoneflex 7372
access point
Power supply
access point
5.2 Configuring the laptop
http://192.168.0.10/
5.4 Performing the initial setup
1: Administrator Login
new password:
2: Configure Regulatory Domain
3: Configure Access Point
The configuration ist done. The system is ready to connect to a mobile
device containing the MobileConnect App.
1 AUDIO BREAKOUT
2x RCA unbalanced
2 ADAT/SPDIF
Toslink input
8 channels, 24 bit
3 SPDIF/AES
1x RCA
4 ANALOG IN
4x 1/4" (6.3 mm)
TRS jack
servo balanced
The ConnectStation provides DHCP
service to the access point and clients.
Connect the access point directly
to the ConnectStation.
Configure the laptop with the
static IP address 192.168.0.2
Open your browser and
navigate to: 192.168.0.10
Follow the instructions in the Web
Interface to perform the initial setup
of your ConnectStation.
