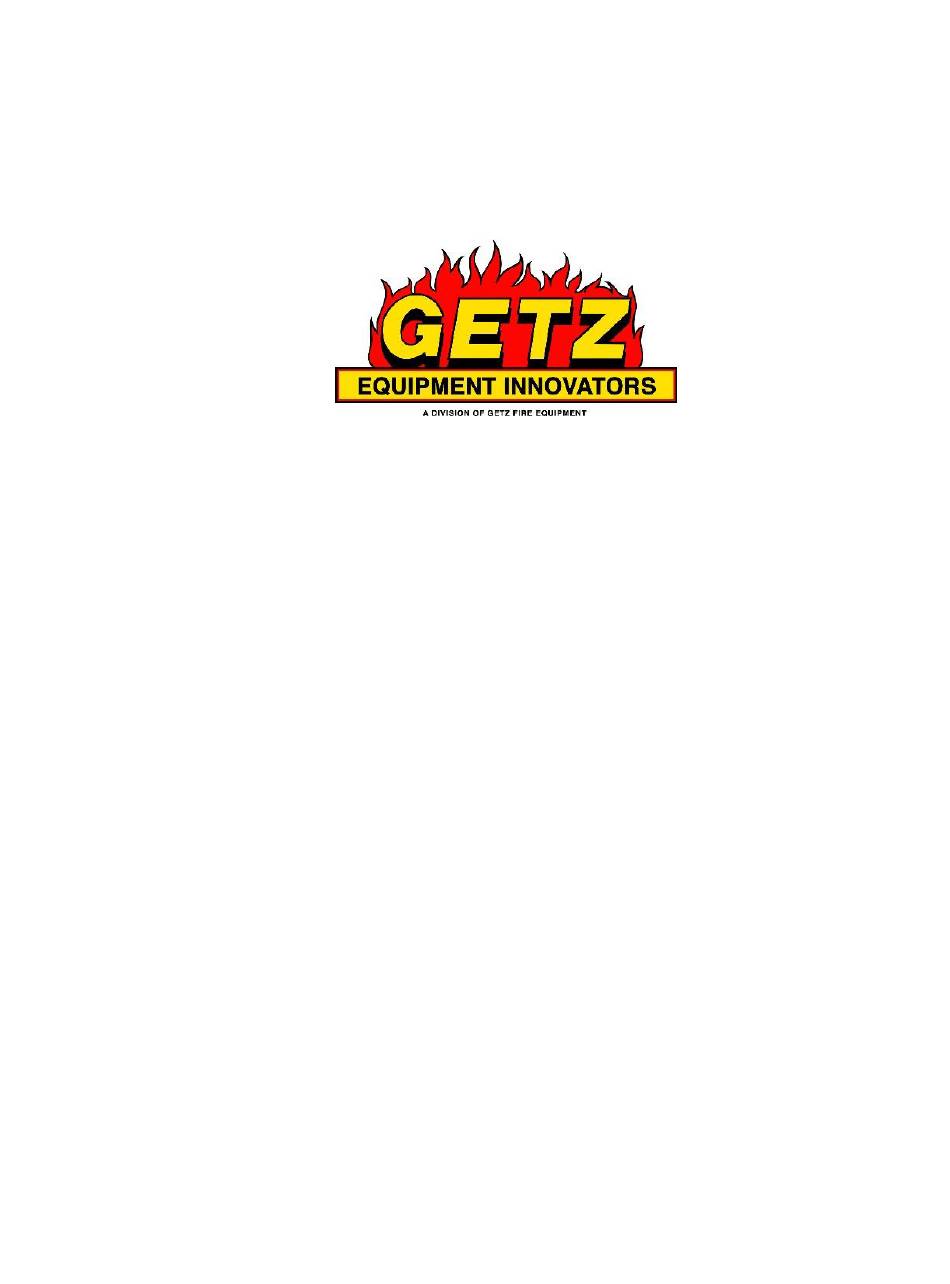

- Page 1 GETZ EQUIPMENT INNOVATORS PART NO.: 3G58634 MODEL: BV 101 P PNEUMATIC BELT VISE...
- Page 2 BELT VISE PART NO.: 3G58634 TABLE OF CONTENTS PAGE # 1 ............SPECIFICATIONS AND REQUIREMENTS 2 ............SET-UP AND OPERATION PROCEDURE 3 ............PARTS LIST 4 ............SCHEMATIC 5 ............SCHEMATIC 6 ............SCHEMATIC 7 ............TROUBLE SHOOTING...
- Page 3 SPECIFICATIONS AND REQUIREMENTS SPECIFICATIONS: HEIGHT - 38 INCHES (96.5 cm) WIDTH – 16.75 INCHES (42.5 cm) LENGTH – 27.25 INCHES (69 cm) WEIGHT - 130 LBS (59 Kg) SHIPPING WEIGHT - 154 LBS (70 Kg) SHIPPING CONTAINER SIZE: HEIGHT – 41.75 INCHES (106 cm) WIDTH –...
- Page 4 SET-UP AND OPERATIONS REFER TO SCHEMATIC Step 1 - Locate the belt vise in an area where the operator will have acces to adjust the belt handle (item #20) and room to devalve the cylinder. Step 2 - After placement of the belt vise, bolt base plate to the floor with lag screw or bolts to secure the vise from moving when devalving cylinders.
- Page 5 PARTS LIST PART # DESCRIPTION 1G51835 STAND PEDESTAL ONLY 1G51725 PLATE RESTRAINING BELT 1G58512 BELT 33 WRAP AROUND ONLY 1G51411 HORSE SHOE 3G59484 VLV PUSH/PULL PARKER W/KNOB 1G51230 CONNECTOR PLAS 3/8 MPT X 1/4 TUBE 1G0047 MTL NYCOIL 1/4 YL 10 FT 1G0047 MTL NYCOIL 1/4 YL...
- Page 9 TROUBLESHOOTING PROBLEM SOLUTION 1) Vise isn’t holding cylinder 1) a. Adjust pressure to 100-140 PSI b. Check for air leaks & repairs 2) Replace valve – P/N: 3G59484 2) Air leak in control valve 3) Air leak in air cylinder body 3) Repair air cylinder cylinder P/N: 1G0397 4) Air blows out exhaust post 4) Repair air cylinder cylinder P/N: 1G0397...
