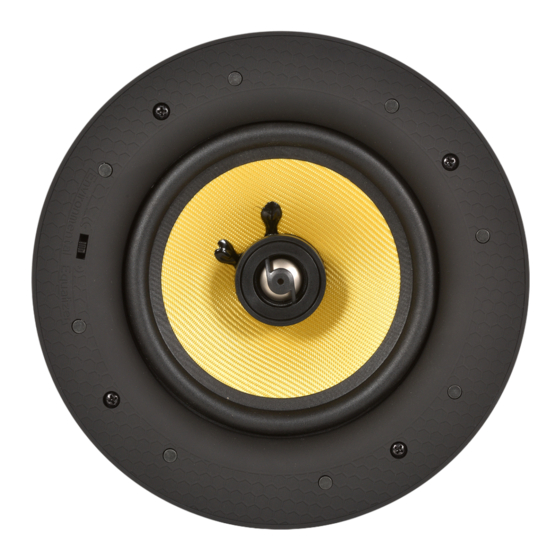

Metro Audio Systems TL-6 Operation Manual

IN-CEILING FRAMELESS SPEAKER
Use the enclosed template to mark out the
1
cutout, then simply cut along the line.
This is the only cut you'll need to make!
Model Installation
dimension (mm)
Φ210
6.5"
2
When laying the loudspeaker cable from
the ampli er to the installation point, be
sure that the cable ends about 30 cm (12'')
beyond the wall cutout.
Please connect the speaker cable to
the screw clamps. Ensure that the
polarity is correct.
3
Tighten clamp screws until you can feel
the frame, press rmly against the wall.
This indicates that the clamp is extended
and is gripping the wall.
4
5
The grill to cover the speaker can simply be
coated with regular paint. lf the grill comes
with an additional coating this must be
removed before painting.
Speaker Operation Manual

Equipment You Will Need

Installation
depth (mm)
>94
when required.
