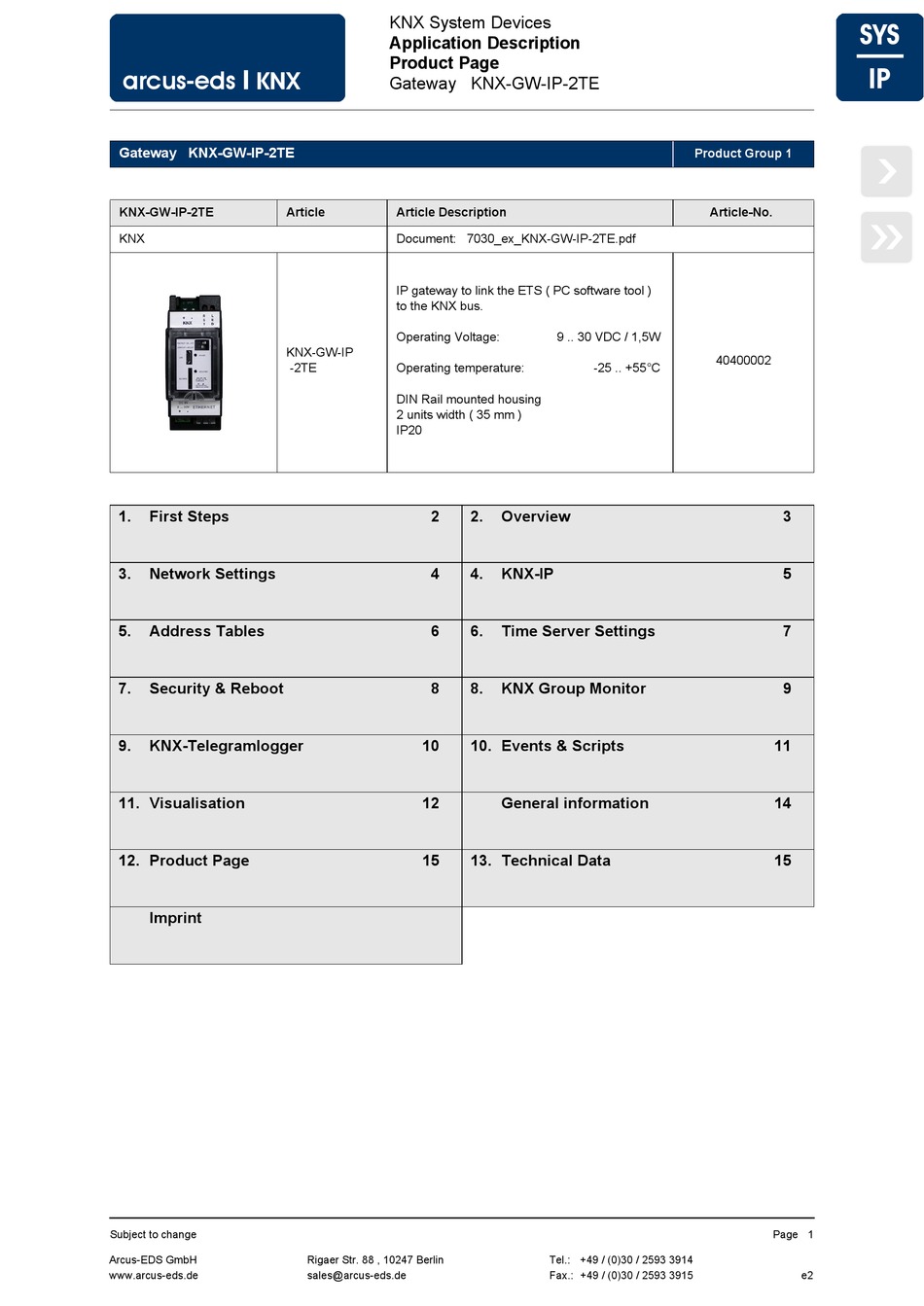

Seite 1
arcus-eds
Gateway KNX-GW-IP-2TE
KNX-GW-IP-2TE
KNX
1.
First Steps
3.
Network Settings
5.
Address Tables
7.
Security & Reboot
9.
KNX-Telegramlogger
11. Visualisation
12. Product Page
Imprint
Subject to change
Arcus-EDS GmbH
www.arcus-eds.de
I
KNX
Article
KNX-GW-IP
-2TE
Rigaer Str. 88 , 10247 Berlin
x
sales@arcus-eds.de
KNX System Devices
Application Description
Product Page
Gateway KNX-GW-IP-2TE
Article Description
Document: 7030_ex_KNX-GW-IP-2TE.pdf
IP gateway to link the ETS ( PC software tool )
to the KNX bus.
Operating Voltage:
9 .. 30 VDC / 1,5W
Operating temperature:
DIN Rail mounted housing
2 units width ( 35 mm )
IP20
2
2.
Overview
4
4.
KNX-IP
6
6.
Time Server Settings
8
8.
KNX Group Monitor
10
10. Events & Scripts
12
General information
15
13. Technical Data
Tel.: +49 / (0)30 / 2593 3914
Fax.: +49 / (0)30 / 2593 3915
Product Group 1
Article-No.
40400002
-25 .. +55°C
SYS
IP
›
»
3
5
7
9
11
14
15
Page 1
e2
Advertisement
Table of Contents
Summary of Contents for Arcus-EDS KNX-GW-IP-2TE
- Page 1 Seite 1 KNX System Devices Application Description Product Page arcus-eds Gateway KNX-GW-IP-2TE › Gateway KNX-GW-IP-2TE Product Group 1 » KNX-GW-IP-2TE Article Article Description Article-No. Document: 7030_ex_KNX-GW-IP-2TE.pdf IP gateway to link the ETS ( PC software tool ) to the KNX bus.
-
Page 2: First Steps
Seite 2 KNX System Devices Application Description arcus-eds Gateway KNX-GW-IP-2TE › 1 First Steps » To use the gateway all 3 connectors must be connected. « ‹ RJ45 (Ethernet) As soon as all connections are established and your router or server is working as a DHCP-Server ( Dynamic Host Configuration Protocol ) the IP-Gateway of your ETS can be selected as a possible connection. - Page 3 Seite 3 KNX System Devices Application Description arcus-eds Gateway KNX-GW-IP-2TE › 2 Overview » Having successfully entered your IP address into the address bar, you will be taken to the overview. « ‹ Here you will be shown a summary of the general functions and capabilities of the system.
-
Page 4: Network Settings
Seite 4 KNX System Devices Application Description arcus-eds Gateway KNX-GW-IP-2TE › 3 Network Settings » « ‹ Device network name ( Standard: ArcusIPGW ) can be changed as desired and serves to identify the device within the network. MAC-adress: This cannot be changed, and is printed on the device's box. - Page 5 Seite 5 KNX System Devices Application Description arcus-eds Gateway KNX-GW-IP-2TE › 4 KNX-IP » « ‹ The Defaultport for KNX/IP is 3671. Changing the port will disable the automated detection by the ETS. You may however customize the port and set up an individual KNX/IP-Network via the ETS communication settings.
-
Page 6: Address Tables
Seite 6 KNX System Devices Application Description arcus-eds Gateway KNX-GW-IP-2TE › 5 Address Tables » In this menu all configurations relating to Acknowledge, logging and routing tables can be adjusted. Acknowledge Tables are helpful in reducing traffic on the KNX-bus. Whenever a telegram in the KNX-bus is not being «... -
Page 7: Time Server Settings
Seite 7 KNX System Devices Application Description arcus-eds Gateway KNX-GW-IP-2TE › 6 Time Server Settings » « ‹ Temporal information is aquired by The KNX-IP gateway via. a NTP- time server ( Network Time Protocoll ) providing an NTP-time server is available. - Page 8 Seite 8 KNX System Devices Application Description arcus-eds Gateway KNX-GW-IP-2TE › 7 Security & Reboot » To set up your login and password Your login and password are not set by default, you can « however set them up yourself.
- Page 9 Seite 9 KNX System Devices Application Description arcus-eds Gateway KNX-GW-IP-2TE › 8 KNX Group Monitor » « ‹ Using the KNX-group monitor allows for the monitoring and transfer of telegrams via the KNX-bus in real time. The site of the KNX-group monitor is subdivided into a configuration and a telegram section.
- Page 10 Seite 10 KNX System Devices Application Description arcus-eds Gateway KNX-GW-IP-2TE › 9 KNX-Telegramlogger » The KNX-IP-gateway is able to save telegrams. The KNX-telegram logger lists the saved telegrams. It is possible to set a timeframe as well as a group address filter.
- Page 11 Seite 11 KNX System Devices Application Description arcus-eds Gateway KNX-GW-IP-2TE › 10 Events & Scripts » « ‹ To receive notifications, an email and/or XMPP messenger client must be installed. it is recommended that you ask your systemadmin or provider for the correct settings of the SMTP-server. Should problems with the µSD-card arise, a service-email can be sent to a mail address, provided that a SMTP-connection has already been set up.
- Page 12 Seite 12 KNX System Devices Application Description arcus-eds Gateway KNX-GW-IP-2TE › 11 Visualisation » The gateway can link html-sites with KNX-files and visualize them in every browser, provided that websockets are supported. « ‹ The visualization is available at http://'gatewayname'/visu/ resp. http://'gatewayname'/visu/index.html ( Example: http://arcusipgw.fritz.box/visu/ resp.
- Page 13 Seite 13 KNX System Devices Application Description arcus-eds Gateway KNX-GW-IP-2TE › » « ‹ Subject to change Page 13 Arcus-EDS GmbH Rigaer Str. 88 , 10247 Berlin Tel.: +49 / (0)30 / 2593 3914 www.arcus-eds.de sales@arcus-eds.de Fax.: +49 / (0)30 / 2593 3915...
-
Page 14: General Information
Seite 14 KNX System Devices Application Description arcus-eds Gateway KNX-GW-IP-2TE › Example for a simple HTML visualization » « ‹ General information To use groupmonitoring and telegramlogging your browser must support websockets. If this is not the case, a notification will be displayed on the respective pages. -
Page 15: Product Page
Gateway KNX-GW-IP-2TE › 12 Product Page » The KNX-GW-IP-2TE is used for coupling the ETS ( PC software tool ) Article No. 40400002 via Ethernet to the KNX bus for addressing and programming KNX components. Using the KNX-group monitor allows for the monitoring and transfer of «... -
Page 16: Warranty
Publisher: Arcus-EDS GmbH, Riga Str 88, 10247 Berlin Responsible for Content: Hjalmar Hevers, Reinhard Pegelow Reprint, also in extracts, only with permission from Arcus-EDS GmbH. All information subject to technical modifications and price changes are reserved. « Liability The selection of devices and the determination of the suitability for a particular use are solely the responsibility of the buyer.
