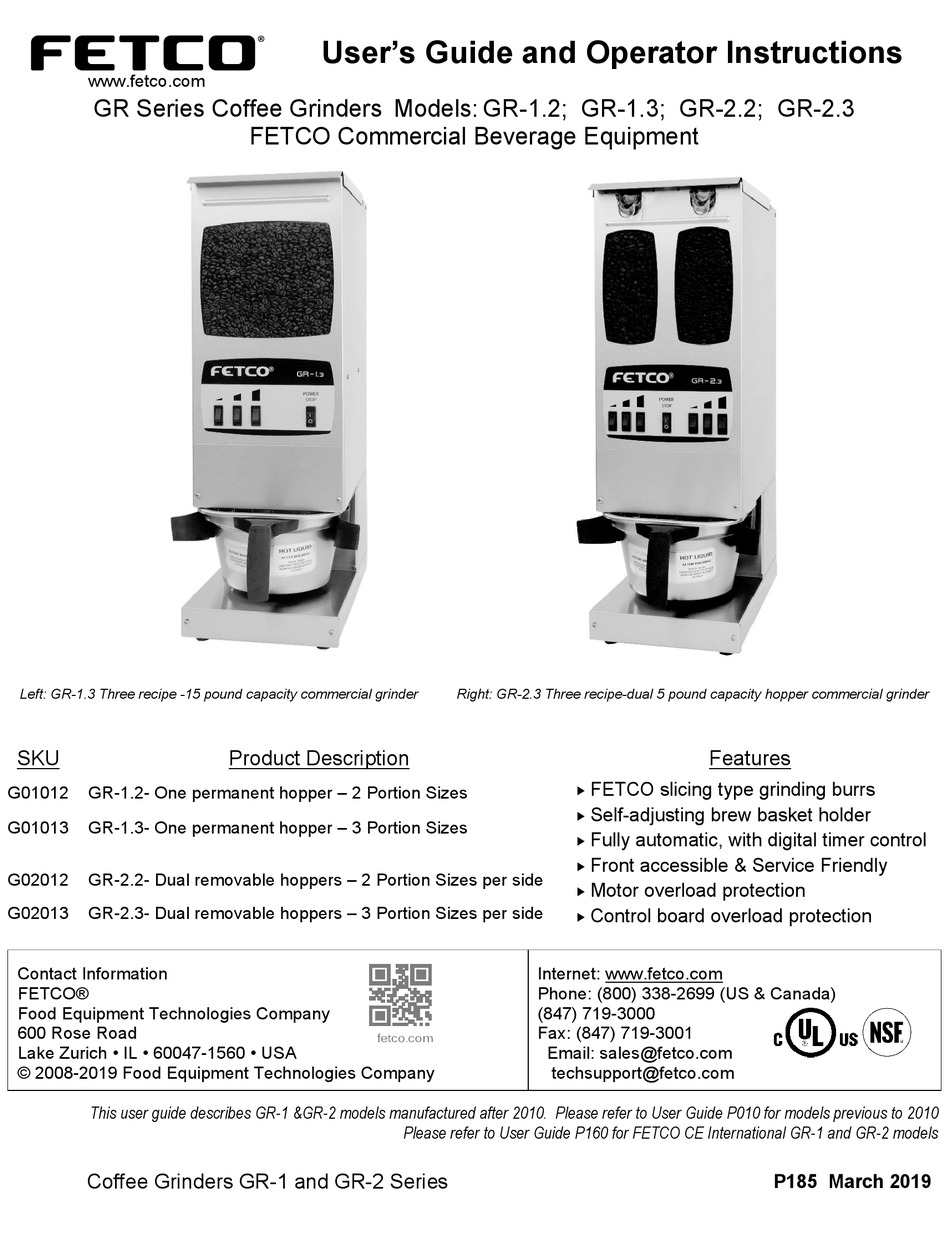

www.fetco.com
GR Series Coffee Grinders Models: GR-1.2; GR-1.3; GR-2.2; GR-2.3

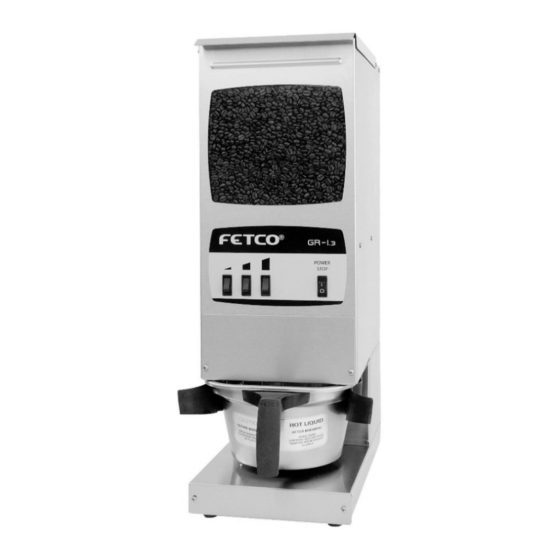

Left: GR-1.3 Three recipe -15 pound capacity commercial grinder
SKU
G01012
GR-1.2- One permanent hopper – 2 Portion Sizes
G01013
GR-1.3- One permanent hopper – 3 Portion Sizes
G02012
GR-2.2- Dual removable hoppers – 2 Portion Sizes per side
G02013
GR-2.3- Dual removable hoppers – 3 Portion Sizes per side
Contact Information
FETCO®
Food Equipment Technologies Company
600 Rose Road
Lake Zurich • IL • 60047-1560 • USA
© 2008-2019 Food Equipment Technologies Company
This user guide describes GR-1 &GR-2 models manufactured after 2010. Please refer to User Guide P010 for models previous to 2010
Coffee Grinders GR-1 and GR-2 Series
User's Guide and Operator Instructions
FETCO Commercial Beverage Equipment
Product Description
fetco.com
Please refer to User Guide P160 for FETCO CE International GR-1 and GR-2 models
Right: GR-2.3 Three recipe-dual 5 pound capacity hopper commercial grinder
FETCO slicing type grinding burrs
Self-adjusting brew basket holder
Fully automatic, with digital timer control
Front accessible & Service Friendly
Motor overload protection
Control board overload protection
Internet: www.fetco.com
Phone: (800) 338-2699 (US & Canada)
(847) 719-3000
Fax: (847) 719-3001
Email: sales@fetco.com
techsupport@fetco.com
Features
P185 March 2019
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Fetco GR Series
Summary of Contents for Fetco GR Series
- Page 1 This user guide describes GR-1 &GR-2 models manufactured after 2010. Please refer to User Guide P010 for models previous to 2010 Please refer to User Guide P160 for FETCO CE International GR-1 and GR-2 models Coffee Grinders GR-1 and GR-2 Series...
-
Page 2: Table Of Contents
Brew Basket Size: 7” to 9” diameter Plug/cord set per country electrical Grind rate is determined at medium grind with medium size, average to dark roast beans Dimensions & Utility Connections Go to fetco.com for the latest versions of all information Page 2 P185 MARCH 2019... -
Page 3: Installation
Both hoppers with their covers must be in place before operating the grinder. 3. Place the brew basket with paper coffee filter in the plastic holding arms. The plastic arms will hold all FETCO brew baskets up to 16” X 6”; and will fit most other manufacturers’ brew baskets. -
Page 4: Principles Of Operation
The power/stop switch is used only when it is necessary to interrupt the grind cycle before the cycle is finished. Grinder Foreign Object Protection FETCO coffee grinders feature two types of overload protection to prevent damage to the unit if a foreign object enters the grinding chamber and stalls the motor. -
Page 5: Programming Instructions
1.1 – 1.44 kg. 130 -170 sec. Grind times are affected by conditions of the coffee beans such as: age, size, oily or dry, and degree of roast. Go to fetco.com for the latest versions of all information Page 5 P185 MARCH 2019... -
Page 6: Parts
Parts Figure 1 – GR-1.2 & GR-1.3 Go to fetco.com for the latest versions of all information Page 6 P185 MARCH 2019... - Page 7 TEMPLATE, SN LABEL, FETCO PRODUCTS 1046.00009.00 LABEL "GR PROGRAMMING" 1402.00010.00 ELECTRICAL HARNESS, GR 2 1046.00035.00 LABEL, WARNING "TO REDUCE RISK OF ELECTRIC SHOCK OR FIRE" Go to fetco.com for the latest versions of all information Page 7 P185 MARCH 2019...
- Page 8 Figure 2 – GR-2.2 & GR-2.3 Go to fetco.com for the latest versions of all information Page 8 P185 MARCH 2019...
- Page 9 1063.00028.00 CORD, SOUTH AFRICA , 6.5FT 1043.00036.00 LABEL, 4" X 3" SERIAL NUMBER, GR-2.3 1046.00035.00 LABEL, WARNING "TO REDUCE RISK OF ELECTRIC SHOCK OR FIRE" Go to fetco.com for the latest versions of all information Page 9 P185 MARCH 2019...
- Page 10 NUT, HEX, 1/4"-20 1102.00035.00 PLATE ASSEMBLY, GRINDER MOTOR 1102.00037.00 COMPLETE GRINDING MOTOR ASSEMBLY, 120VAC/60Hz 1000.00078.00 COMPLETE GRINDING MOTOR ASSEMBLY, 230VAC/50Hz 1087.00003.00 PIN, SLOTTED SPRING, M3x14mm Go to fetco.com for the latest versions of all information Page 10 P185 MARCH 2019...
- Page 11 GUILLOTINE, GR-2 1085.00003.00 SPRING, EXPANSION, 3/8"OD X .026"W X 1.375"L, 0.60 LB/IN 1097.00013.00 BUMPER, 1/2" DIA, FLAT TOP, ADHESIVE BACKED, BLK 1023.00043.00 LID, HOPPER, GR-2 Go to fetco.com for the latest versions of all information Page 11 P185 MARCH 2019...
-
Page 12: Wiring Diagrams
Wiring Diagrams GR-1 Effective February 2019 Go to fetco.com for the latest versions of all information Page 12 P185 MARCH 2019... - Page 13 GR-2 Effective February 2019 Go to fetco.com for the latest versions of all information Page 13 P185 MARCH 2019...
