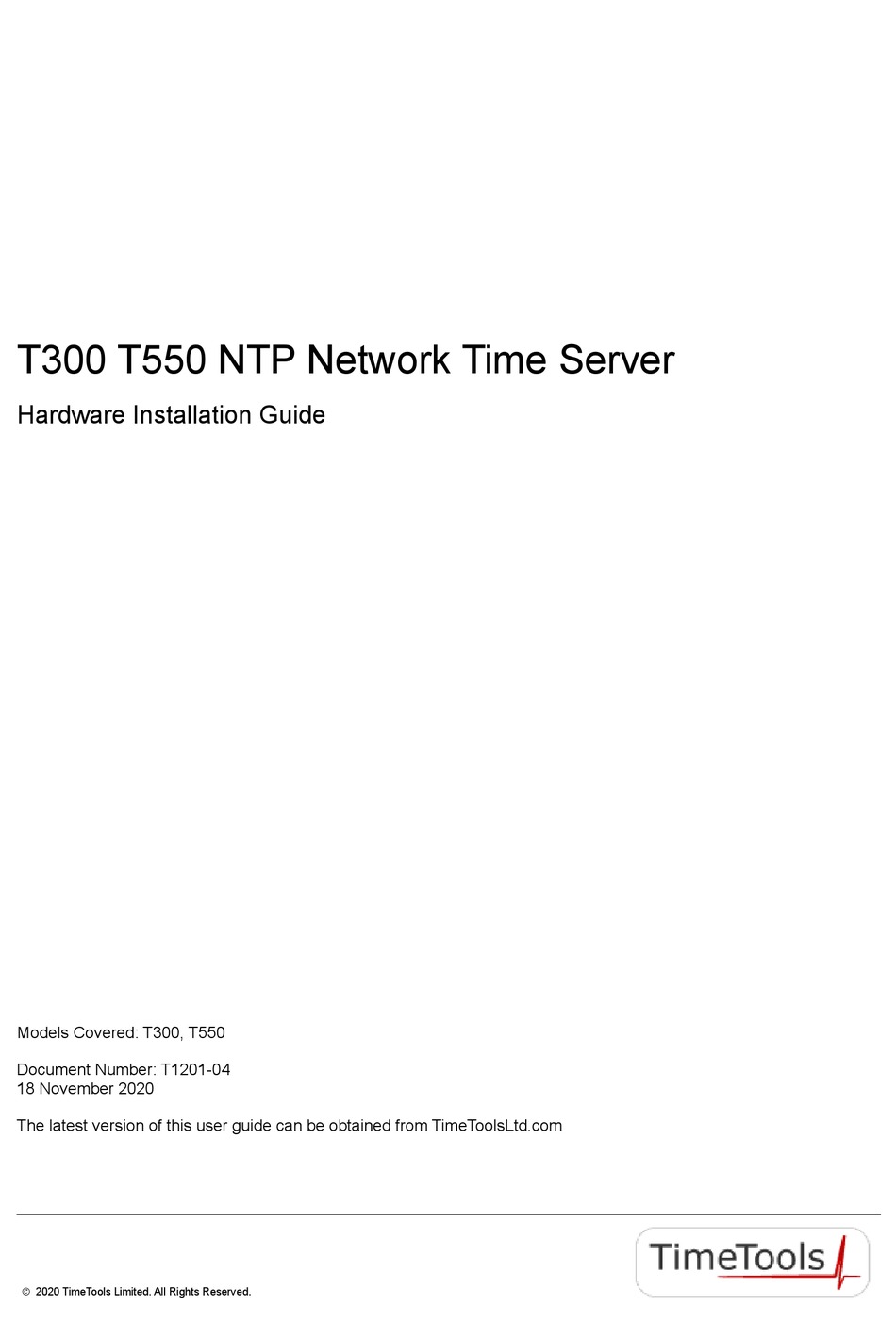

- Page 1 T300 T550 NTP Network Time Server Hardware Installation Guide Models Covered: T300, T550 Document Number: T1201-04 18 November 2020 The latest version of this user guide can be obtained from TimeToolsLtd.com 2020 TimeTools Limited. All Rights Reserved.
- Page 2 T300 T550 Hardware Installation Guide. Page 2 Revision History Date Doc. Rev. Changes 27-Jan-17 T1201-01 Initial release. 01-Apr-19 T1201-02 TimeTools Limited postal address change. Updated EC Declaration Of Conformity. 09-Sep-20 T1201-03 Updated warranty terms. 18-Nov-20 T1201-04 Added validation of reliable earthing caution.
- Page 3 T300 T550 Hardware Installation Guide. Page 3 Important Safety Information: Important Safety Information - Read the safety instructions before using this product. 1. Please read the manuals and retain for future reference. Please follow all instructions and heed all warnings.
- Page 4 Full product documentation can be found at TimeToolsLtd.com. While reasonable efforts have been taken in the preparation of this document to ensure its accuracy, TimeTools Limited assumes no liability resulting from any errors or omissions in this manual, or from the use of the information contained herein.
-
Page 5: Table Of Contents
T300 T550 Hardware Installation Guide. Page 5 Table of Contents 1. Introduction..............................6 2. Key Features.............................. 6 3. Scope of Supply............................7 3.1. Optional Extras................................ 7 4. Front Panel ..............................8 4.1. LCD Display................................8 4.2. Alarm Indicator................................. 8 4.3. USB Port.................................. 8 5. -
Page 6: Introduction
Network Time Protocol (NTP) can be used to synchronize the time on network clients, across an IP network, to the correct time of an NTP time server. TimeTools NTP Servers provide a stratum 1 NTP Time Server for ensuring the time is correct across an entire network. -
Page 7: Scope Of Supply
T300 T550 Hardware Installation Guide. Page 7 3. Scope of Supply TimeTools T300 T550 shipment typically includes the following components: T300 Models: T300 NTP Time Server Appliance. T-3040 GPS Antenna. T550 Models: T550 NTP Time Server Appliance. T-3740 GNSS Antenna. -
Page 8: Front Panel

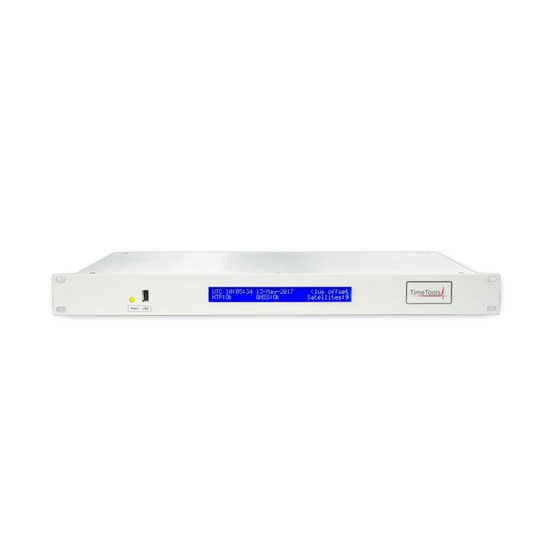

4.1. LCD Display The T300 T550 are fitted with two line by 40 character ultra-bright backlit LCD displays for providing status and configuration information to the user. The display typically shows current time, system time offset compared to reference clock, NTP status, GPS status and number of satellites currently in use. -
Page 9: Rear Panel
T300 T550 Hardware Installation Guide. Page 9 5. Rear Panel The rear panel of the T300 T550 models have the following connectors: Power, Eth0, Eth1 (T550 only) , Antenna, Console. 5.1. Power Inlet Power to the appliance is applied via the double-fused IEC power entry inlet. The appliance accepts 100-240 VAC, 50- 60Hz 0.1A. - Page 10 T300 T550 Hardware Installation Guide. Page 10 Connector: TNC female, 50 ohm Cable: Coax, 50 ohm Antenna Output Voltage: 5VDC 2020 TimeTools Limited. All Rights Reserved.
-
Page 11: Installation
Connect one end of a CAT-5 patch cable to the RJ-45 network interface on the rear of the T300 T550. Connect the other end to a port on your network switch. -
Page 12: Connecting Rs232 Serial Console Cable
6.4. Connecting RS232 Serial Console Cable The T300 T550 Console port is a RS232 serial port on a standard 9-way D-type connector. The console serial port can be used configure the device from a host PC. Using the supplied null modem cable, connect the T300 T550 console port to the RS232 serial port on a PC. -
Page 13: Configuration
DHCP server for dynamic networking configuration. The T300 T550 can be configured in any one of three ways: Over a network using a web browser on a PC connected to the same network segment. -
Page 14: Certification And Compliance
REACH Regulation (EC) No 1907/2006 TimeTools hereby certifies that to the best of its knowledge, and based on our suppliers’ information, parts and products produced by TimeTools do not contain any of the substances referenced in the current list of Substances of High Concern (SVHCs are defined in Article 57 of Regulation (EC) No 1907/2006.) in concentrations greater than 0.1% weight... - Page 15 T300 T550 Hardware Installation Guide. Page 15 EU Declaration Of Conformity Product: NTP Network Time Server Model Numbers: T300, T550 Serial Number: TA51001, 301755 Manufacturer Address: TimeTools Limited. 2 Silverend Business Park, Brettell Lane, Brierley Hill. DY5 3LG. UK. This declaration of conformity is issued under the sole responsibility of the manufacturer.
-
Page 16: Warranty
TimeTools Solutions Service Centre. This Warranty does not apply if repairs are required due to acts of nature beyond TimeTools’ control such as, but not limited to, lightning strikes, power surges, misuse, damage, neglect, or if repairs/modifications have been made or attempted by anyone other than personnel authorized by TimeTools. - Page 17 T300 T550 Hardware Installation Guide. Page 17 TimeTools Limited. Tel: +44 (0) 1902 897400 2 Silverend Business Park, Fax: +44 (0) 870 123 1844 Brettell Lane, Email: info@TimeToolsLtd.com Brierley Hill. DY5 3LG. Web: TimeToolsLtd.com 2020 TimeTools Limited. All Rights Reserved.
