Summary of Contents for ParTech MIGRO ARAY

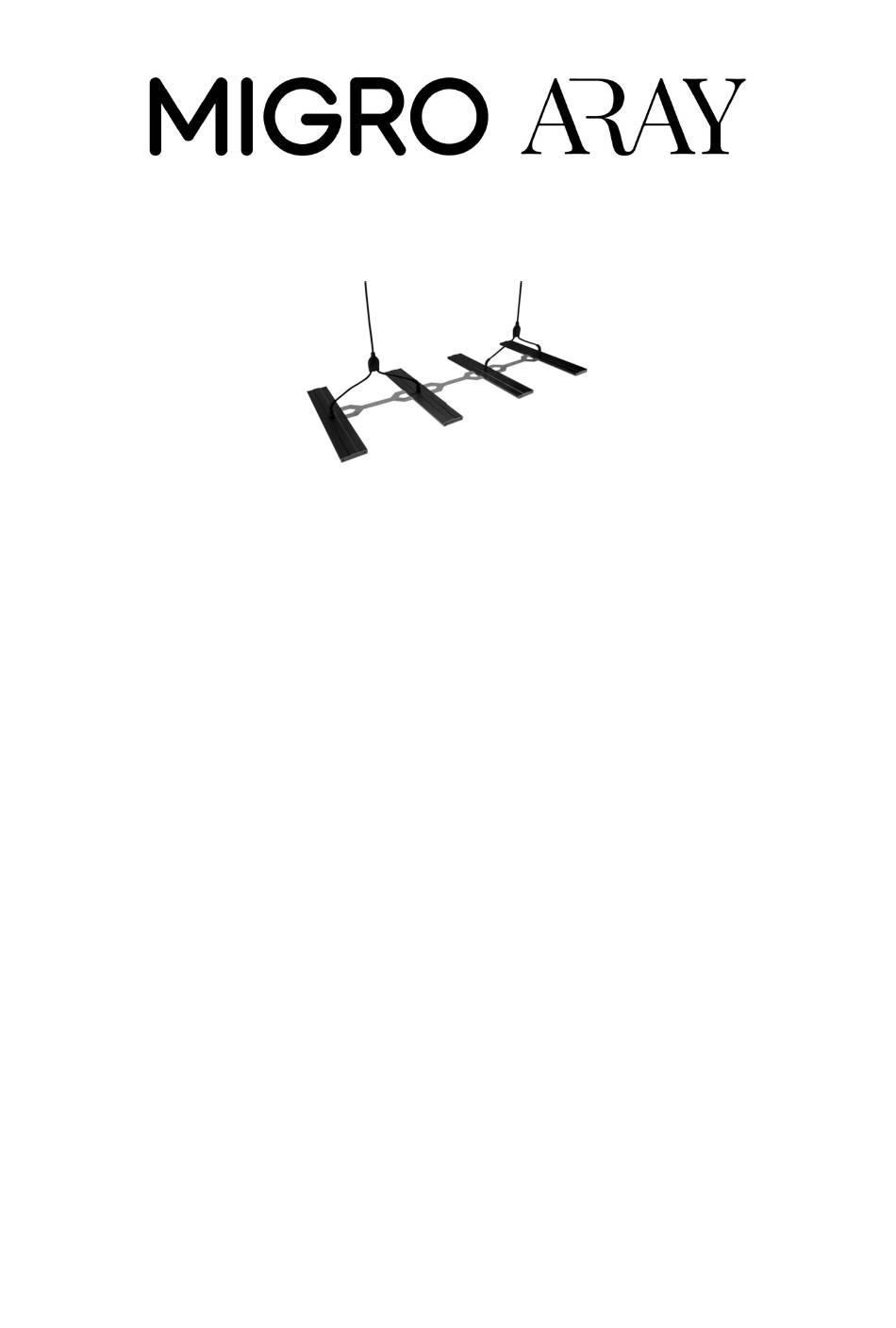

- Page 1 Instruction manual and datasheet CULTIVATING HAPPINESS Follow us @migrolight www.migrolight.com STOP - Please read all these instructions carefully especially the safety section before unboxing and assembling Contents ● Safety ●...
- Page 2 damage the grow light and/or cause a fire. Do not put the grow light down on any surface when the light is on. The light intensity and radiated heat may damage the surface. By Partech LED Ltd www.migrolight.com...
-
Page 3: Setup Instructions
Attach the cable grip to each power cable just above the cable splitter. One the cable grip is attached to the cable then attach the ratchet hanger to the cable grip By Partech LED Ltd www.migrolight.com... - Page 4 It’s ok : ) The light spread is even at any angle of rotation Optimum hanging height 20cm/8” 16cm/6” By Partech LED Ltd www.migrolight.com...
- Page 5 Growth rates at higher PPFD levels do not justify the extra energy cost and heat output and the plants require additional CO₂ to utilise the high PAR intensity Light Intensity PAR charts By Partech LED Ltd www.migrolight.com...
- Page 6 By Partech LED Ltd www.migrolight.com...
- Page 7 By Partech LED Ltd www.migrolight.com...
- Page 8 By Partech LED Ltd www.migrolight.com...
- Page 9 Light Spectrum By Partech LED Ltd www.migrolight.com...
- Page 10 By Partech LED Ltd www.migrolight.com...
-
Page 11: Hardware Overview
The small LEDs (surface mounted diodes, SMDs) are delicate and can be easily damaged. Take care putting them down and during assembly. They are protected from water and dust with a conformal coating so they can be wiped clean of dust and dirt. By Partech LED Ltd www.migrolight.com... - Page 12 5cm or 2” clearance on three sides of the heatsink. The heatsink is a ‘fast flow’ passive heatsink allowing air to move quickly over the heatsink surface and remove the heat at a high rate. By Partech LED Ltd www.migrolight.com...
-
Page 13: Maintenance

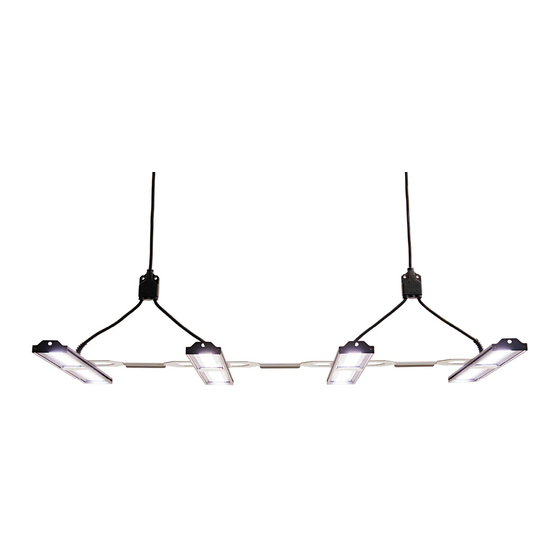

Doing so may damage the finish of the product and the LEDs. General specifications The MIGRO ARAY 120W module is a II bar LED grow light with a single driver and a 3.5M long cable. ... - Page 14 ■ Light fixtures: 2 x MIGRO LED bar grow lights ■ Driver: 1 x MIGRO driver ■ Cables: 3.5M cable ■ Plug: UK, US, Euro, Swiss or AUS plug options ■ Dimming: In built dimmer 10-100% ■ Hanger: 1 x Cable hanger By Partech LED Ltd www.migrolight.com...
- Page 15 The MIGRO ARAY 240W module is a IIII bar LED grow light with a single driver and a 3.5M long cable. ● Flowering coverage: up to 120cm x 60cm (4ft x 2ft) ...
- Page 16 ■ Dimming: In built dimmer 10-100% ■ Hanger: 2 x Cable hangers Contact for technical support Email: nfo@migrolight.com Website: ww.migrolight.com Youtube: MIGRO channel - optimise your grow light setup Telephone: 00 353 (0)1 8245716 By Partech LED Ltd www.migrolight.com...
