Intertec Data Systems E-56CF Installation Instructions

Toll Free: 1-800-682-3398
Ph. 423-477-4131
www.tpicorp.com
IMPORTANT: READ AND SAVE THESE INSTRUCTIONS. Read carefully before at­
tempting to assemble, install, operate or maintain the product described. Protect
yourself and others by observing all safety information. Failure to comply with
instructions could result in personal injury and/or property damage! Retain instruc­
tions for future reference.

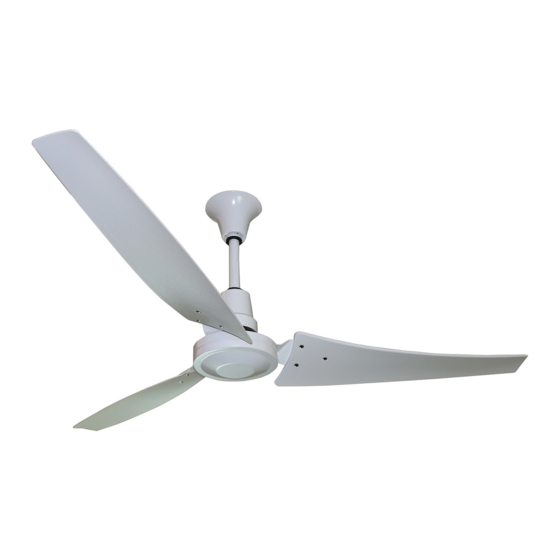

Water and Dust Resistant Models
Grade Model
Industrial E-56CF
Industrial
E-60CF
General Safety Information
I I
Disconnect power
W ARNIN G
A
supply before wiring
connections are made to prevent possible
electric shock or damage to
I I
� ead an _ d follo w
A W ARNIN G
�- -----�- instructions carefully.
Failure to comply with instructions could
result in fire, electric shock, injury
persons and/or damage to
I I
Follo w all
CAUTION
A
maintenance
procedures enclosed.
Failure
A DANGER
ground unit could
result in severe electrical shock or death.
Printed in China
TPl2020
Version 1
01/2020

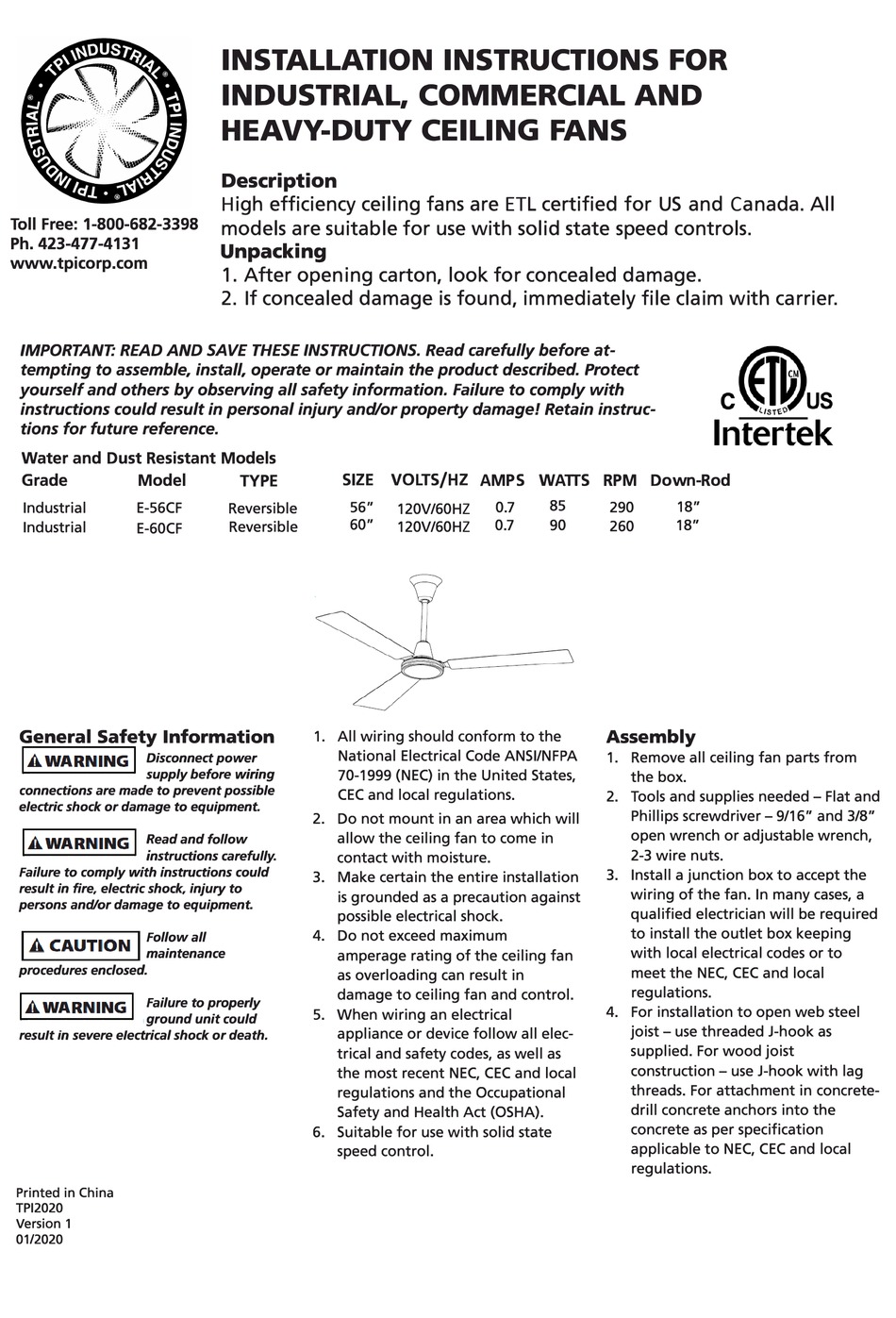

INSTALLATION INSTRUCTIONS FOR
INDUSTRIAL, COMMERCIAL AND
HEAVY-DUTY CEILING FANS
Description
High efficiency ceiling fans are ETL certified for US and Canada. All
models are suitable for use with solid state speed controls.
Unpacking
1. After opening carton, look for concealed damage.
2. If concealed damage is found, immediately file claim with carrier.
SIZE VOLTS/HZ AMPS WATTS RPM Down-Rod
TYPE
56"
Reversible
60"
Reversible
1. All wiring should conform to the
National Electrical Code ANSI/NFPA
70-1999 (NEC) in the United States,
CEC and local regulations.
equipment.
2. Do not mount in an area which will
allow the ceiling fan to come in
contact with moisture.
3. Make certain the entire installation
to
is grounded as a precaution against
equipment.
possible electrical shock.
4. Do not exceed maximum
amperage rating of the ceiling fan
as overloading can result in
damage to ceiling fan and control.
to properly
5. When wiring an electrical
appliance or device follow all elec­
trical and safety codes, as well as
the most recent NEC, CEC and local
regulations and the Occupational
Safety and Health Act (OSHA).
6. Suitable for use with solid state
speed control.
85
0.7
120V/60HZ
0.7 90
120V/60HZ
290 18"
18"
260
Assembly
1. Remove all ceiling fan parts from
the box.
2. Tools and supplies needed - Flat and
Phillips screwdriver - 9/16" and 3/8"
open wrench or adjustable wrench,
2-3 wire nuts.
3. Install a junction box to accept the
wiring of the fan. In many cases, a
qualified electrician will be required
to install the outlet box keeping
with local electrical codes or to
meet the NEC, CEC and local
regulations.
4. For installation to open web steel
joist - use threaded J-hook as
supplied. For wood joist
construction - use J-hook with lag
threads. For attachment in concrete­
drill concrete anchors into the
concrete as per specification
applicable to NEC, CEC and local
regulations.
