Dometic 2AUML-RF17 Installation And Operation Instructions

AWNINGS
FCC ID: 2AUML-RF17

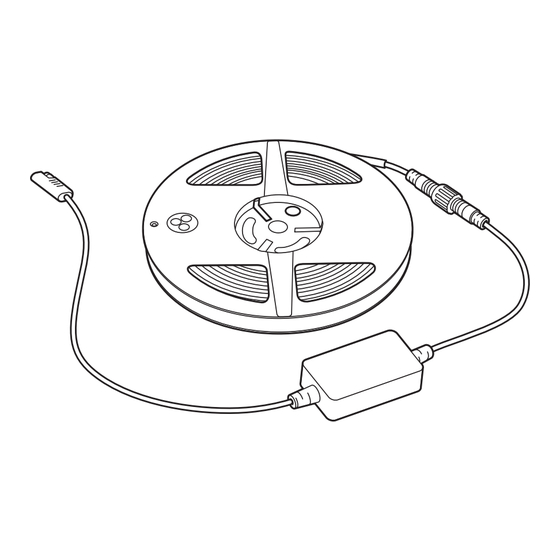

RGB LED Controller & RF Wireless Remote
EN
Installation and Operation Instructions . . . . . .1

1 Features

• 22 Dynamic Modes
• 20 Static Colors
• Very Smooth Effects
• Adjustable Speeds
• Adjustable Brightness

2 Installation

This section provides the installation information for the RGB LED.

2.1 Power Supply

This unit accepts 11 VDC to 14 VDC power supply. The DC
plug's inner pole (or red cable) is positive and sleeve (or black
cable) is negative.
• Card Type RF Remote
• Ultra Slim Design
• Dynamic Demo Mode
• Easy Remote Pairing
• Direct Color Select
Form No.: 3317228.000_B 5/19 | ©2019 Dometic Corporation
2.2 LED Output
This unit supports common anode connection LED products.
The peak output current is 6 A and maximum rated current
is 3 A per channel. Please reduce the load if the main unit is
overheating.
NOTICE: Do not short circuit or overload the outputs, this
may lead to permanent damage.

3 Operation

This section provides the information for the operation of the
remote controller and the RGB LED.
3.1 Using the Remote Controller
Remove the battery insulation tape before using. The RF
Wireless remote signal can pass through barriers, and it is not
necessary to aim at the main unit during operation. Do not
install the main unit in closed metal areas.
3.2 Pairing a New Remote
The remote and main unit is not paired as default. The main
unit can be paired to any remote controller and each remote
controller can be paired to any main unit. To pair a new remote
controller:
1. Turn the power off to the main unit. Wait 10 seconds. Turn
the power to the main unit on.
2. Press the COLOR – and BRIGHT – keys together within 10
seconds after returning power to the main unit. Hold the
buttons down until the LED light flashes briefly. Pairing is
now complete.
After this operation, the main unit will recognize the new
remote controller
3.3 Cold Weather Use
In temperatures below 50°F (10°C), there may be a
discoloration of the white light. The light will return to normal
when the temperature increases.
